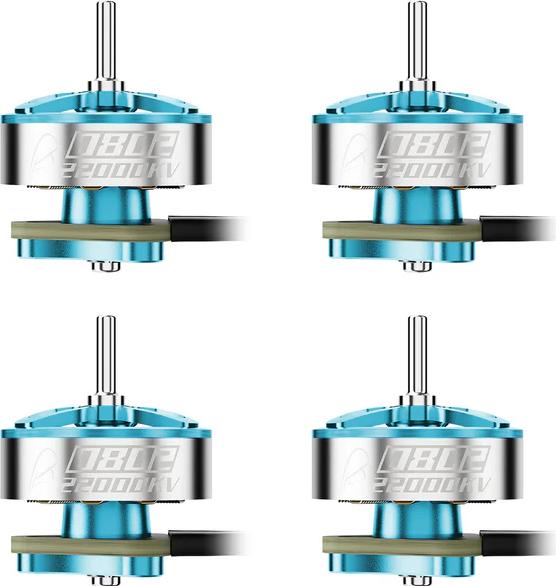

Brushless Motor 0802-22000kV II Freestyle (4)
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
|
|
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
22000 KV RPM/Volt
Motor Kv:

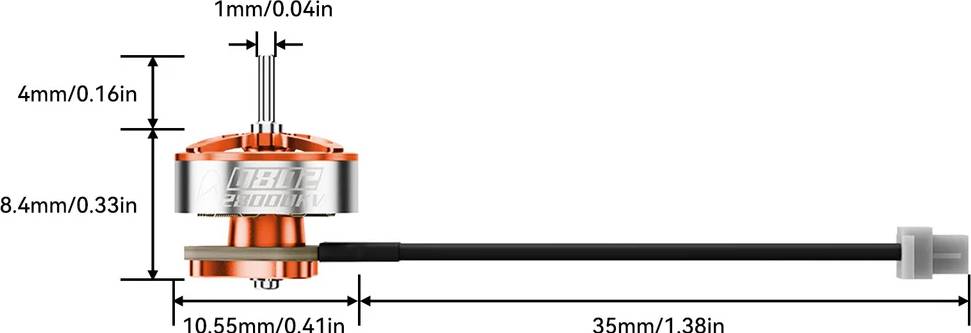

0.41 in
Can Diameter:
0.33 in
Can Length:
0.04 in
Shaft Diameter:
0.16 in
Shaft Length:
1.88 g
Weight:
5.90 A
Max Current:
22.73 W
Watts:
4.2 V
Max Voltage:
click image to enlarge
ADDITIONAL PHOTOS
|
01050026_3
