Includes

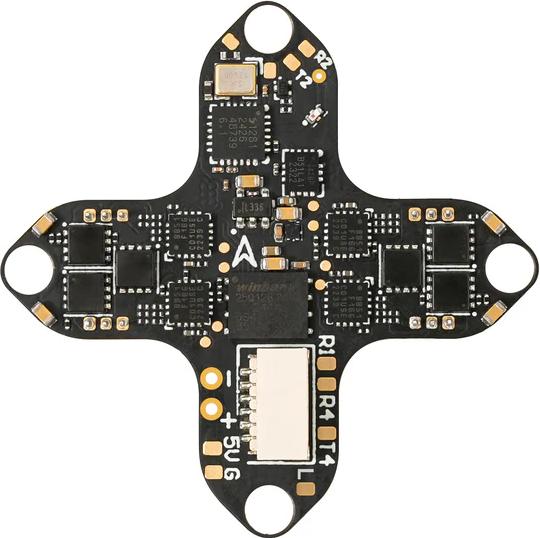

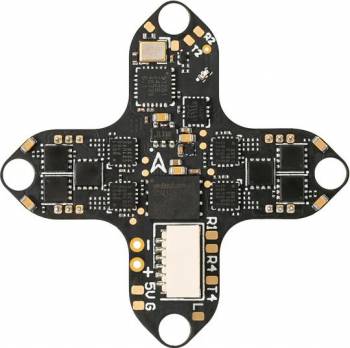

- 1 * Matrix 1S Brushless Flight Controller (3IN1)
- 1 * Type-C to SH1.0 Adapter
- 1 * SH1.0-4Pin Adapter Cable
- 1 * SH1.0-6Pin Adapter Cable
- 4 * M1.2*4 Self-tapping Screws
- 4 * M1.4*5 Self-tapping Screws
- 4 * Shock Absorbing Balls
Bullet Points
- Dual DNA: 3IN1 (FC, ESC, and ELRS 2.4G RX) for DJI O4 digital dominance (omits analog OSD), 4IN1 for analog mastery with OSD.
- STM32G473 MCU: 55% faster processing than F411 for responsive tuning.
- Stable Video Transmission: Features a newly developed BEC to ensure consistent power delivery for seamless HD performance.
- Enhanced Overcurrent Capacity: Supports 12A continuous current and 18A peak ESC, providing robust performance for demanding flights.
- Reliable Precision: Includes an independent 3.3V LDO design to deliver stable, interference-free power directly to the IMU for accurate control.
- Whoop-ready Installation: The 3IN1 is equipped with motor plugs and a SH1.0-6Pin HD digital port for a hassle-free installation and maintenance experience, while the 4IN1 has external VTX soldering pads for protocol flexibility.
Specifications
- MCU: STM32G473CEU6 (168MHz)
- Gyro: ICM42688P
- Blackbox Memory: 16MB
- Sensor: Voltage & current
- BEC: 5V/3A
- UART (3IN1 Version): UART 1 (RX Only/SBUS), UART 2 (Free), UART 3 (For RX), UART 4 (Free/HD MSP)
- UART (4IN1 Version): UART 1 (For VTX), UART 2 (Free), UART 3 (For RX), UART 4 (NONE)
- ESC: 12A continuous
- RX: Serial ELRS 2.4GHz (V3.4.3)
- FC Firmware: Betaflight_4.5.1_BETAFPVG473 (3IN1 version), Betaflight_4.5.2_BETAFPVG473_V2 (4IN1 version)
- USB Port: SH1.0-4Pin
- OSD: AT7456E (4IN1 version only)
- HD Digital VTX Port: SH1.0-6Pin (3IN1 version only)
- Motor Plug: JST1.25-3Pin
- Battery Connector: BT2.0
- Mounting Size: 25.5mm x 25.5mm
- Weight (3IN1 Version): 3.8±0.1g (battery connector excluded), 4.2±0.1g (battery connector included)
- Weight (4IN1 Version): 3.6±0.1g (battery connector excluded), 4.6±0.1g (battery connector included)
ESC
- Power Input: 1S only
- Current: 12A continuous, 18A peak
- ESC Firmware: A_X_5_96_v0.19.2.hex for BB51 Bluejay firmware
- Digital Signal Protocol: DSHOT300, DSHOT600
Ultra-Resilient BEC
1S whoops often fly at voltages as low as 3.3V and digital image transmission requires higher current, placing significant demands on the BEC. To meet these challenges, an advanced BEC has been developed, capable of delivering over 3A of current at ultra-low voltages down to 2.85V. This ensures stable image transmission even in critical situations. While flying to such low voltages isn't recommended, this innovation provides pilots with a greater chance of safely recovering from unexpected situations.
Enhanced Continuous 12A ESC
Whether powering digital HD systems or high-performance analog builds, 1S whoops demand ESCs that won’t flinch. Our engineers exceeded expectations, delivering a robust ESC with 12A continuous output and 18A peak capacity on the iconic "cross" flight controller. This ensures optimal thrust-to-weight ratio, reliable performance, and worry-free high-definition flights.
Individual Power Supply for IMU
Unlike traditional shared power supply designs, the Matrix 1S FC features an independent 3.3V LDO power supply exclusively for the IMU. This innovation eliminates interference, creating a cleaner and more stable environment that enhances flight precision, improves sensitivity, and reduces the risk of performance issues—ensuring unmatched stability during every flight.
