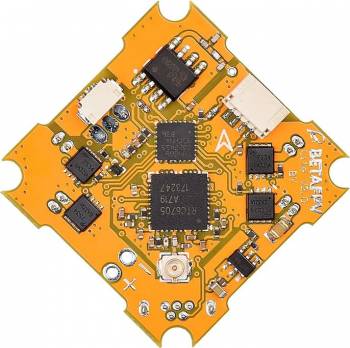

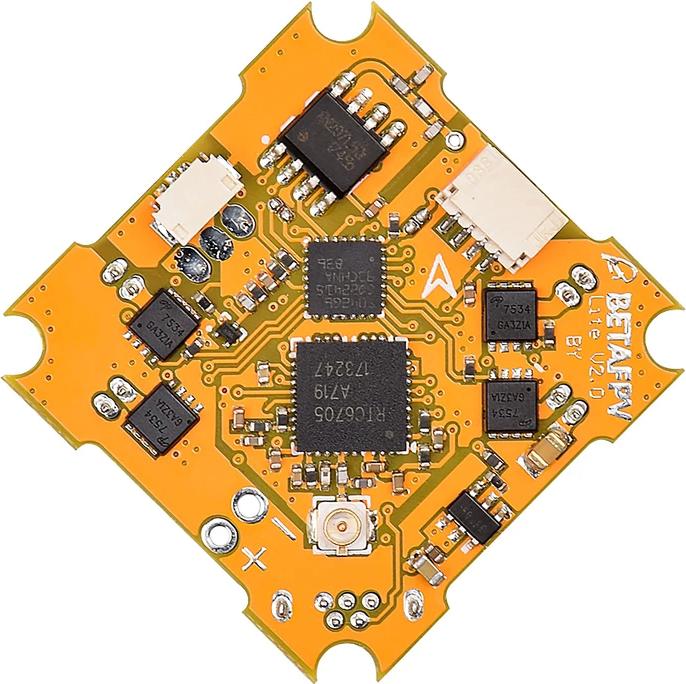

BETAFPV Lite Brushed Flight Controller

Product Info | Fits What?
BETAFPV

BTA00313125
BETAFPV Lite Brushed Flight Controller
By BETAFPV
FREE SHIPPING over $99
Details »
Discontinued
Click to Enlarge
click to enlarge

More like this... Multirotor Helicopters, Flight Control Systems
But only from... BETAFPV
All items from... BETAFPV


 Inventory Status Legend
StockStock availability for on-line ordering
0
$26.99
Warehouse ?
StockStock availability for pick up
0
$26.99
Warehouse ?
0
$26.99
Store - Stratford ?
0
$26.99
Store - Edmonton ?
0
$26.99
Store - Mississauga ?
0
$26.99
Store - Ottawa ?
0
$26.99
Store - Oshawa ?
0
$26.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
FEATURES
  • The world's first FC board compatible with Silverware firmware. This must be the most simple and affordable method to try whoop FPV racing hobby.
  • Support level mode and acro mode. Also it has the ability to change settings for custom builds, or to adapt to personal preferences by stick gestures.
  • Designed to work with current Tiny Whoop or Blade Inductrix frames
  • Built in Bayang protocol native receiver, compatible with almost radio transmitter with deviation firmware or deviation compatible transmitter module
  • The flight controller board comes pre-flashed with Silverware firmware, and pre-soldered 55mm power cable pigtail with JST-PH 2.0 connector, AKA PowerWhoop connector.
  • Add LiteOSD information and OSD Menu.
  • Support firmware upgrade in DFU mode via USB port.
  • Integrate an altitude sensor ( altitude hold function is NOT available now).
  • 2 RGB LEDs

The world's first FC board compatible with Silverware firmware. This must be the most simple and affordable method to try whoop FPV racing hobby.
Support level mode and acro mode. Also it has the ability to change settings for custom builds, or to adapt to personal preferences by stick gestures.
Designed to work with current Tiny Whoop or Blade Inductrix frames
Built in Bayang protocol native receiver, compatible with almost radio transmitter with deviation firmware or deviation compatible transmitter module
The flight controller board comes pre-flashed with Silverware firmware, and pre-soldered 55mm power cable pigtail with JST-PH 2.0 connector, AKA PowerWhoop connector.

 Specifications

  •     CPU: STM32F042
  •     Six-Axis: MPU6050
  •     ESC: All FETs are rated at 6.3A maximum. Support 6x15mm/7x20mm/8x20mm/8.5x20mm etc motors.
  •     Size: 26mm x 26mm, fully compatible with the Inductrix quad frame and mounting pattern
  •     Firmware version: Silverware firmware
  •     Receiver: Bayang protocol
  •     Power Cable: 55mm, with JST-PH 2.0 connector, AKA PowerWhoop connector
  •     Weight: 2.5g


Silverware & LiteOSD

Silverware is a firmware for some micro quadcopters, which support level mode and acro mode. So you could use this on whoop FPV racing. Also it has the ability to change settings for custom builds, or to adapt to personal preferences.

LiteOSD is also integrated in the V2 board. So that you could setup many configrations according to your own preference easily. The method of entering OSD Menu on Lite Brushed FC is same as Betaflight. Make sure the drone is disarmed when entering OSD Menu on Lite 1S Brushless FC.

 Supported Radio Transmitter

Currently the built-in receiver is compatible with Bayang protocol. Here is a listing of radio transmitter that could be compatible with this FC board.

click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
740807449892 0740807449892
00313125
