BLH8980

Mach 25 FPV Racer BNF Basic

Product Info | Required Items | Replacement Parts
BLADE

BLH8980
Mach 25 FPV Racer BNF Basic
By BLADE
FREE SHIPPING over $99
Details »
Discontinued
Click to Enlarge
click to enlarge

More like this... Multirotor Drone, ARF Racing Drones
But only from... BLADE
All items from... BLADE


 Inventory Status Legend
StockStock availability for on-line ordering
0
$316.99
Warehouse ?
StockStock availability for pick up
0
$316.99
Warehouse ?
0
$316.99
Store - Stratford ?
0
$316.99
Store - Edmonton ?
0
$316.99
Store - Mississauga ?
0
$316.99
Store - Ottawa ?
0
$316.99
Store - Oshawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
Best selling related parts, options and upgrades...
Frame Set Mach 25 FPV
$59.99

Motor Mounts Mach 25 FPV
$14.99

Body Post/Grommet Set Mach 25 FPV
$8.99

Camera Mount Mach 25 FPV
$14.99
LED Set Mach 25 FPV
$14.99

Body Set Mach 25 FPV
$26.99

Arms (4) Mach 25 FPV
$18.99

LED Cover Set (4) Mach 25 FPV
$8.99
SPECIFICATIONS
210 mm
Length:
210 mm
Width:
80 mm
Height:
250 mm
Diagonal:
505 g
Weight:
5+ channel Spektrum 2.4GHz DSM2®/DSMX
Radio Requirements:

FEATURES
  • Fully assembled, no building necessary
  • SAFE® technology makes FPV racing easy
  • Multiple SAFE enabled flight modes
  • Spektrumâ„¢ AR636QR DSMX® quad-racing receiver with pressure sensor
  • Spektrum 25mw ultra micro FPV camera system (installed, Ham Radio License Required)
  • Vibration-damping, carbon-fiber camera mount
  • Powerful 2300Kv brushless outrunner motors
  • Compact Castle Creations 4-in-1 ESC
  • Self-tightening hubs allow tool-free propeller replacement
  • Robust 2mm carbon-fiber frames with tough aluminum frame supports
  • Canted motor mounts for faster acceleration and higher flight speeds
  • Intense, multi-color LED lighting system (installed)
  • E-flite® 1350mAh 3S 11.1V Li-Po flight battery (included)
  • Streamlined body designed by stylist Mirco Pecorari of Aircraft Studio Design

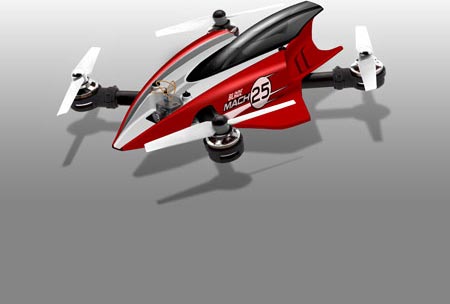

The Blade® Mach 25™ multirotor makes getting into 250-class quad-racing easy. Thick carbon-fiber plate construction with robust aluminum support makes this fully assembled racer lightweight and incredibly durable. In the event of a mishap, replacement of the self-tightening propellers is all you’ll likely need. Brilliant LED lighting helps with orientation and identification in the heat of a race. Powerful motors that are canted forward help give you the performance edge while the protected ultra micro FPV camera is soft mounted for the best view. The streamlined body combines improved aerodynamics with an additional level of protection that makes your Mach 25 machine stand out from the pack.

Exclusive SAFE® (Sensor Assisted Flight Envelope) technology built into the Spektrum AR636QR receiver is a revolutionary electronic flight envelope protection system that makes it easy to stay in control. Multiple flight modes with increasing levels of agility are provided and just a transmitter switch away. From maximum assistance with self-leveling and envelope limitations to full-range aerobatic agility, SAFE technology gives you the ability to get up to speed at your own pace.

Bind-N-Fly® Completion
Now it’s possible to start enjoying high-performance racing virtually the moment you open the box. Just charge the battery, bind the model to your DSMX® technology compatible transmitter and fly.

FPV Ready
The installed Spektrum™ ultra micro, 25mW airborne FPV camera system is mounted to a damped carbon-fiber plate and features excellent range for approved AMA line-of-sight FPV flying. All you need to enjoy the view is a Fat Shark compatible headset or 5.8GHz video monitor.

Carbon-Fiber Frame
Durable, 2.0mm thick, carbon-fiber frame plates surround vital electronics and connect with tough CNC-machined aluminum supports that hold the aluminum motor booms.

Canted Motor Mounts
For quicker acceleration and faster forward flight the four brushless motors are mounted at a forward angle. Its lower flight angle also improves your visibility through the camera.

Self-Tightening Propellers
No tools are required to change out broken props. The self-tightening hubs make changing props quick so that you can get back to racing quicker. The other benefit of the hub design is that it makes the cost of propeller replacement much lower.

Integrated LED Lighting
Brilliant LED lighting in each motor boom helps with your visual orientation and makes it possible to locate your opponent more quickly.

Streamlined Body
To improve aerodynamics and add a level of protection against the elements is a durable body that’s been custom designed by Mirco Pecorari of Aircraft Studio Design.

You will need...

• A full-range 5+ channel, multi-function transmitter with Spektrum™ 2.4GHz DSM2®/DSMX® technology
• A Fat Shark 5.8GHz compatible FPV headset and/or FPV monitor
• A suitable Li-Po flight battery charger
