Enduro Trail Truck RTR Sendero HD Black
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
But only from... ASSOCIATED
All items from... ASSOCIATED
- BTA (Behind The Axle) Steering
- Stealth X Gearbox With Adjustable Overdrive Gears
- Scratch ‘n Weather Paint
- General Grabber X3 Tires
- Reedy Electronics
At the heart of the Enduro is our revolutionary Stealth® X gearbox. Although the exterior appears to have a conventional 3-gear transmission look, the inside is far from conventional. The Stealth® X features the ability to adjust the rear drive ratio independently of the front drive across three levels: stock overdrives the front end 5.7% (installed in RTR), option 1 provides a one-to-one drive ratio front-to-rear (available separately), and option 2 overdrives the front end 11.83% (included with RTR).
Feeding the power to the tires are 3-piece telescopic driveshafts with an extruded aluminum center section, universal front drive axles, and hardened steel ring and pinion gears. With the Enduro drivetrain, delivering useful power will not be an issue.

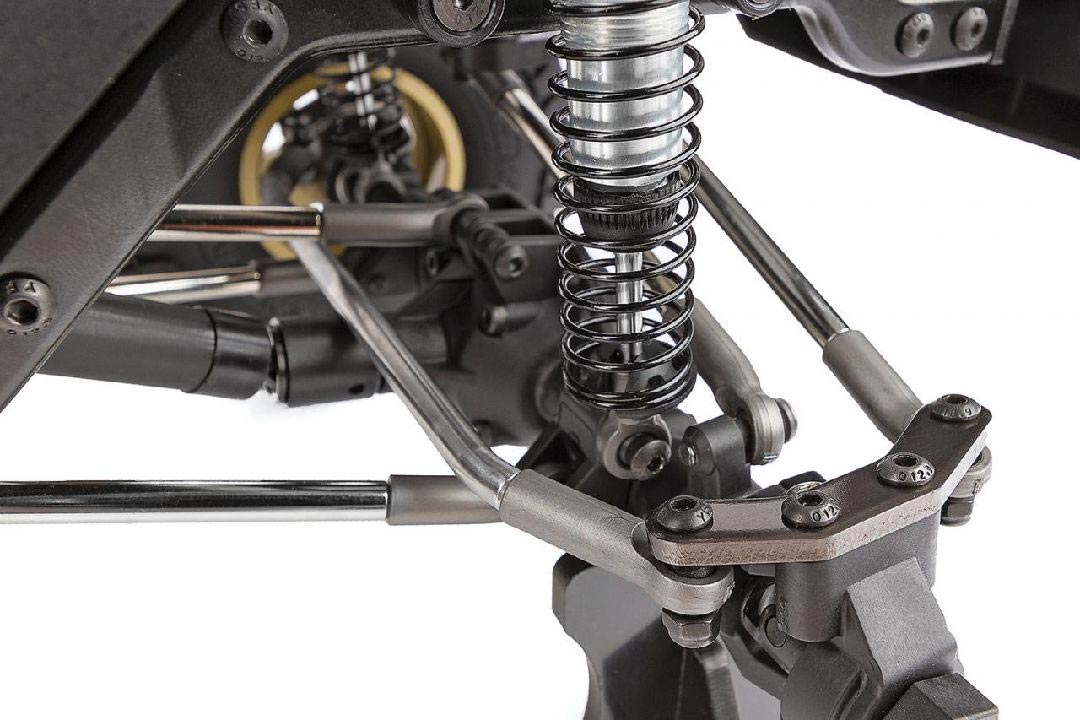

We relocated the steering link assembly from the conventional location to behind the axle (BTA). This feature greatly improves approach angle and front-end clearance, making rough terrain much easier to handle.

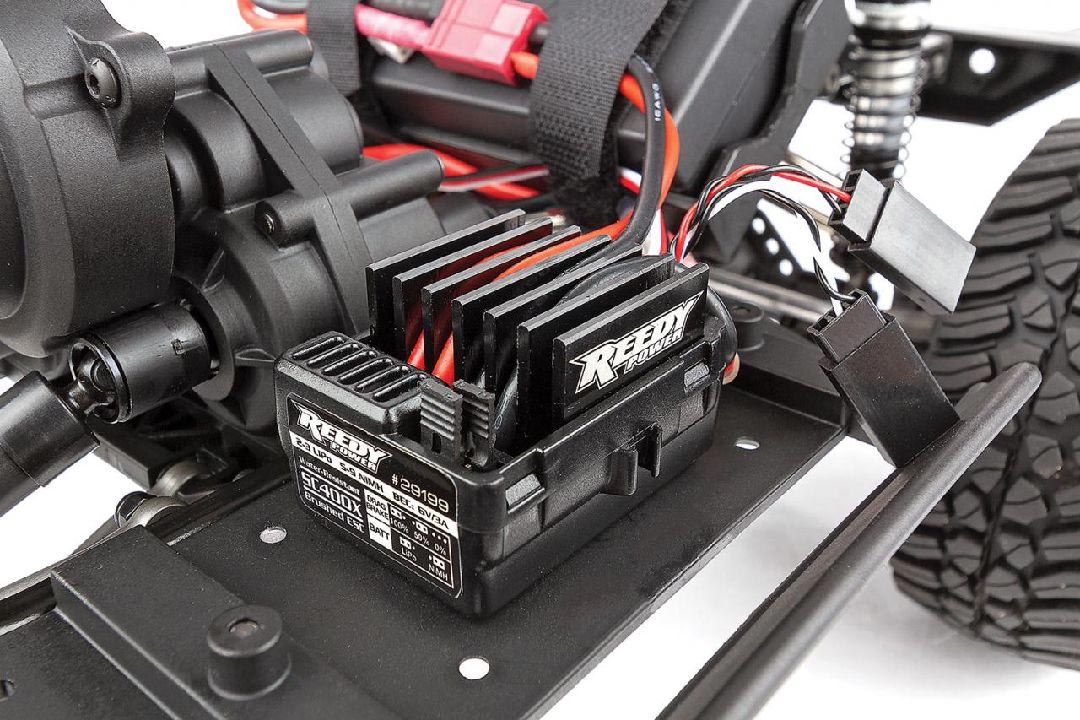

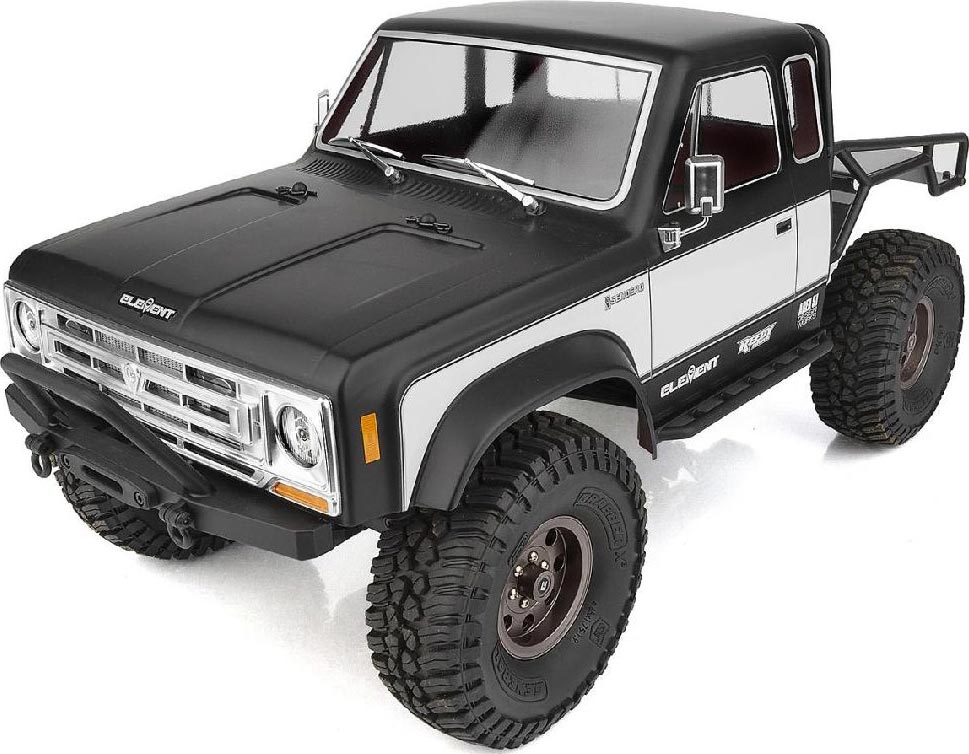

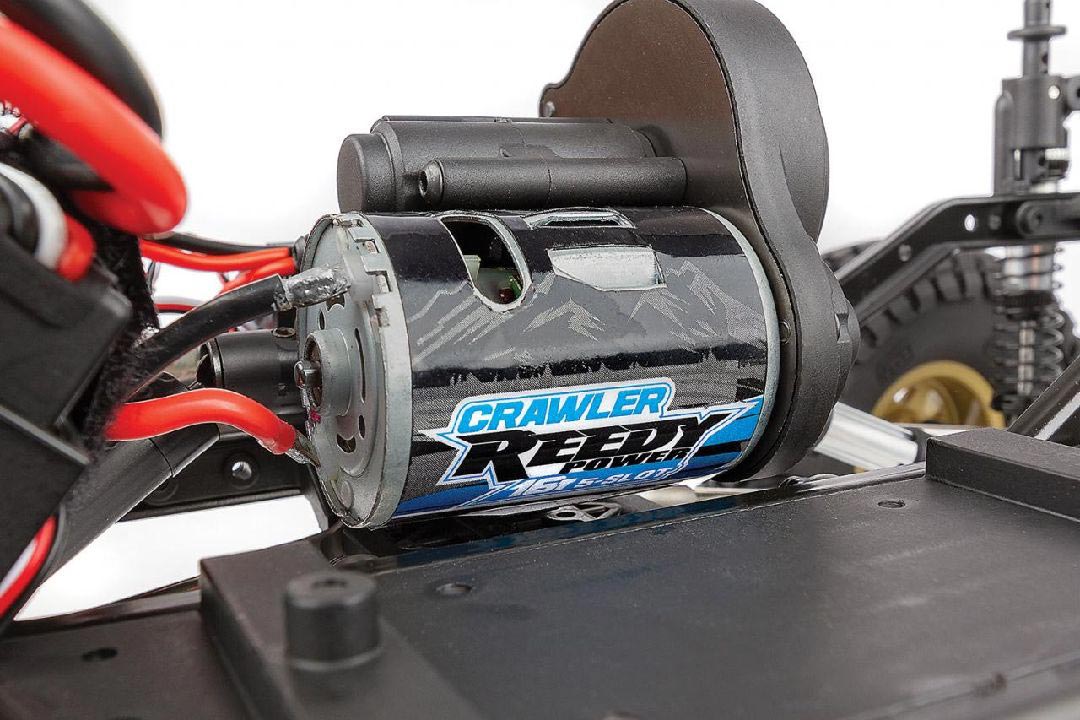

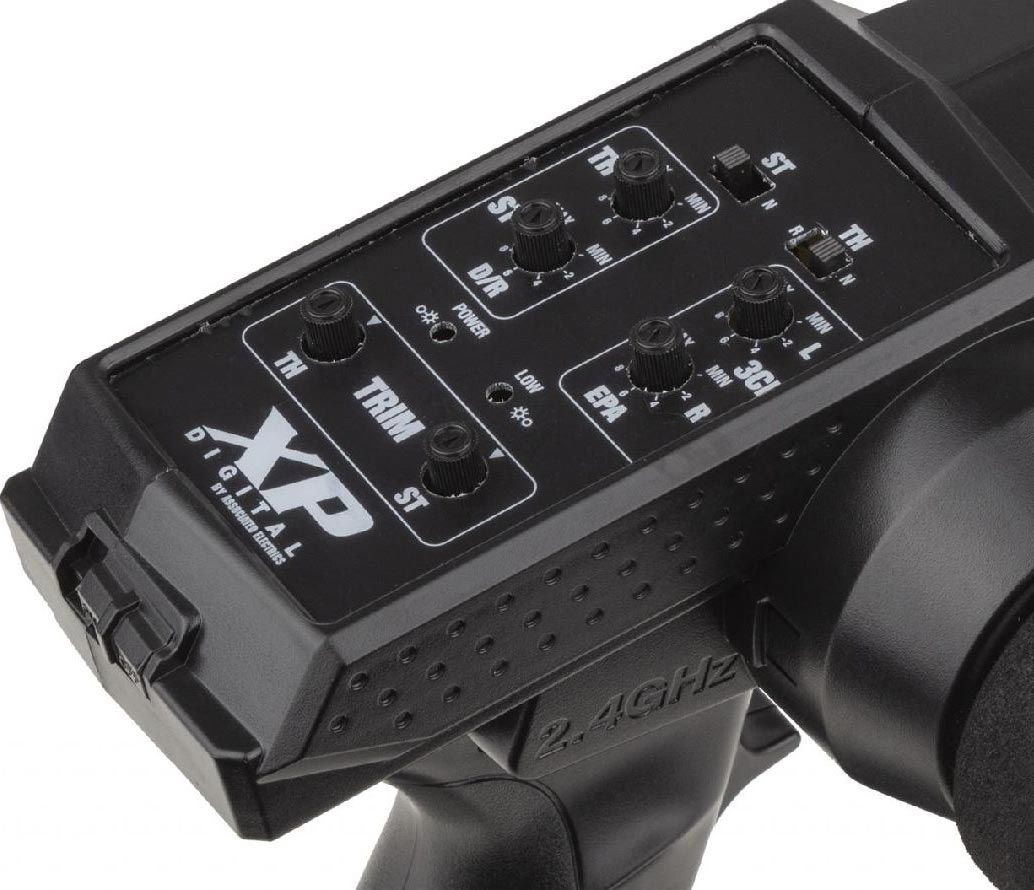

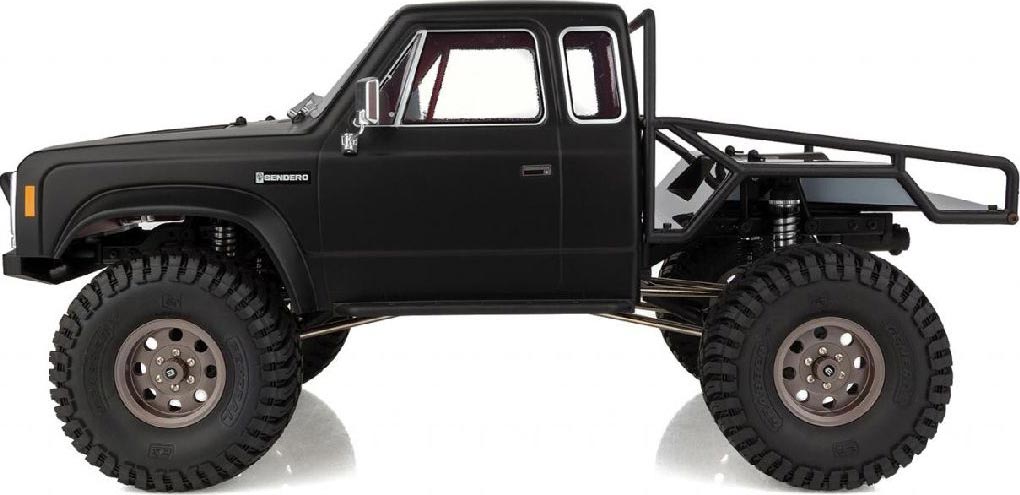

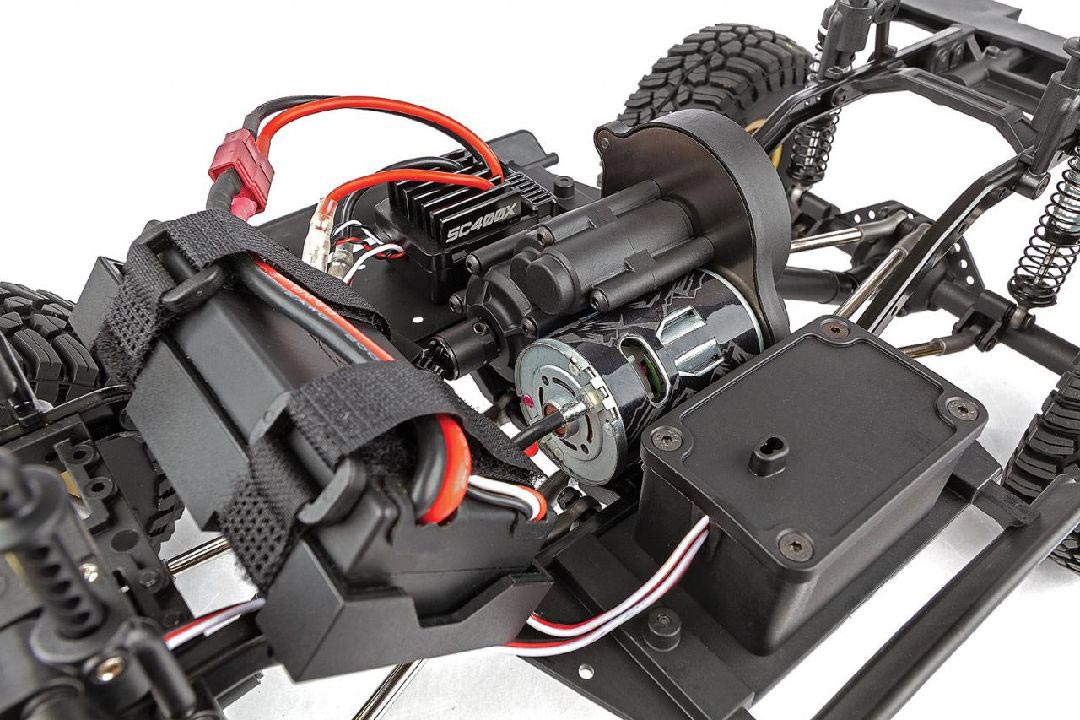

The Enduro Trail Truck with Sendero HD Black body in NEW Scratch ’n Weather color comes ready for adventure right out of the box, with performance-driven Reedy Power electronics. The ultra-smooth, and powerful 16-turn, 5-slot brushed crawler motor and Reedy Power SC480X electronic speed controller with T-plug connector supply ample power to this tough rig. Controlling the beast on the trail is our 3-channel XP130 2.4GHz radio and Reedy Power high-torque 1320MG metal-gear servo.

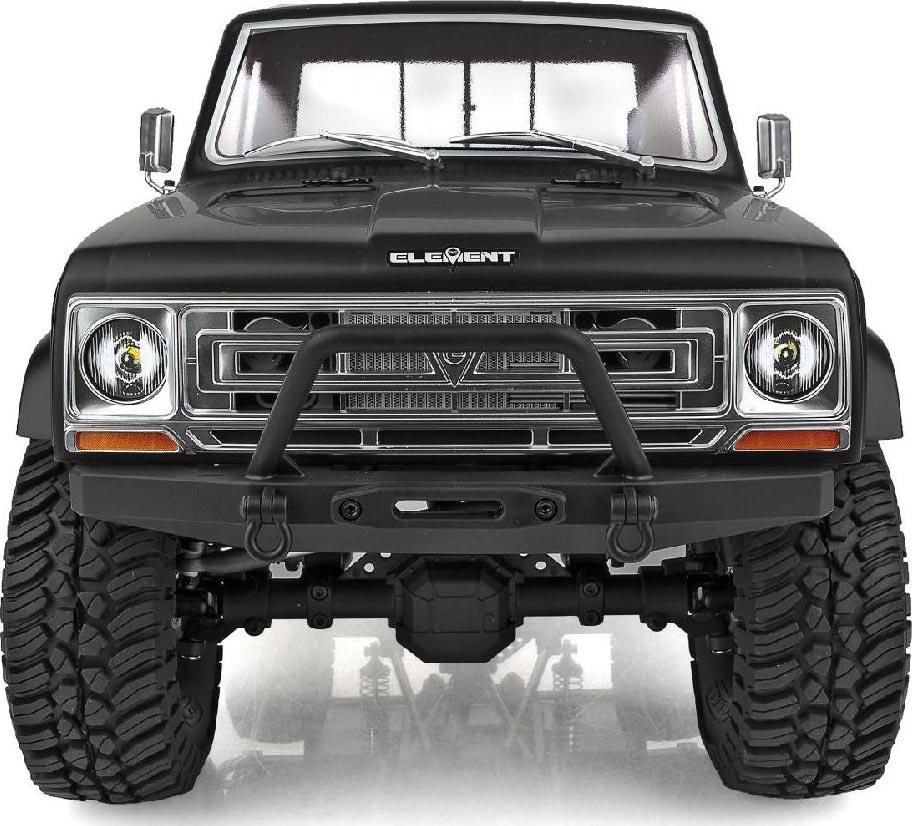

Senduro HD Black Body Features

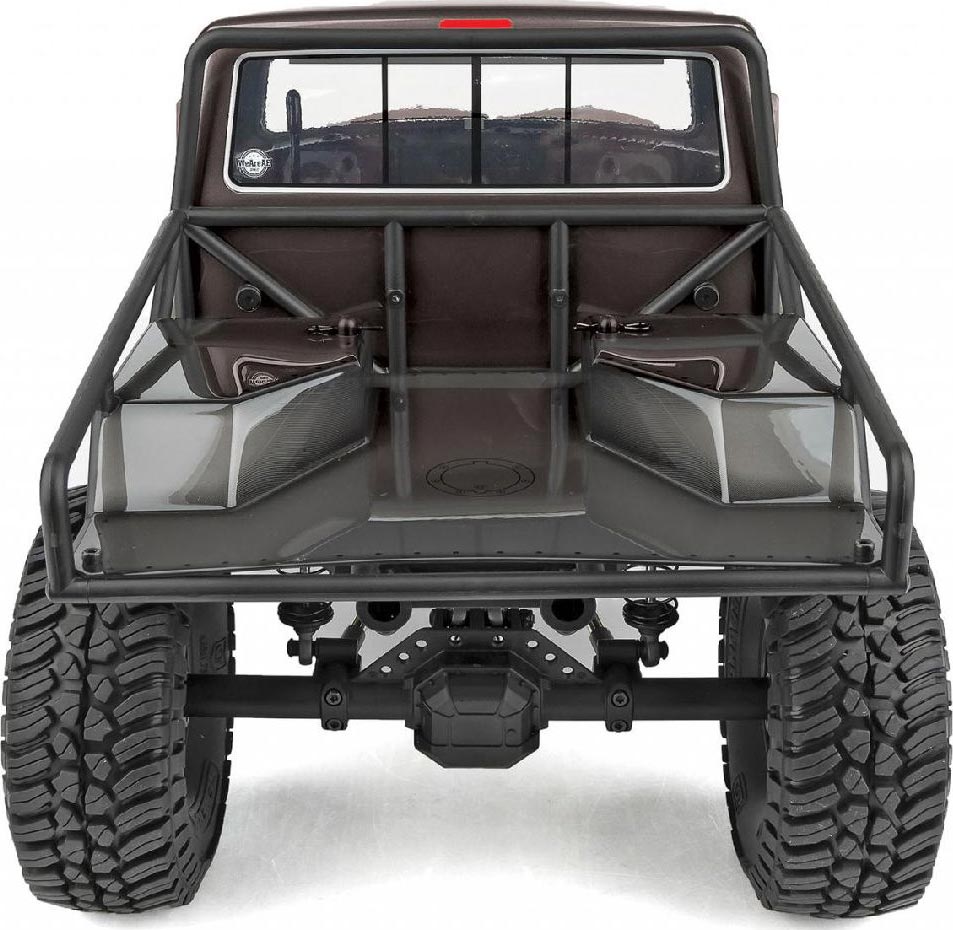

Cab-only design featuring injection-molded utility bed
Sendero body thermoformed in high-strength polycarbonate with NEW Scratch ‘n Weather paint
Clear windows
Molded grill
Replaceable headlight lenses
Pivoting side mirrors
LED headlights
Adjustable front injection-molded bumper
Removable injection-molded fairlead
Realistic styling

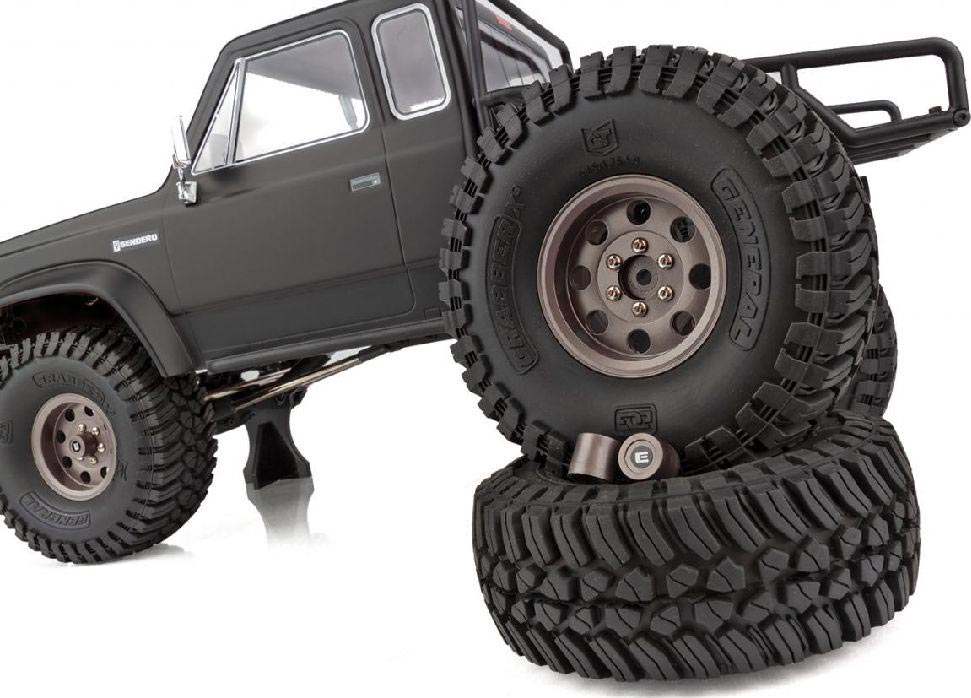

Licensed 1.9”x4.65” General Grabber X3 tires

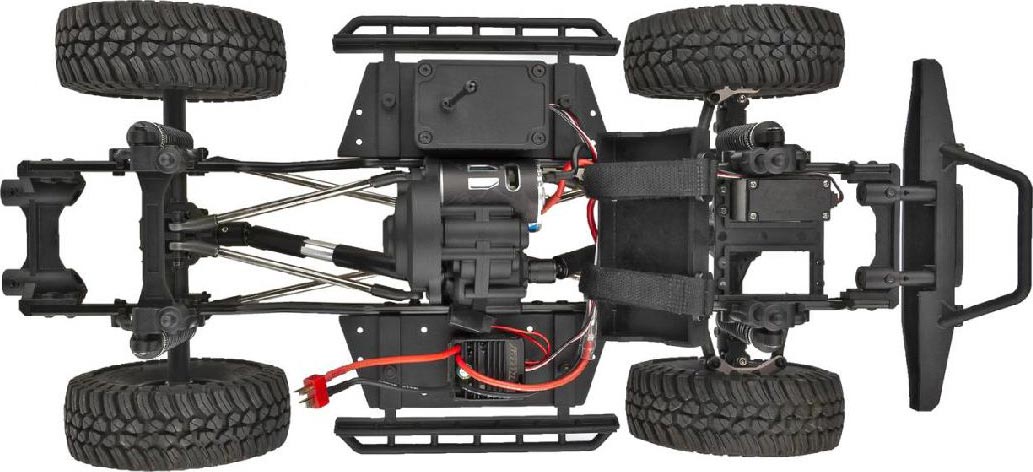

Senduro HD Features
BTA (behind the axle) steering
Aluminum steering plates
Integrated servo winch mount

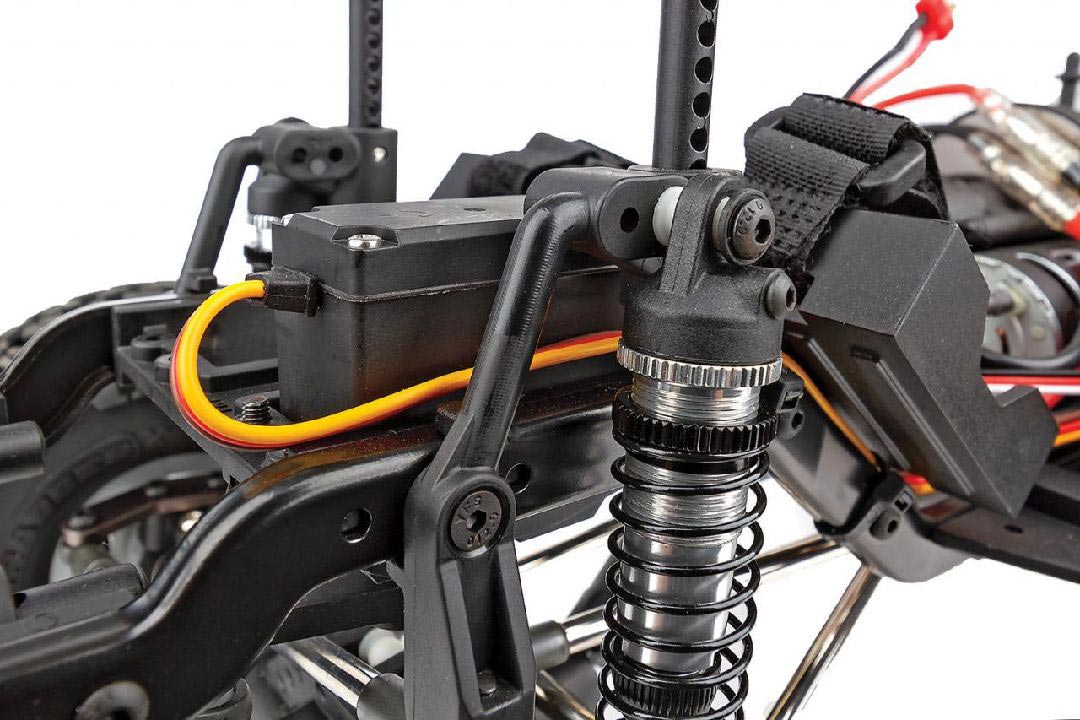

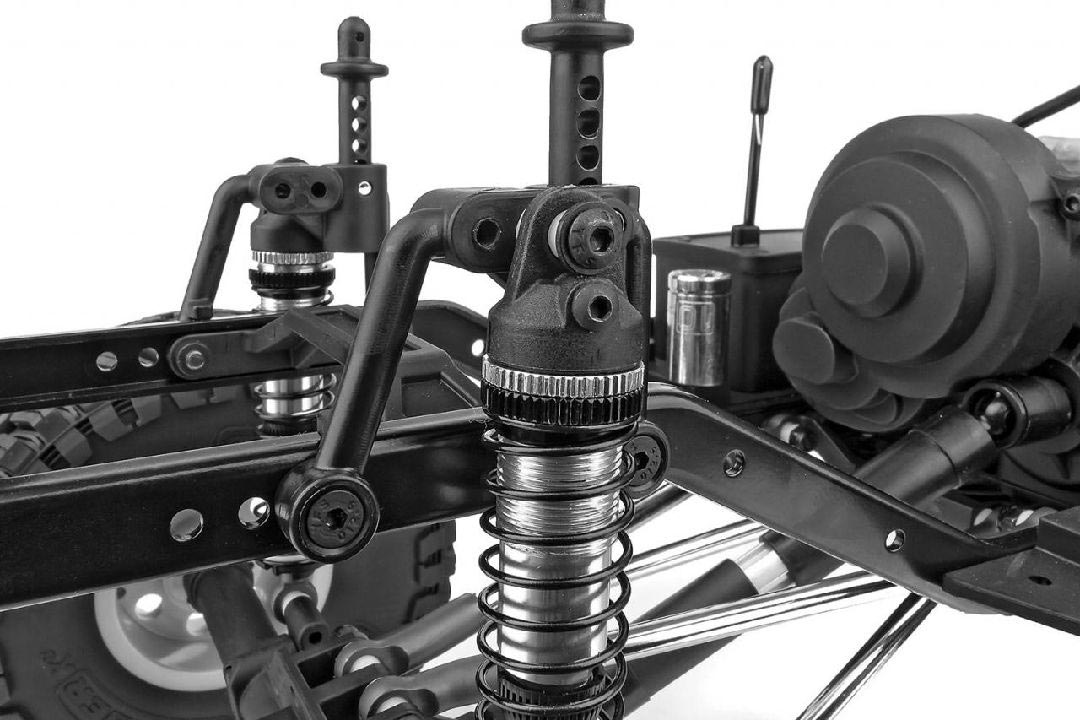

Threaded aluminum shock bodies
Stealth X gearbox with adjustable overdrive gears

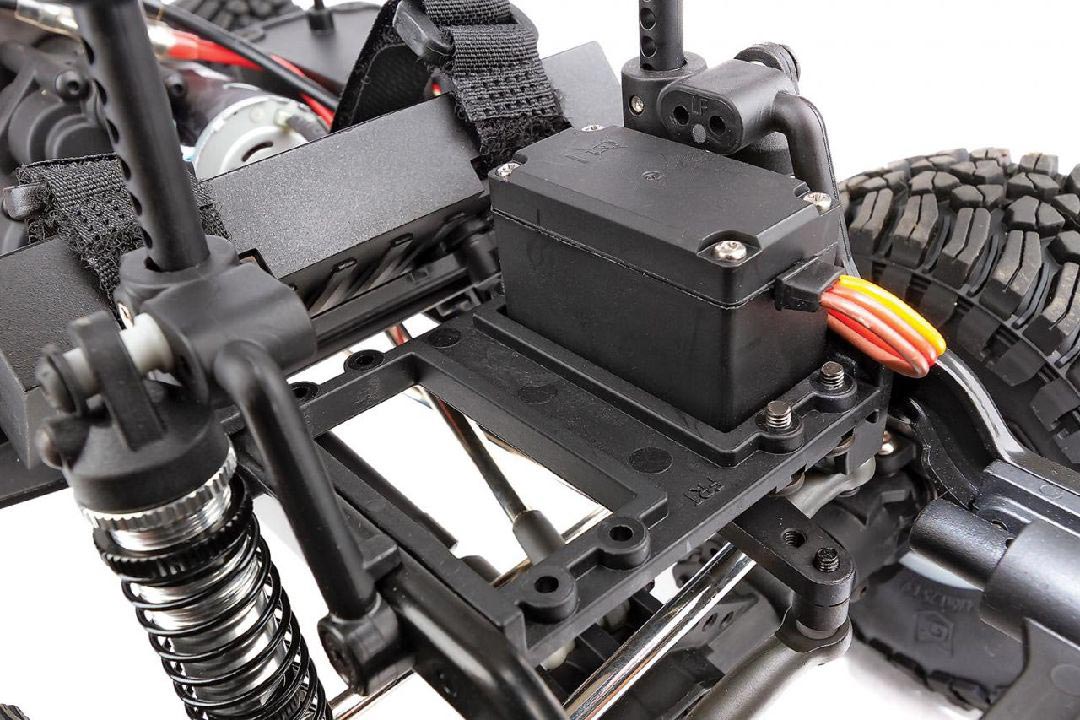

CMS (Chassis Mounted Servo)
Adjustable front track bar
Universal front drive axles
Stamped steel frame rails
Enclosed receiver box
12mm wheel hexes
Adjustable front and rear bumper mounts
Adjustable width rock sliders
Two battery boxes
Aluminum motor plate
Adjustable body posts
Optimized ball cups for more fluid axle articulation
Adjustable rear shock tower mount positions
Telescopic driveshafts front and rear
Extruded aluminum driveshaft splines
One-piece rear axle design
Splined front axle with adjustable caster
Machined input pinion gear
In The Box
(1) 1/10 Enduro Trail Truck

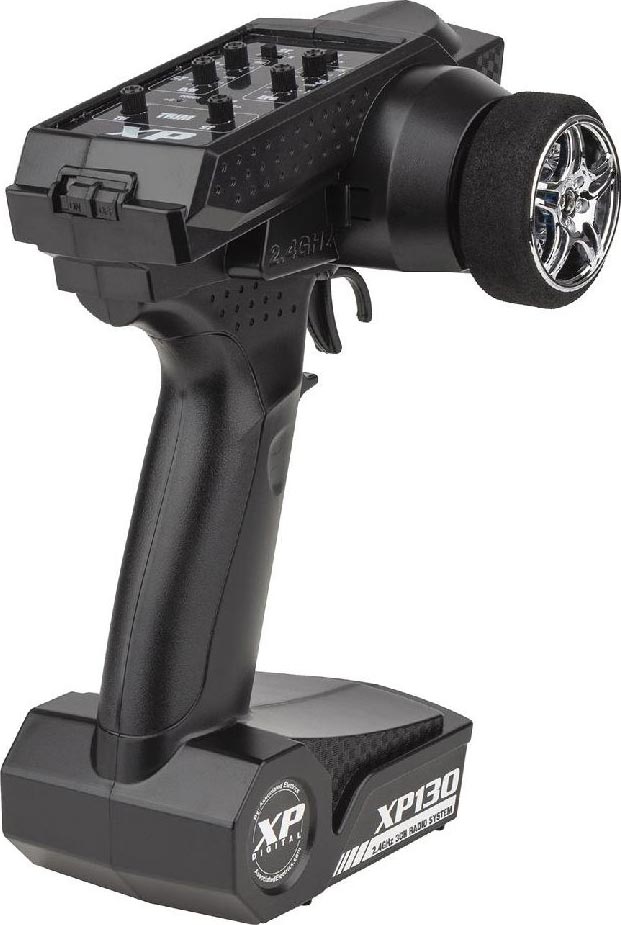

(1) XP130 2.4GHz 3-Channel Radio
(1) 1/10 Enduro Trail Truck Instruction Manual
Needed to Complete
(1) 7.2V - 7.4V Battery
(1) Battery Charger
(4) AA Batteries for Transmitter
|
|
|
|
|
|
|
|
|
|
|
|
|
|
