Edge540 PNP 1300mm w/Vector
|
|
click to enlarge
|
More like this... ARF Park Flyer Electric Aircraft
But only from... ARROWS HOBBY
All items from... ARROWS HOBBY
But only from... ARROWS HOBBY
All items from... ARROWS HOBBY
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
1300 mm
Wingspan:
32.5 sq dm
Wing Area:
58.5 g/sq dc
Wing Loading:
1260 mm
Length:
1900 g
Weight:
6 or more Channels
Radio Requirements:
6-Channels
Receiver Requirements:
4s 14.8v 2600mAh 30C
Battery Requirements:
23g Metal
Servo(s) Included:
4250-910kV
Brushless Motor Included:
60A XT60
ESC Included:
FEATURES

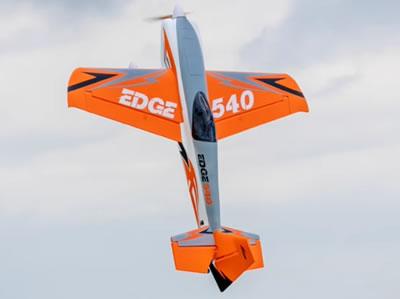

The Arrows Edge 540 is a high-performance aerobatic aircraft popular in aerobatic competitions and airshows. Pilots have flown the Edge 540 to victory many times across the international aerobatic circuit.
Arrows Hobby wanted to build an aerobatic aircraft with a simple structure and excellent performance to meet the interests of enthusiasts seeking the excitement of 3D aerobatics. The Edge 540 has been the first choice of many aerobatic hobbyists, and it has always been popular among many of the pilots and engineers at Arrows at home and abroad too.
The superior performance of the 1300mm Edge 540 can easily complete high, medium and low altitude horizontal and vertical surface stunts. The striking orange paint scheme is highly visible to the benefit of novices and experts alike.
Features:
- High-quality and high-endurance 60A ESC, 4250-KV910 motor, and high-precision 23g metal gear servos
- Ball-style linkage and embedded nylon hinge for precision control.
- The symmetrical main wing installed with 0 incident angle and the super-sized control surfaces facilitate various aerobatics such as somersaults, rolls, hoists and inverted flying.
- High-efficiency wooden propeller.
- Vector gyro system for stabilizing and optimizing flight.
Specifications:
- Wing Area: 32.5 dm2 (503.4sq.in)
- Wing Loading: 58.5g/dm2 (0.117oz/in2)
- Wingspan: 1300mm (51.2 in)
- Length: 1260mm (50 in)
- CG (Center of Gravity): 90-100mm from leading edge
- Power System: 4250-KV910
- Electronic Speed Control: 60A (XT60)
- Propeller / EDF: Wood propeller 13 x 6
- Servos: metal 23g x 4
- Landing Gear: Fixed
- Required Battery: 14.8V 2600mAh 30C
- Required Radio: 6 Channel transmitter and 6 channel receiver required
- Ailerons: Yes
- Elevator: Yes
- Rudder: Yes
- Flaps: No
- Skill Level: Intermediate/Expert
- Build Time: 15 minutes
- Gyro: Vector.
Required to Complete:
- 6 Channel Radio
- 6 Channel Receiver
- 4s 14.8v 2600mAh 30C Battery
- 4s Compatible Charger
PRODUCT RESOURCES
AH018P-VEC
