ARA102692

1/10 Outcast 4X4 4S BLX RTR Bronze w/STX2

ARRMA RC

ARA102692

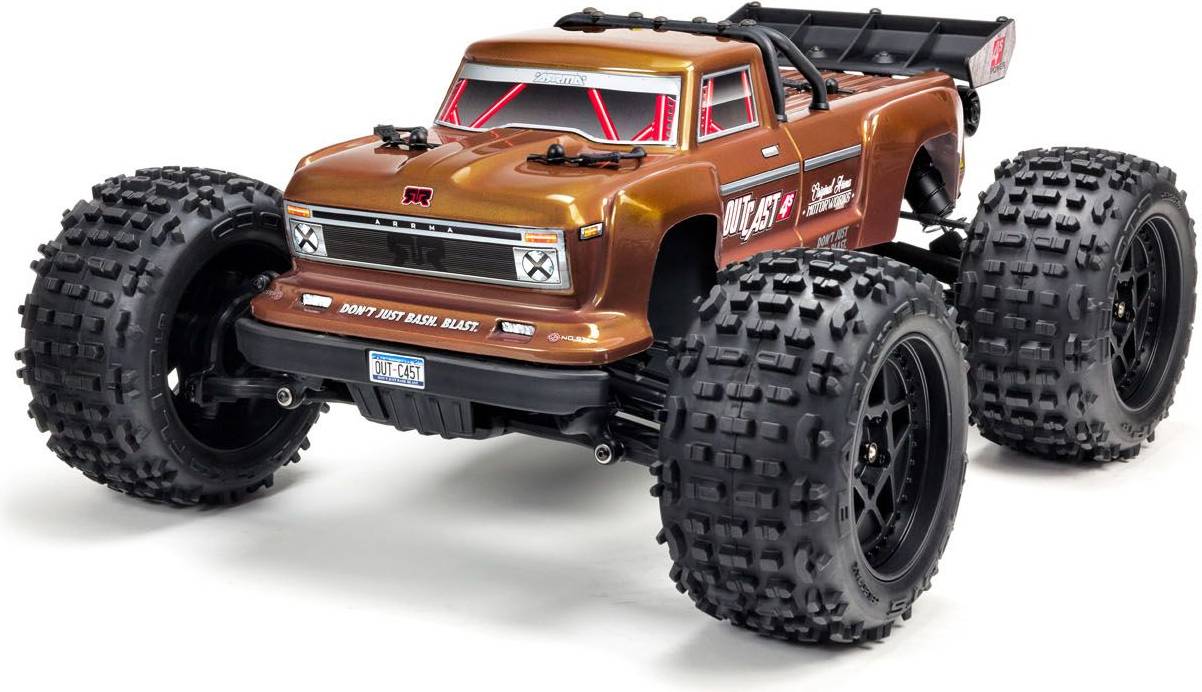

1/10 Outcast 4X4 4S BLX RTR Bronze w/STX2
By ARRMA RC
FREE SHIPPING over $99
Details »
Discontinued
Click to Enlarge
click to enlarge

More like this... ARR R/C Electric 4WD Monster Truck
But only from... ARRMA RC
All items from... ARRMA RC


 Inventory Status Legend
StockStock availability for on-line ordering
0
$549.99
Warehouse ?
StockStock availability for pick up
0
$549.99
Warehouse ?
0
$549.99
Store - Stratford ?
0
$549.99
Store - Edmonton ?
0
$549.99
Store - Mississauga ?
0
$549.99
Store - Ottawa ?
0
$549.99
Store - Oshawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
Best selling related parts, options and upgrades...
Body Clip Retainer 1/10 Scale Black (4)
$7.99

HD Input Gear 13T
$12.99

Servo Saver Set 25T
$9.99

Comp Center Slider Driveshaft BLX 3S
$14.99
Body Post Big Rock
$14.99

F/R Lower Skidplate (2) 4X4 Granite Mega
$8.99

Slipper Plate & Hub Set
$24.99

Rod End Set 4X4
$14.99
SPECIFICATIONS
19.17 in
Length:
15.83 in
Width:
8.43 in
Height:
8.25 lbs
Weight:
2.52 in
Ground Clearance:
11.3 in
Wheelbase:
4WD
Drivetrain:
Spektrum STX2 2-channel
Radio Included:
Non-sensored 2400Kv
Brushless Motor Included:
BLX120 w/dual EC5 battery connectors
ESC Included:
17 mm
Wheel Hex:
156 x 51 x 48 mm
Battery Tray Dim:

FEATURES
  • ARRMA speed and toughness
  • 4S-capable BLX120 Brushless Power System for 50+ mph speed
  • Performance approaching the OUTCAST 6S BLX 4X4
  • Spektrum STX2 2.4GHz Radio System
  • 2-Channel SRX200 waterproof receiver *
  • Built-in 3-position throttle limiter
  • Extended range and interference-free performance
  • Throttle/steering reversing
  • Throttle/steering travel adjust
  • Throttle limiting
  • ADS-15M waterproof metal gear servo *

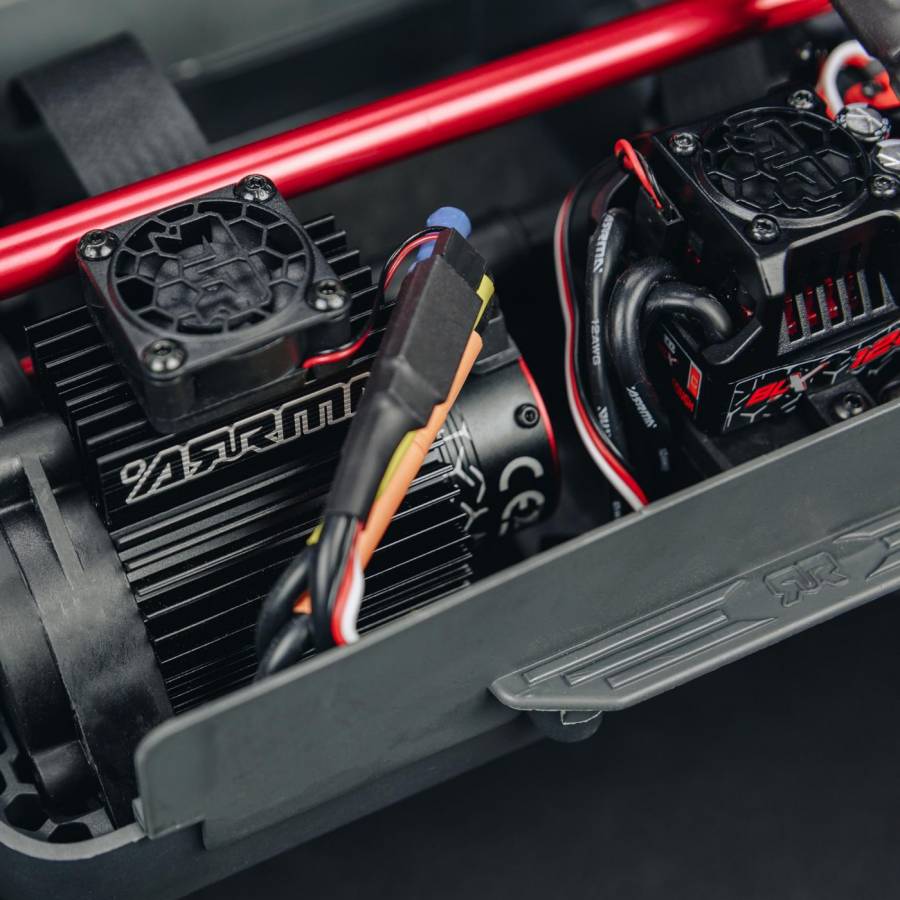

  • 2400Kv Brushless motor with large heatsink
  • BLX120 ESC with dual EC5™ battery connectors for two 2S LiPo packs
  • Lengthened suspension arms and driveshaft for wider track than 3S BLX vehicles
  • Center chassis brace for maximum durability
  • Metal spur gear and castellated slipper pads
  • Enlarged front and rear hubs for added strength
  • Durable 17mm hexes
  • 16mm Big Bore shocks with molded-in shock rod end and top-loading spring
  • Front and rear gearboxes with metal internal differential gears

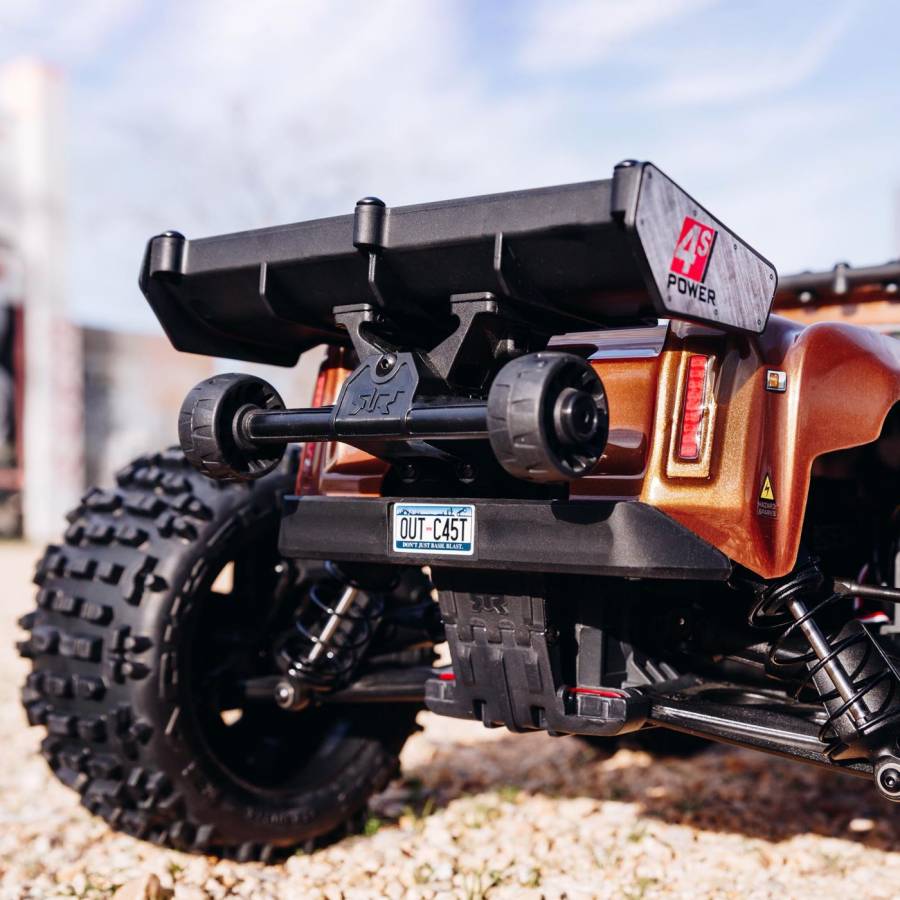

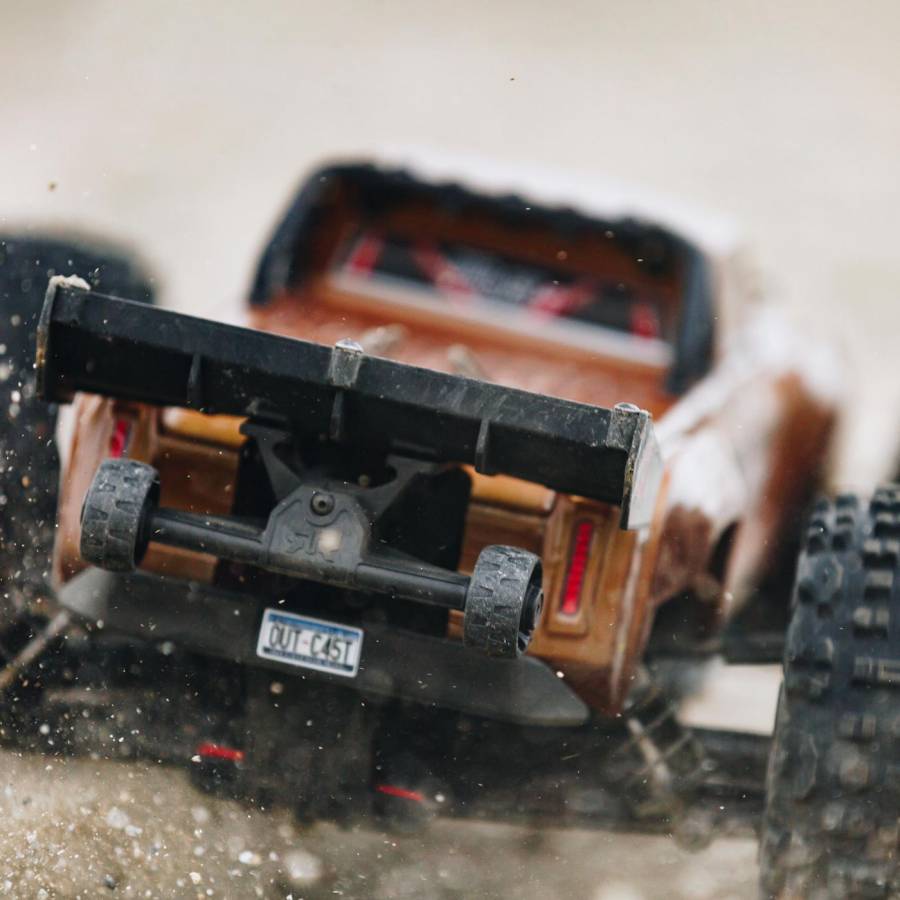

  • New wing, wing mounts, and bumpers
  • New body mounts
  • Low-profile BACKFLIP tires
  • ADS-15M metal gear servo
  • 2-year limited warranty

What's in the box

(1) ARRMA OUTCAST 4x4 4S BLX Vehicle with
(1) Spektrum SRX200 Waterproof Receiver (installed)
(1) ARRMA ADS-15M Metal Gear Servo (installed)
(1) ARRMA 4S-capable BLX120 Electronic Speed Control (installed)
(1) ARRMA 4S-capable BLX3668 Brushless Motor (installed)
(1) Spektrum STX2 Transmitter
(1) Product Manual

Needed to complete:

(1) 3S/4S or (2) 2S LiPo battery setup
(1) Appropriate LiPo balancing charger
(4) AA batteries for transmitter

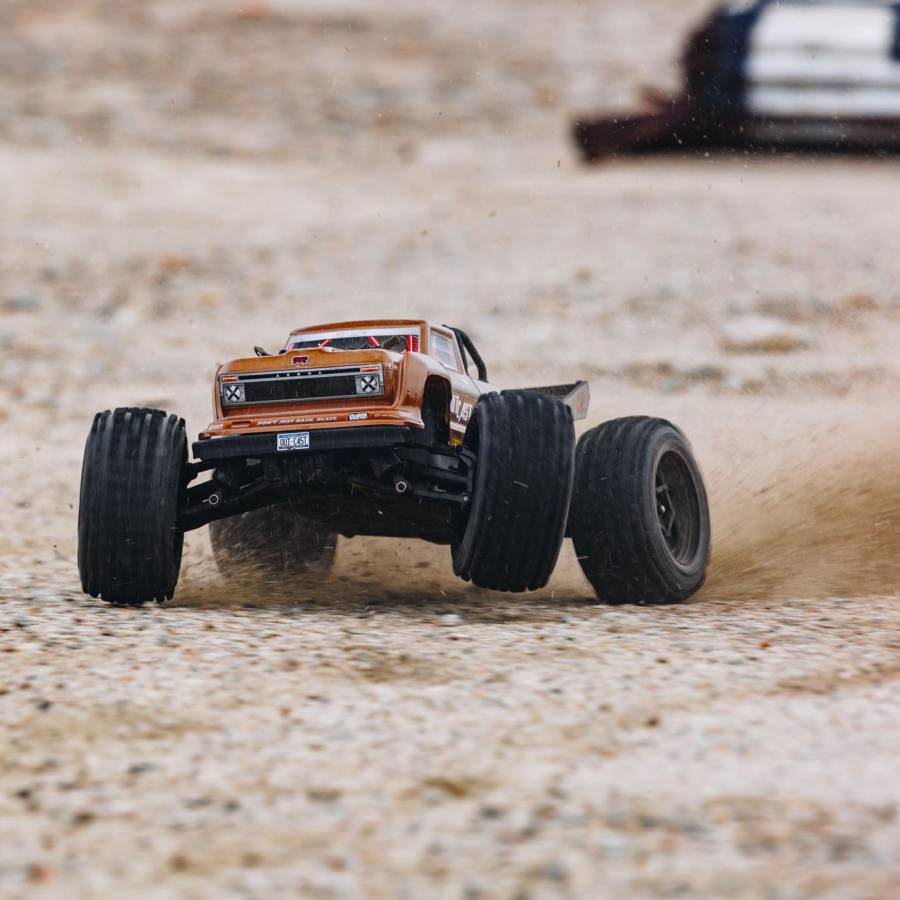

At home on trails, over muddy courses, and at skate parks and race tracks, the OUTCAST 4X4 4S BLX shares the low, lean look of its 6S BLX forerunner in a scaled-down size. Power comes from the ARRMA 4S-capable BLX120 brushless system – which features a 2400Kv brushless motor and ESC fitted with dual EC5 connectors for using two 2S LiPo battery packs. Differential gears inside the front and rear gearboxes are made of durable metal.

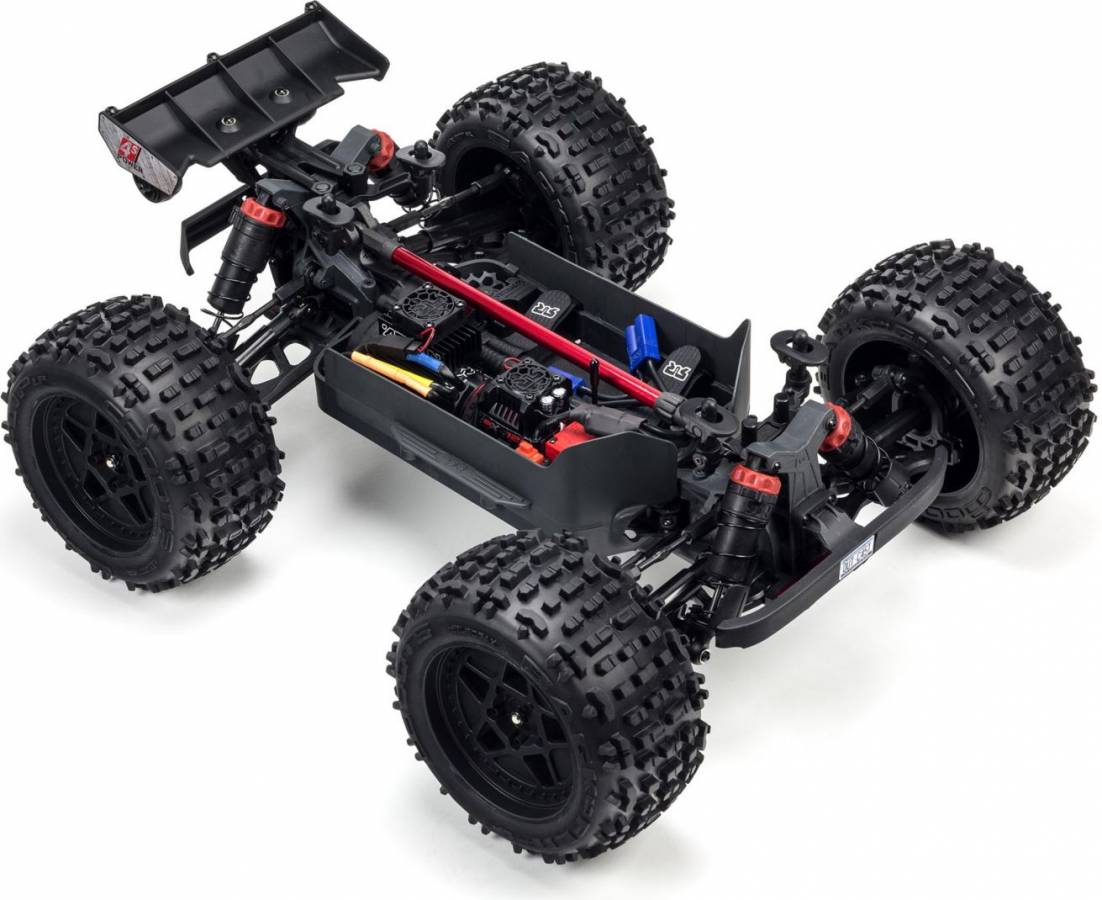

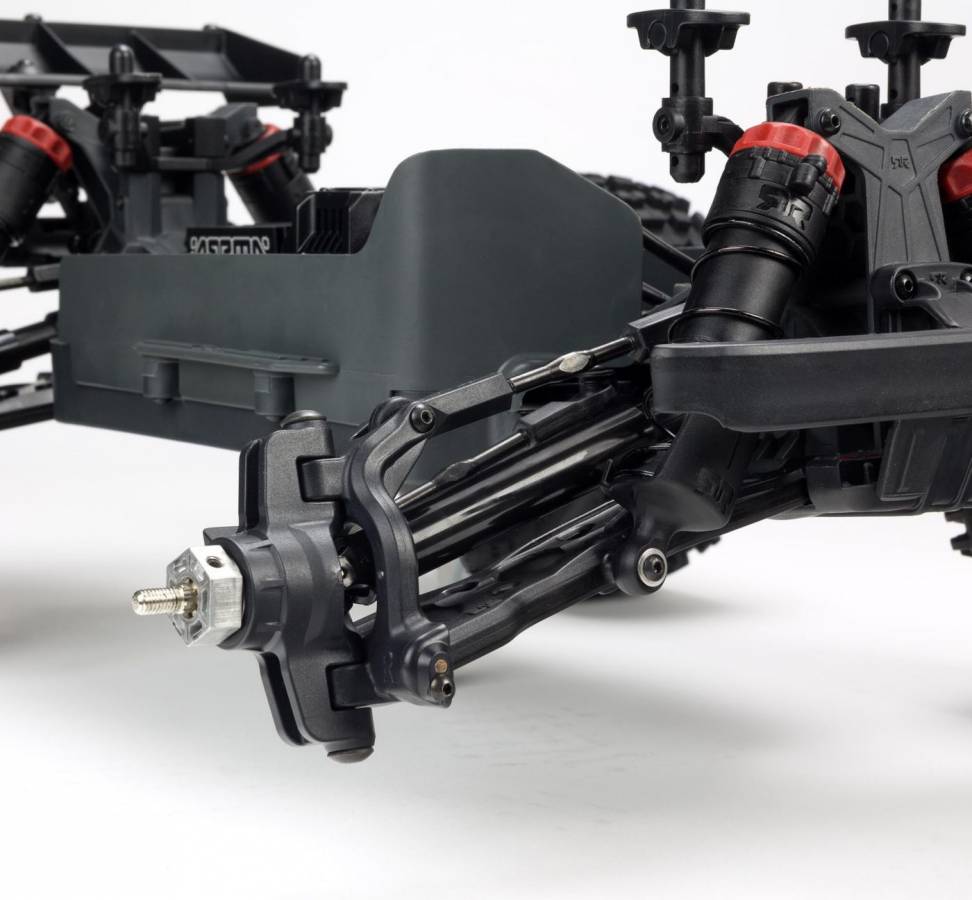

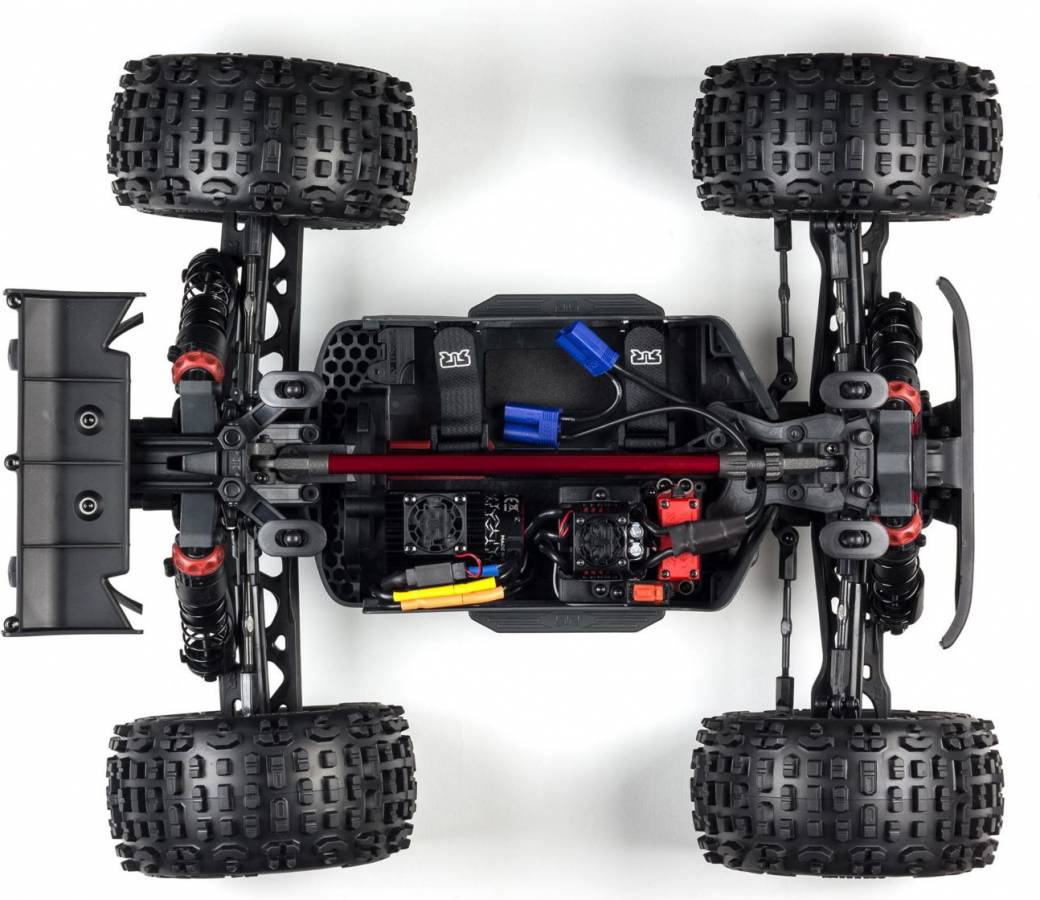

Building from the successful 4X4 3S BLX platform, ARRMA designers stretched the track width for the OUTCAST 4X4 4S BLX by widening the suspension and drive shafts. A center brace added along the length of the chassis provides maximum durability and can be removed in just four quick steps when it's time to perform maintenance. The molded 16mm Big Bore shocks include top-loading springs and molded-in shock rod ends to prevent spring loss. The large, tough wheels hubs and durable 17mm wheel hexes hold standard 3.8" wheels, outfitted with low-profile BACKFLIP tires. The wing and bumpers follow the look of the OUTCAST 6S BLX, with new wing and body mounts.

The ready-to-run package comes complete with a Spektrum™ STX2® 2.4GHz radio with SRX200 waterproof receiver and an ARRMAADS-15M metal gear servo. Add your choice of battery, charger, and "AA" transmitter batteries, and start making your own RC mayhem!
