EFL7975

F-4 Phantom 80mm EDF PNP

Product Info
E-FLITE

EFL7975
F-4 Phantom 80mm EDF PNP
By E-FLITE
$559.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... ARF Ducted Fan Electric Aircraft
But only from... E-FLITE
All items from... E-FLITE


 Inventory Status Legend
StockStock availability for on-line ordering
1
$559.99
Warehouse ?
StockStock availability for pick up
1
$559.99
Warehouse ?
0
$559.99
Store - Charlottetown ?
0
$559.99
Store - Edmonton ?
0
$559.99
Store - Mississauga ?
0
$559.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
SPECIFICATIONS
35.8 in
Wingspan:
443.3 sq in
Wing Area:
33 - 43
Wing Loading:
53.7 in
Length:
6.32 - 6.62 lbs
Weight:
6 or more Channels
Radio Requirements:
6 or more channels
Receiver Requirements:
6S 22.2V 4000-5000+mAh 30+C LiPo with EC5 or IC5 Connector
Electric Flight Battery Requirement:
No
Radio Included:
No
Receiver Included:
7 metal gear servos
Servo(s) Included:
80mm
Ducted Fan Included:
3270-2000Kv
Brushless Motor Included:
100 amp
ESC Included:

FEATURES
  • The best handling high-performance F-4 Phantom EDF (Electric Ducted Fan) jet model yet
  • Scale replica of the awe-inspiring and legendary supersonic interceptor and fighter-bomber
  • Extra Scale details including removable ordnance and tanks, strut covers, molded-in panel lines and more
  • Functional Extra Scale features including LED lights, full-flying stabs, flaps and sequenced nose gear doors
  • 12-blade 80mm fan delivers excellent top speed and vertical performance plus turbine-like sound
  • Factory-installed high-power 6S-compatible brushless inrunner motor and 100-amp ESC
  • Factory-installed metal-geared servos with ball-link equipped linkages
  • Electric retracts with shock-absorbing struts for operation from a variety of surfaces including grass
  • No glue required for assembly and can be ready to fly in less time than it takes to charge a battery
  • Two-piece wing with hands-free connection system and a magnetically-secured nose cone

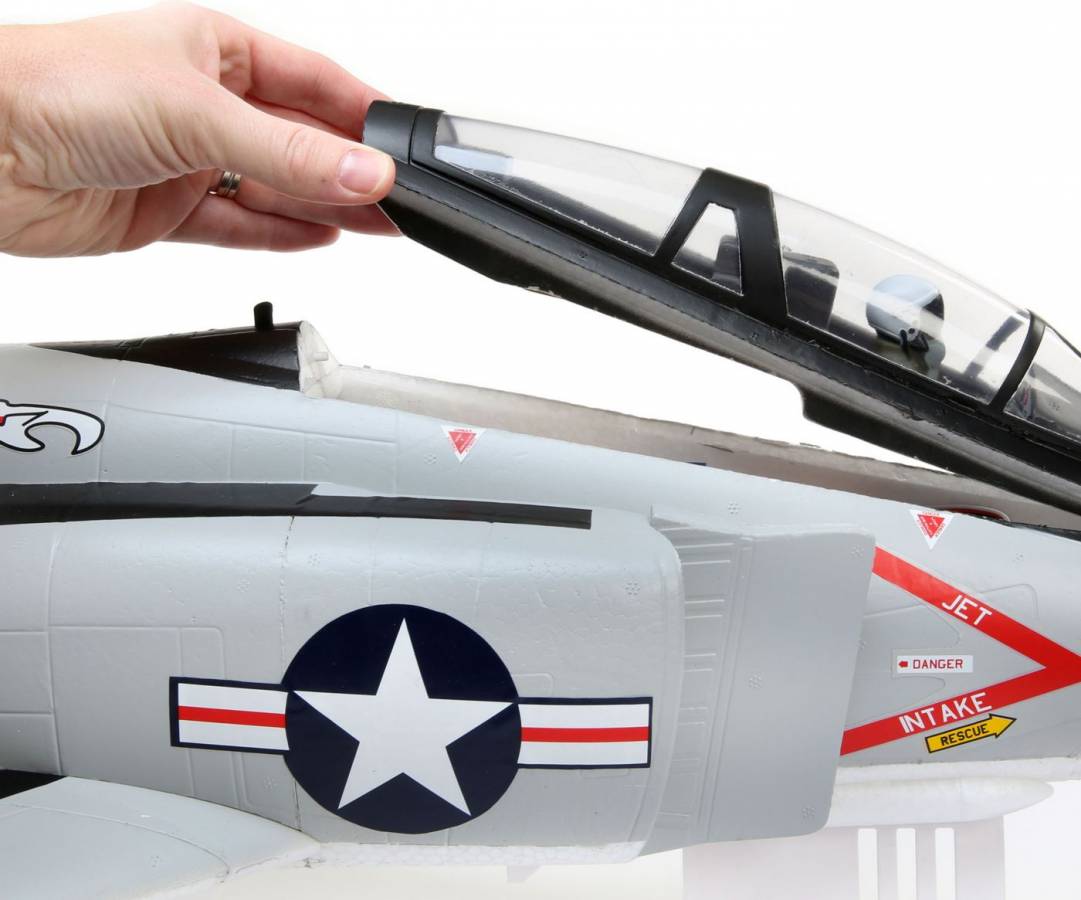

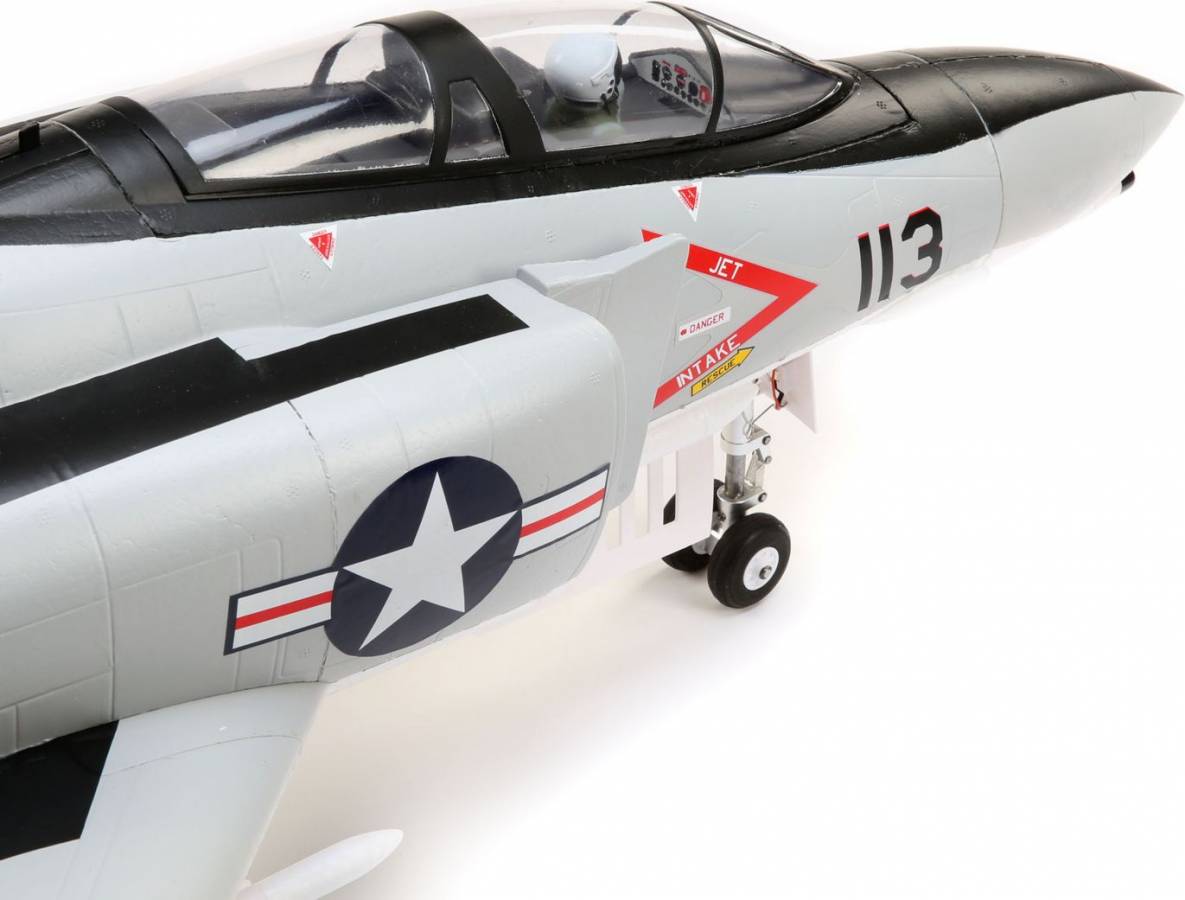

  • Convenient top hatch with clear canopy, cockpit detail and a pilot figure

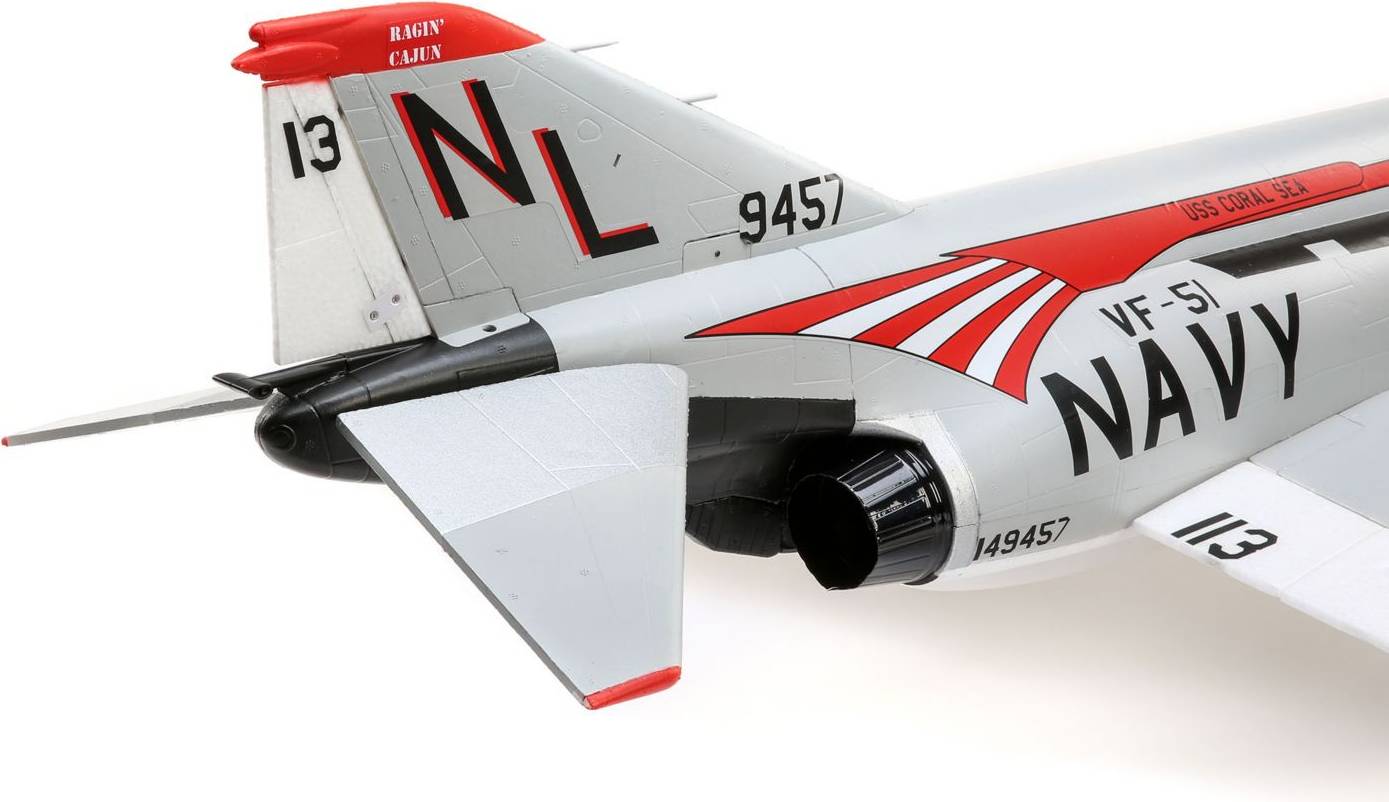

  • Factory-applied VF-51 "Screaming Eagles" squadron finish
  • Durable yet lightweight, fully-molded EPO airframe

 The McDonnell Douglas F-4 Phantom II is a legendary long-range supersonic interceptor and fighter-bomber that continues to serve in some countries more than 60 years after making its first flight. Capable of top speeds up to and even beyond Mach 2, the F-4 set numerous speed and altitude world records while serving the U.S. Navy, Marine Corps and Air Force. The E-flite® F-4 Phantom II 80mm EDF is an Extra Scale replica that delivers outstanding authenticity and incredible performance with fantastic handling- especially when it's equipped with exclusive Spektrum™ AS3X® and SAFE® Select technologies (BNF® Basic version only).

In the box:

  • (1) E-flite F-4 Phantom II 80mm EDF with:
  • (1) 100A Brushless ESC
  • (1) Brushless Inrunner Motor
  • (7) Metal-Geared Servos
  • (1) Product Manual

Needed to complete:

  • Full-range 6+ channel transmitter and receiver
  • 6S 22.2V 4000-5000+mAh 30+C LiPo with EC5™ or IC5™ Connector
  • Compatible LiPo charger

The E-flite® F-4 Phantom II 80mm EDF is a replica of the awe-inspiring supersonic interceptor and fighter-bomber legend. It features an accurate outline and an abundance of Extra Scale details including molded-in panel lines and hatches, main gear strut covers, removable ordnance and tanks, plus a factory-applied finish that pays tribute to the VF-51 "Screaming Eagles" squadron. Functional Extra Scale features include LED landing and navigation lights, full-flying stabs, operational flaps and control surfaces with pocket hinges, sequenced nose gear doors and electric retracts with shock-absorbing struts so you can fly off a variety of surfaces, including grass fields. The 6S-compatible brushless inrunner motor and 100-amp ESC are perfectly matched to an 80mm 12-blade fan to deliver incredible thrust and speed, plus a turbine-like sound. It's also the easiest to assemble Phantom ever with a factory-finished EPO airframe that bolts together- no glue required- in less time than it takes to charge a battery. And it all adds up to deliver a unique flight experience with the best handling and performing F-4 model yet!


High-Performance EDF

The 12-blade 80mm fan, high-RPM brushless inrunner motor and 100-amp ESC combine with your 6S 4000–5000+mAh LiPo battery to deliver great vertical performance and a fantastic speed range with virtually instantaneous throttle response. This power system also delivers better performance and longer flight times than the 6S-compatible power systems used in larger EPO or even similar sized composite and wood models that were available in the past. But what makes the experience truly rewarding is the fantastic sound it produces- it's almost like a real turbine.


Extra Scale Details

The F-4 Phantom II 80mm EDF features an accurate outline and an abundance of Extra Scale details including molded-in panel lines and hatches, main gear strut covers, removable ordnance and tanks- more details than you typically find on similar class and smaller models.


Functional Extra Scale Features

Factory-installed LED navigation and landing lights, full-flying stabs, operational flaps and control surfaces with pocket hinges- even sequenced nose gear doors- are functional Extra Scale features that take your experience to another level.

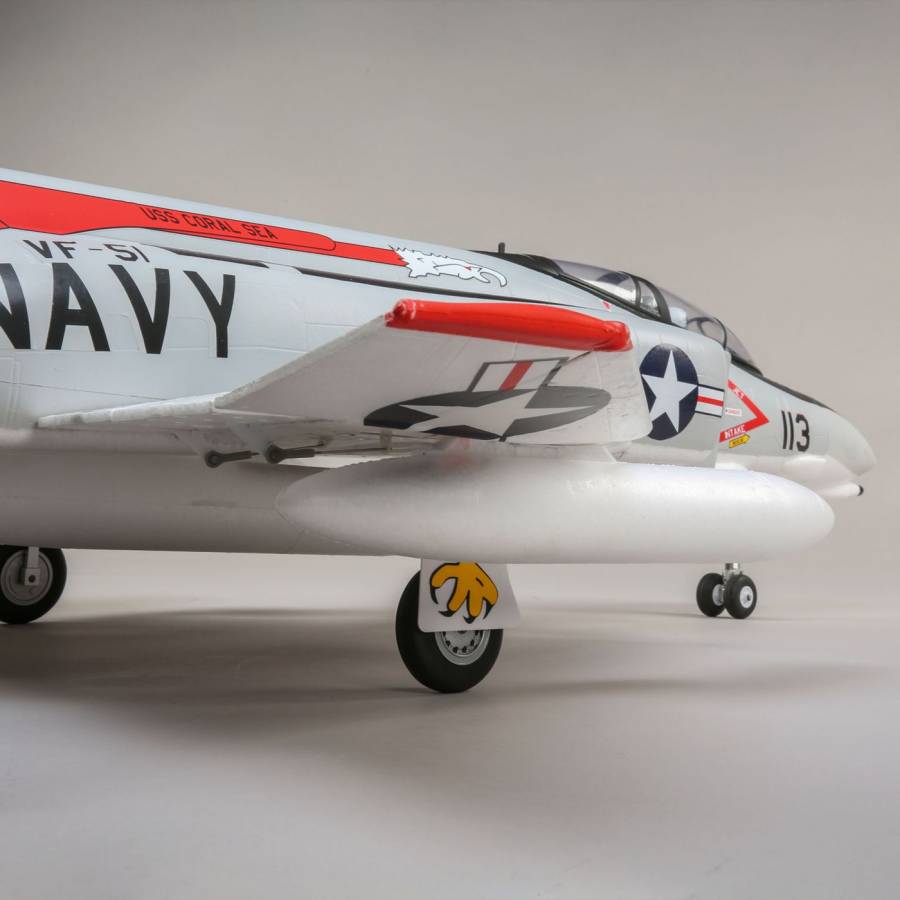

Capable Gear

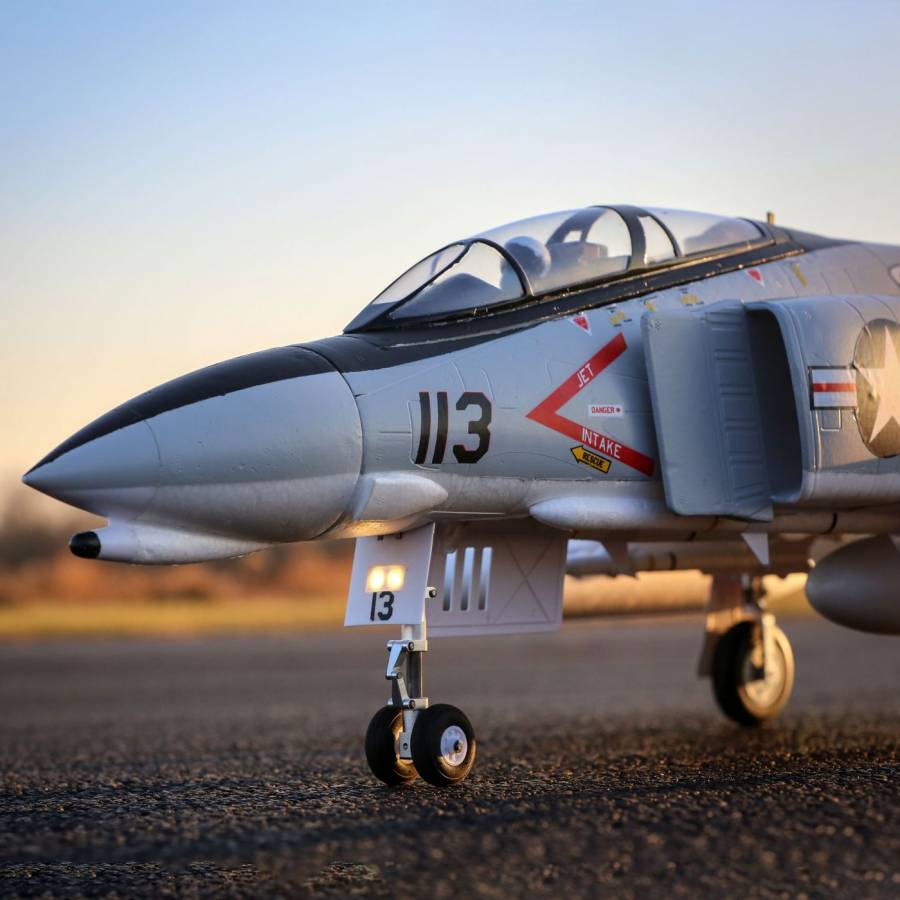

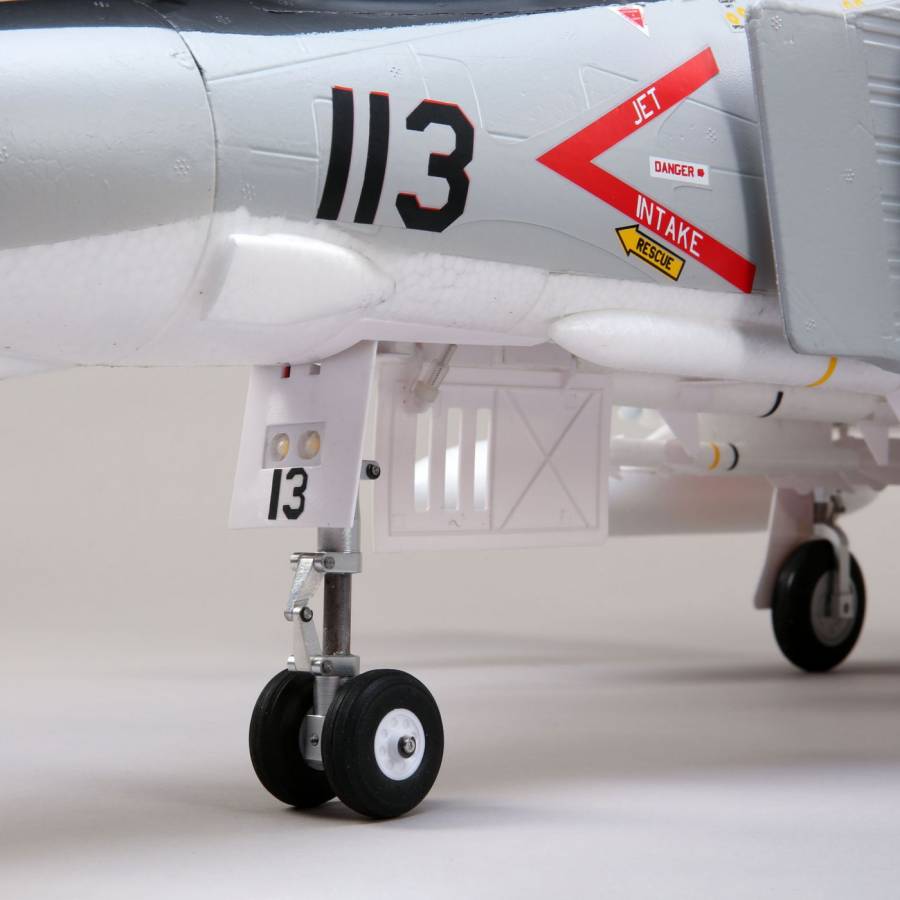

The steerable nose gear with dual wheels and the wide-spaced main gear feature reliable, factory-installed electric retracts equipped with durable metal components and shock-absorbing struts that make it possible to fly from a wider variety of surfaces including paved runways and even grass.


Durable Precision

Construction with fully-molded EPO material makes it possible to replicate complex detail and shapes in a lightweight yet durable form. The result is an outstanding scale appearance that's easy to maintain and delivers the best possible flight experience, plus the factory-installed metal-geared servos with ball-link equipped linkages deliver crisp and precise control at every speed.


Easy Assembly

No glue is required for assembly and you can have the F-4 ready to fly in less time than it takes to charge a battery! The stabs plus the two-piece wing with an innovative hands-free connection system bolt into place and can easily be removed for convenient storage and transport.


Unique Trim Scheme

The factory-applied paint and decal finish pays tribute to the VF-51 "Screaming Eagles" squadron, while providing excellent visibility and a model you'll be proud to show off everywhere you go.


Plug-N-Play® Completion Level

This Plug-N-Play (PNP) model comes out of the box with a factory-installed power system and servos that are ready to connect to the compatible receiver of your choice (sold separately). Simply install the receiver, finish any final assembly, and fly!





click image to enlarge

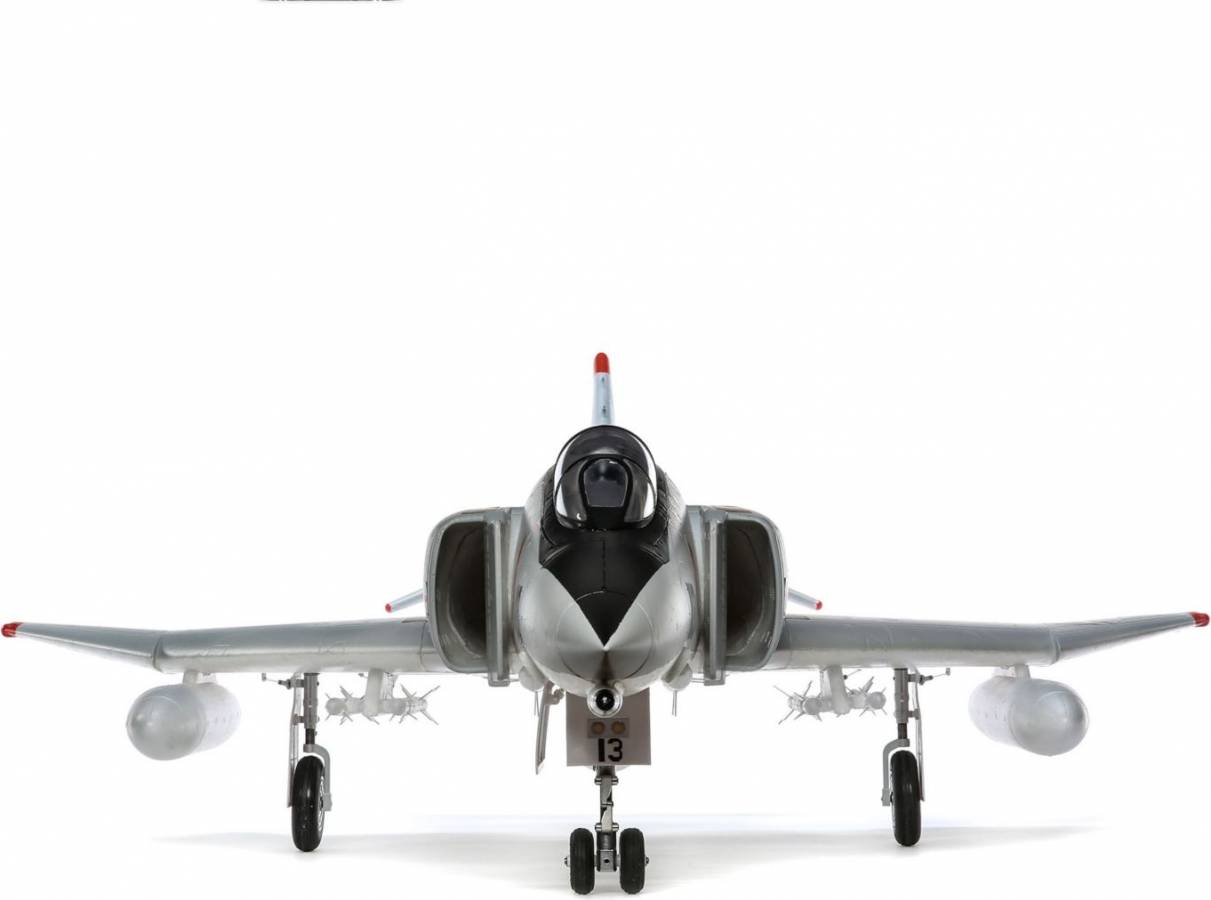

ADDITIONAL PHOTOS
