1080P/60fps, 22ms low latency, 3.1V-13V, Power 500mW, Built-in 32G storage, 6.8g light weight
The Avatar HD system uses H.265 code, an industry-leading technology, to provide 1080p FPV image quality with ultra-low latency.

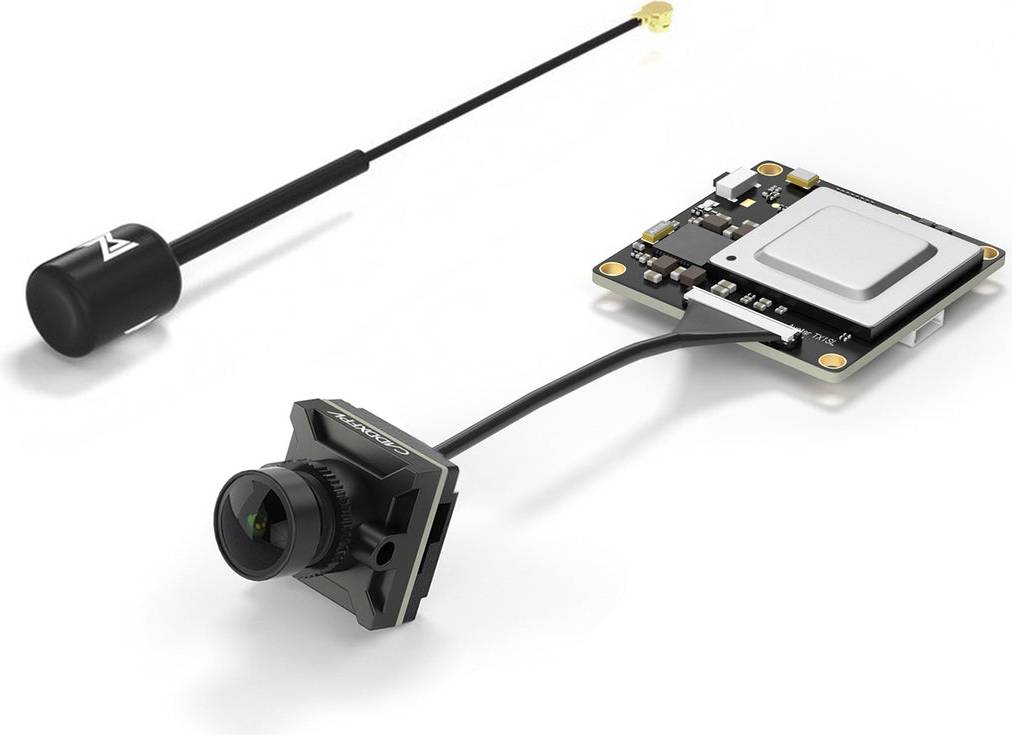

The Avatar mini 1S VTX weights only 6.8g and fits perfectly with the 75X quad.
22ms Low Latency
Supports both high frame rate and standard frame rate, in high frame rate, it has an average latency of 22ms.
2G Built-in Storage
The Avatar mini 1s vtx comes with 8g built-in storage, it can record 1080p with 60fps or 720pwith 100fps/60fps HD flight videos without interference.
Camera
Model Avatar nano
Image Sensor 1/2.7”1nch
Resolution 1080P/60fps,720P/120fps,720P/60fps
Ratio 16/9 4/3
Lens 2.1mm
FOV 170°
Aperture F2.0
Shutter Rolling shutter
Min.Illumination 0.001Lux
Weight 3.5g
Dimensions 14*14*17mm
Coaxial Cable 55mm?default?/90mm
VTX
Model Avatar mini 1s module
Communication Frequency 5.725-5.850GHz
Transmitter Power (EIRP) FCC:<25.5dBm; CE:<14dBm;
SRRC:<20dBm; MIC:<25dBm
I/O Interface JST1.0*6(Power in)JST0.8*4(USB)
Mounting Holes 25.5*25.5mm
Dimensions 30*30*6.5mm
Storage 8G(v2) / 32G(v3)
Recording 1080p/720p
Weight 6.8g
Operating Temperature -20-40?
Channels 8
Wide Power Input 3.1V-5V(V2) / 3.1V-13V(V3)
Supported FC System Betaflight; Inav; Fettec; Kiss; ArduPliot
OSD Canvas mode
Bitrate 25mbps 50mbps
Latency Average latency 22ms
Antenna IPEX
VTX Antenna
Model Polar antenna
Polarization LHCP
Bandwidth 5.6GHz-5.9GHz
Average Gain 2dBi
Radiation Efficiency ≥98%
VSWR ≤1.4
Connector U.FL
Line Length 90mm
Dimension H105mm*R11.2mm
Weight 1.5g
Includes:
Avatar Mini 1S KIT X1
4 Pin USB Cable X1
6 Pin Power Cable X1
M2x3/4mm Screws X2
M2x16mm Screws X4
M2 Screw nut X4
2.1x3.4x1mm Gasket X5
