TRX5803

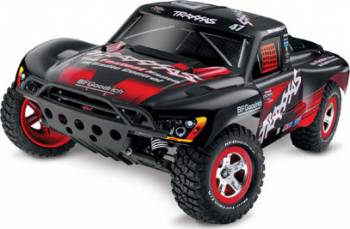

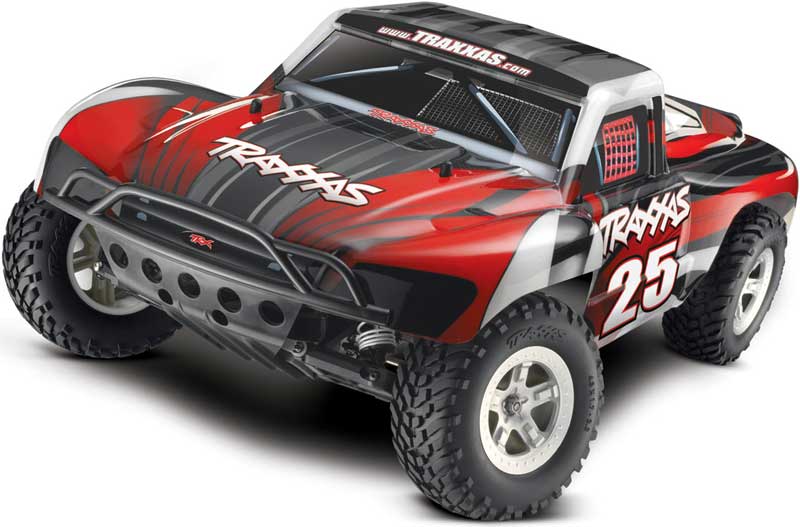

1/10 Slash SC 2WD RTR w/2.4GHz/XL-5/Titan 550

TRAXXAS

TRX5803
1/10 Slash SC 2WD RTR w/2.4GHz/XL-5/Titan 550
By TRAXXAS
Discontinued
Click to Enlarge
click to enlarge

More like this... ARR R/C Electric Off-Road Racers
But only from... TRAXXAS
All items from... TRAXXAS


 Inventory Status Legend
StockStock availability for on-line ordering
0
$212.49
Warehouse ?
StockStock availability for pick up
0
$212.49
Warehouse ?
0
$212.49
Store - Stratford ?
0
$212.49
Store - Edmonton ?
0
$212.49
Store - Mississauga ?
0
$212.49
Store - Ottawa ?
0
$212.49
Store - Oshawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Ball Bearings 5x11x4mm Revo (2)
$4.99

Body Clips Silver (12)
$2.79

Titan 550 Motor 12T
$35.99

Wheel Hex (2)
$2.79
Rear Stub Axle Carriers (2) Stampede/Rsutler/Bandi...
$4.49

Body Clips Maxx (12)
$4.49

4mm (M4) Nylon Locking Wheel Nuts Serrated Flanged
$4.49

Caster Blocks Elec Rust/Stamp/Slash
$13.99
SPECIFICATIONS
22.36 in
Length:
11.65 in
Front Track:
11.65 in
Rear Track:
4.76 lbs
Weight:
8.425 in
Height:
13.2 in
Wheelbase:
Titan® 12T 550
Motor (included):
3 Channel
Radio (included):
30+ mph
Top Speed:

FEATURES
  • Scale dimensions and looks of actual short course off-road race trucks
  • The Slash reaches speeds in excess of 30mph using the included optional 23-tooth pinion gear
  • Powerful Titan® 12T 550 modified motor with internal cooling fan
  • Race in dirt, mud, and water thanks to Traxxas’ innovative water-sealed electronics
  • XL-5 Electronic Speed Control
  • Traxxas High-Current Connector
  • Digital high-torque waterproof steering servo
  • O-ring sealed watertight receiver box keeps the micro receiver dry
  • Speed control and receiver are securely fastened to chassis
  • Long-wheelbase fiber-composite monocoque chassis
  • Easy access battery compartment
  • Adjustable battery hold down accepts 6- and 7-cell flat packs and 7-cell hump packs
  • Chassis nerf bars absorb impact and support the body
  • Scale front and rear tube-style bumpers
  • New body mounts incorporate reinforced washers for additional body support
  • Efficient Magnum 272™ metal-gear transmission with ball bearings
  • Sealed gearbox protects the transmission with beefed up motor guard for extra protection
  • Revo®-spec Torque-Control™ slipper clutch system
  • External gear cover with easy slipper access
  • Reliable composite planetary gear differential with a steel ring gear
  • Heavy-duty telescoping U-joint driveshafts and yokes
  • Adjustable steel Jato®-Style turnbuckles and captured rod ends
  • Captured rod ends won't pop off for superior durability
  • Precision hex hardware throughout
  • Efficient rubber-sealed ball bearings
  • Fully adjustable Ultra Shocks™ with X-ring technology
  • Progressive rate white powder coated shock springs feature a race-tuned responsive spring rate
  • Scale all-terrain front and rear tires offer superior on- and off-road traction
  • The tires include performance foam inserts and they come pre-glued on satin-finish 2.2" Slash wheels
  • ProGraphix® multi-colored painted body is available in red, blue, red/gunmetal, and blue/gunmetal
  • TQ Radio System
  • Slash is backed by unparalleled Traxxas support and parts availability

XL-5 Electronic Speed Control

Designed and engineered by Traxxas, the XL-5 Electronic Speed Control handles the elements while smoothly supplying power to the motor. This high-performance ESC is packed with impressive specifications that are normally only found on more expensive high-end replacement units. The XL-5 features a completely waterproof design, three throttle profiles, Thermal Shutdown Protection, 4-8 cell compatibility, and built-in BEC. High frequency operation combined with ultra-low resistance make the XL-5 an efficient and ultra-smooth fully proportional speed control. An exclusive feature on the XL-5 is the patent pending Training Mode™. This profile reduces the overall power output of the XL-5 by 50% making it easier for young or new drivers to develop their control skills before unleashing full-power operation. The XL-5 is manufactured by Traxxas to ensure the highest level of quality and support.

Traxxas High-Current Connectors

The XL-5 electronic speed control comes equipped with the revolutionary Traxxas High-Current Connectors. Designed to handle high-current applications, Traxxas Connectors effortlessly funnel the battery's total power to the electronics keeping things running cool and at full capacity.

Titan® 12-Turn 550 Modified Motor

The Slash includes a powerful Titan 12T 550 modified motor with internal cooling fan. The Titan’s over-sized armature (30% larger compared to 540-sized armatures) is equipped with 12-turns of pure copper wire for big torque and increased power-handling capabilities. Lower running temperatures are achieved with the integrated cooling fan. The Titan 12T requires very little maintenance and is designed for consistent torque and high speeds from run to run, without fading.

Beyond the specs, the Titan 12T is made for dirt-roosting torque, lightning-quick acceleration, big-air jumps, and just about any other 4-wheel fun that demands real horsepower.

Digital High-Torque Waterproof Steering Servo

A race truck needs a powerful steering servo for responsive performance. The waterproof steering servo (#2075) uses O-ring seals to keep the fun going when things get wet. The Traxxas digital high-torque servo provides precise steering authority and speed for wheel-to-wheel racing in the back yard or on the track.

Sealed Watertight Receiver Box

A ground-breaking new sealed receiver box is another Traxxas innovation that puts the Traxxas Slash Short-Course Truck in a league of its own. The antenna and servo wires route neatly through a special water-tight seal. A custom blue O-ring seals the receiver box to protect the receiver from water. The receiver can be removed for service and aftermarket receivers can be installed without losing the sealing properties of the box. An aluminum antenna crimp nut looks good and holds the antenna tube securely in place. Patent pending.

Four Channel Micro Receiver

A four-channel Traxxas micro receiver saves weight and space, and it conveniently fits in the sealed watertight receiver box.

Securely Mounted Electronics

The ESC, receiver, and steering servo are screwed to the chassis for ultimate mounting security. There’s no servo tape to loosen over time from dirt, heat, water, and collisions.

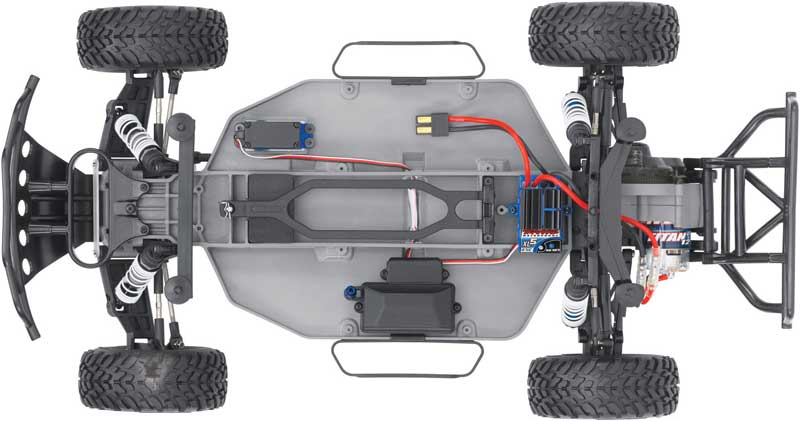

Long-Wheelbase Chassis

Designed from the ground up, the new chassis features a 13.2" wheelbase while offering over 3.5 inches inches of ground clearance. The new chassis includes drain holes and a battery tray channel for routing servo wires to the receiver. Optional electronic speed control mounting bosses are incorporated into the chassis, making it easy to upgrade to the Extreme Power of the Velineon Brushless Power System. For race track competition, a transponder mount is located under the front shock tower when every second counts.

Adjustable Battery Hold Down

The unique chassis design allows the use of 6-cell stick or side-by-side style battery packs and 7-cell stick, side-by-side, and hump battery packs for unmatched versatility. The extended chassis enables the various battery packs to be positioned forward or backward for front/rear weight bias tuning. An optional battery hold down kit is available for use with oversized batteries.

Chassis Nerf Bars and New Body Mounts

Integrated chassis nerf bars offer side body support for door to door racing action. Newly designed body mounts incorporate reinforced washers to support the short course truck body during big-air jumps and high-speed runs.

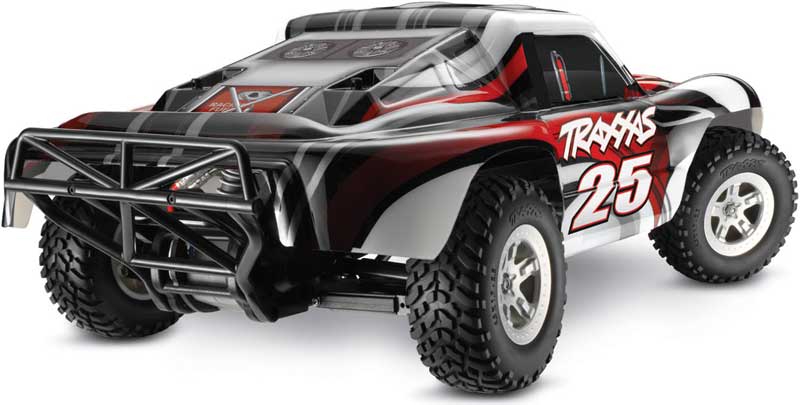

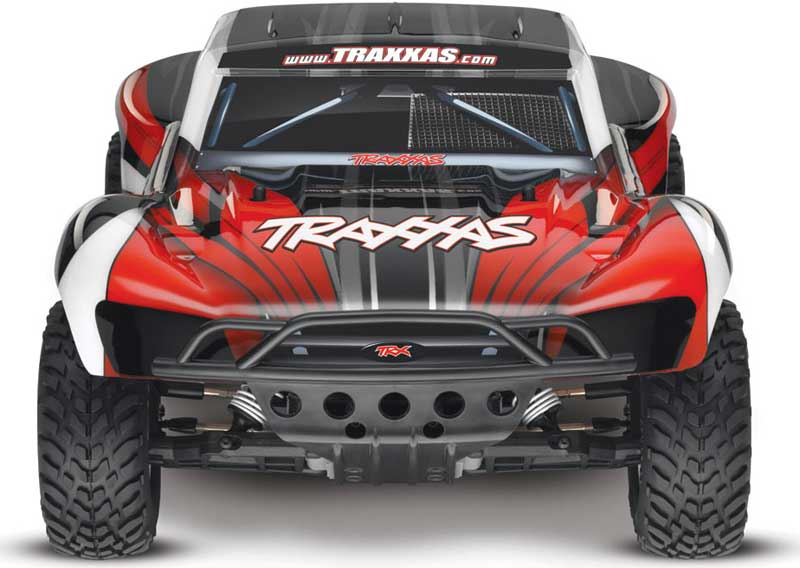

Scale Front and Rear Bumpers

Engineered to handle the abuse of bumper to bumper bashing, the scale tube-style bumpers are designed to absorb brutal impacts while looking the part of a true short course race truck.

Tires and Wheels

Designed for all-terrain action, each corner of the Slash is equipped with soft-compound tires that are mounted and pre-glued on impressive 2.2" satin-finish wheels. The tires deliver the perfect balance of forward traction and side bite on asphalt, dirt, and any other surface you throw at them. Performance tuned foam inserts help keep the truck firmly planted through the most extreme power-sliding turns and on the most demanding off-road terrain.

Adjustable Steel Turnbuckles

Factory fitted, heavy-duty steel turnbuckles allow camber and toe tuning. The Slash is completely adjustable right out of the box to fine tune handling agility and high-speed performance. Captured rod ends provide unmatched durability and they simply won't pop off.

Metal Gear Magnum 272™ Transmission

The Slash’s Magnum 272 transmission is assembled with all metal gear internals riding on ultra-smooth sealed ball bearings. Combined with the smooth 48-pitch gears, power is delivered to the rear wheels via durable telescoping U-joint driveshafts for maximum efficiency and articulation. The bulletproof Torque-Control slipper clutch and metal gear Magnum transmission are ready to handle any power system upgrade including the Extreme Power of the Velineon Brushless Power System.

Steel-Composite Planetary Gear Differential

The composite Traxxas planetary gear differential now features a steel ring gear with a nylon housing for long life. It uses hardened steel internal gears for maximum strength during rigorous off-road bashing. This type of differential requires virtually no maintenance and its efficient design puts maximum tire-shredding torque to the wheels.

Revo®-spec Torque-Control™ Slipper Clutch

Advanced Revo technology is utilized to manage the massive power from the Titan 12T motor. The Torque-Control slipper clutch uses special semi-metallic friction material and finned aluminum alloy pressure plates to dissipate heat and provide consistent traction control. The semi-metallic friction material remains stable across a wide temperature range to provide smooth, linear engagement you can count on, run after run. Spur gears can be removed and replaced without altering the slipper adjustment.

Motor Mount with Integrated Cooling Channels

The sealed gearbox protects the transmission components from dirt and rocks. The molded motor plate includes finned cooling channels where the motor mounts to the motor plate. The cooling channels work in conjunction with the internal Titan 12T motor fan to pull air through the motor for superior cooling.

Heavy-Duty Yokes with Telescopic Driveshafts

The Slash features heavy-duty drive yokes which are designed to provide maximum durability to withstand extreme power. The slider driveshafts are extremely durable, and they allow greater articulation for increased suspension travel.

Included Optional Pinion Gear

The Slash reaches its blistering 30+mph top speed on-road using the optional 23-tooth pinion gear (included) and a 7-cell 8.4V battery pack (sold separately). Out of the box, the installed 19-tooth pinion gear is just right for all-around, on- or off-road action.

Hex Hardware

Pro-quality, high-grade, metric hex-drive hardware is used throughout for extra strength, and easy maintenance and repair. The black-oxide rust-resistant finish provides a high tech look and feel.

Heavy-Duty Hub Carriers & Steering Blocks

The Slash features heavy-duty ball bearing front steering blocks and rear hub carriers. They utilize large 5x11mm ball bearings for long-term precision performance, smooth operation, and increased durability.

Rubber-Sealed Ball Bearings

Precision rubber-sealed bearings offer the ultimate in super low-friction performance and maximum protection in dusty environments. They are used in all exposed locations on the truck and are virtually maintenance free.

Oil-Filled Ultra Shocks™

The Slash’s oil-filled Ultra Shocks utilize X-ring technology for a perfect seal and super-smooth performance. They are fully tunable with a wide range of oils, springs, and pistons. Features include pressure bladders for air/oil separation and spring clips to precisely change the ride height and spring pre-load. They can be renewed in minutes with our inexpensive rebuild kits.

Progressive Rate Powder Coated White Springs

The race-tuned progressive rate springs soak up the small bumps as a softer spring would, but when the conditions get rough and the jumps get big, the progressive rate springs step up to the challenge by getting firmer as the suspension is compressed. The long-lasting, white powder coated finish sets the Slash apart from the pack.

Bellcrank Steering

High-performance bellcrank steering system minimizes bump steer to increase cornering stability.

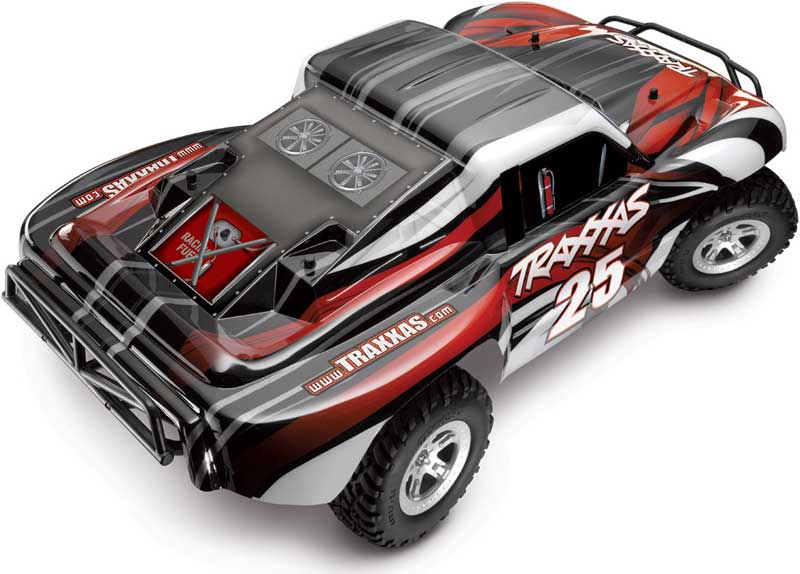

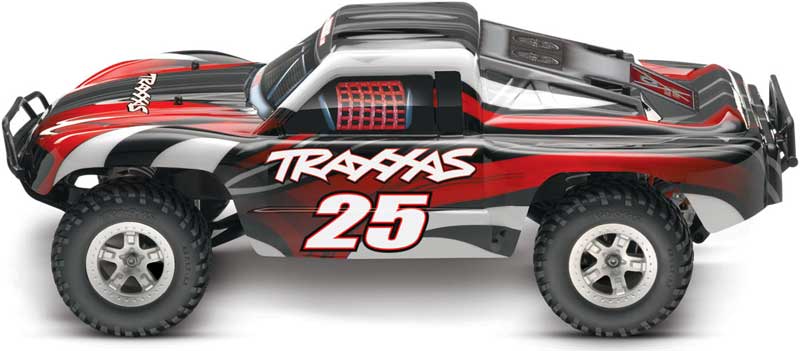

ProGraphix® Bodies

The Slash’s fully trimmed and painted ProGraphix body is available in Red, Blue, Red/Gunmetal, and Blue/Gunmetal. Decals are also applied to save you time and get you driving just minutes out of the box. Traxxas’ ProGraphix bodies are the hottest looking bodies around and are only available on Traxxas Ready-to-Race® models.

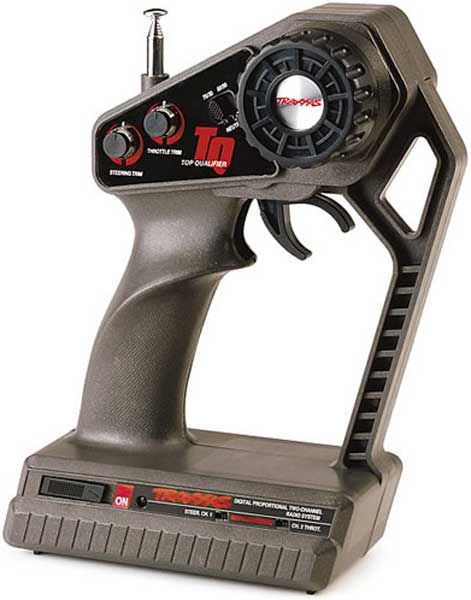

TQ Radio System

The included TQ radio system includes a high-power transmitter with a specially designed comfort grip, a precise high-torque steering servo, and a compact receiver for up to a quarter-mile range. The perfectly balanced TQ transmitter features servo reversing, a low battery indicator, electronic trim control, and it is digitally proportional for precise steering and throttle control.
