TOPA0705

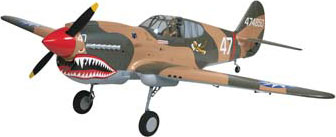

Giant P-40 Warhawk ARF Gold Edition

Product Info | Required Items | Replacement Parts
TOP FLITE

TOPA0705
Giant P-40 Warhawk ARF Gold Edition
By TOP FLITE
Discontinued
No Picture Available

More like this... ARF Scale R/C Aircraft Giant Scale
But only from... TOP FLITE
All items from... TOP FLITE


 Inventory Status Legend
StockStock availability for on-line ordering
0
$994.49
Warehouse ?
StockStock availability for pick up
0
$994.49
Warehouse ?
0
$994.49
Store - Stratford ?
1
$994.49
Store - Edmonton ?
0
$994.49
Store - Mississauga ?
0
$994.49
Store - Ottawa ?
0
$994.49
Store - Oshawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Giant P-40 ARF Cowl
$79.99

Giant P-40 ARF Gear Nacelle
$59.99

Giant P-40 ARF Stabilizer Set
$124.99

Giant P-40 ARF Fixed Tail Gear Bracket Assembly
$42.99
Giant P-40 ARF Rudder
$59.99

Giant P-40 ARF Canopy
$42.99

Giant P-40 ARF Fuselage
$309.99

Giant P-40 ARF Landing Gear
$28.99
SPECIFICATIONS
86 in
Wingspan:
1.262 sq in
Wing Area:
42-44 oz/ft²
Wing Loading:
72 in
Length:
23-24 lbs
Weight:
6Ch
Radio Requirements:
9 High Torque
Servo Requirements:
2.6-3.3 cu in
2-Stroke Engine Requirements:
2.6-3.3 cu in
4-Stroke Engine Requirements:
43-55 cc
Gasoline Engine Requirements:

FEATURES
  • op Flite's Giant Scale P-40 Warhawk is modeled after a restored full-size P40E owned and flown by Rudy Frasca of Frasca International in Urbana, Illinois.
  • The cockpit detail and instrumentation is just as you would find in a full-size P-40 Warhawk is included in this model.
  • Stab halves assemble with self-aligning aluminum mounting tubes, and all control surfaces except the rudder are pre-hinged to speed up final assembly.
  • The fiberglass cowl captures the lines of the P-40 perfectly. The iconic "shark mouth" nose art is painted on, and the exhaust ports are already in place. A scale-shaped, painted aluminum spinner is included.
  • Heavy-duty fixed landing gear is included with this model. For the ultimate in authenticity, optional Robart® retract gear can also be installed. The gear bolts easily into place following the instructions provided in the model's assembly manual.
  • The wings are reinforced to help the landing gear withstand the impact of a less-than-perfect touchdown.
  • Close attention to detail is evident in the split flaps, which are ribbed just like on the full-size P-40.
  • The Flying Tigers was the most popular P-40 trim scheme, and it has been faithfully reproduced on this ARF using flat finish MonoKote® covering on the built-up balsa and ply sections and paint on the fiberglass parts.

Made famous by Colonel Claire Chennault's "Flying Tigers" squadron at the onset of World War II, the P-40 Warhawk had one of the most impressive kill-to-loss ratios of any Allied fighter plane. Equally impressive is Top Flite's IMAA-legal replica of the P-40, which utilizes Gold Edition engineering to capture the exciting details of this revered warbird in a great-flying ARF!





click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES
  This is the radio controlled, glow or gasoline powered, almost ready to fly
Giant P-40 Warhawk from Top Flite.

FEATURES: Construction: Balsa & ply and fiberglass
Wing: One-piece
Aileron Control: Dual servo with dual servo flap control
Cowl: Painted fiberglass
Canopy: Clear with painted-on frame lines, detailed cockpit with
instrumentation
Spinner: Aluminum 5.5" (140mm) diameter, painted red
Covering: Matte finish MonoKote
Landing Gear: Heavy duty fixed, 5" (127mm) diameter main foam
wheels, 1-1/2" (38mm) foam tailwheel
**Robart makes a set of giant scale 100 rotating retracts for this
model ROBQ1665, see COMMENTS
Fuel Tank: 24oz (720cc), approximate
Building Time: Ready to fly in several hours
Warranty: Top Flite Models guarantees this kit to be free of defects
in material and workmanship at the date of purchase. This warranty
does not cover any component parts damaged by use or modification.

INCLUDES: Pre-built fuselage wing and tail assemblies, decals, landing gear,
wheels, spinner, hardware package, fuel tank, cockpit detail and
photo-illustrated instruction manual

REQUIRES: Engine: 2.6 - 3.3 cu in (43 - 55cc) gasoline or glow, (the DLE 55
DLEG0055 is recommended. The manual provides specific instructions
for the mounting of this engine. Modifcations may be needed if
mounting other engines. See COMMENTS
Muffler: To match selected engine, J'TEC makes a muffler (JTCG1040)
specifically for use with this airplane and the DLE 55 engine
Radio: At least 5-channel, 6-channel needed if installing retractable
landing gear
Servos: Nine, all control surfaces require high-torque servos, servos
with 40 oz-in of torque can be used for throttle, choke and air
valve
Heavy Duty 24" (310mm) Servo Extensions: Two for ailerons
Heavy Duty 12" (305mm) Servo Extensions: Five, two for flaps, two
for elevator, one for rudder
Y-Harnesses: One each for aileron, flaps & elevator
Receiver Battery: At least 1500mAh
Heavy Duty Switch Harness: Two
Charge Receptacle: Two
Servo Arms: Two 1", one 2"
Building and Field Equipment

SPECS: Wingspan: 86" (2,185mm)
Wing Area: 1,262in (81.4dm)
Weight: 23-24lb (10.43-10.88kg)
Wing Loading: 42-44oz/ft (128-134g/dm)
Length: 72" (1,830mm)
Airfoil: Semi-symmetrical
Center of Gravity (CG): 5.5" (140mm) back from the leading edge of
the top of the wing on both sides of the fuselage
Control Throws- Low Rate High Rate
Elevator Up & Down: 3/4" (19mm) 10 1" (25mm) 13
Rudder Right to Left: 1" (25mm) 9 1-7/8" (48mm) 18
Ailerons Up & Down: 3/4" (19mm) 13 1" (25mm) 18
Flaps: 2-1/2" (64mm) 36

COMMENTS: If modeler is using the DL-55cc engine, the stock muffler will not
fit in the cowling and the J'TEC Pitts Wraparound Muffler
(JTCG1035) must be used for a clean installation.

If modeler is installing the giant scale 100 rotating retracts, the
following items are required;
#157VR Large Air Control Kit, ROBQ2305
#169 Pressure Tubing 10' ROBQ2369
#160LWC LH Offset Pneumatic Tail Wheel, ROBQ2225

Following are the colors of Top Flite MonoKote used to cover this
model and the order numbers for 6" rolls;
Flat Olive Drab, TOPQ0510 Flat Dove Gray, TOPQ0511
Flat Tan, TOPQ0516 Missile Red, TOPQ0201
Flat Black, TOPQ0508

jxs 05/10/10
707768007059 0707768007059
