TOPA0703

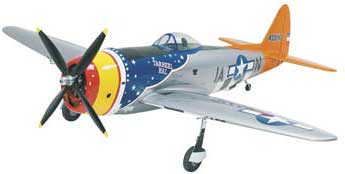

Giant P-47 Thunderbolt ARF

Product Info | Required Items | Replacement Parts
TOP FLITE

TOPA0703
Giant P-47 Thunderbolt ARF
By TOP FLITE
$1,169.99 CAD
Order Quantity:
No Picture Available

More like this... ARF Scale R/C Aircraft Giant Scale
But only from... TOP FLITE
All items from... TOP FLITE


 Inventory Status Legend
StockStock availability for on-line ordering
0
$1,169.99
Warehouse ?
StockStock availability for pick up
0
$1,169.99
Warehouse ?
0
$1,169.99
Store - Stratford ?
0
$1,169.99
Store - Edmonton ?
0
$1,169.99
Store - Mississauga ?
0
$1,169.99
Store - Ottawa ?
0
$1,169.99
Store - Oshawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Dummy Engine Giant P-47 ARF
$29.99

Cowl w/Chin Piece Giant P-47
$94.99

Canopy Giant P-47 ARF
$29.99

Fuselage Giant P-47 ARF
$349.99
Stab Tubes Giant P-47 ARF
$26.99

Landing Green Wires Giant P-47 AR
$39.99

Wing Set Giant P-47 ARF
$439.99

L/G Door Covers Giant P-47 ARF
$44.99
SPECIFICATIONS
85 in
Wing span:
1329 sq in
Wing area:
19.5-21.5 lbs
Weight:
34-37 oz/ft²
Wing Loading:
75 in
Length:
43-65 cc
Engine:

FEATURES
  • Construction: Plywood and built-up balsa sheeting
  • Wings: One-piece with wing joiner
  • Covering: Top Flite MonoKote
  • Cowl: Painted fiberglass
  • Landing Gear: Heavy duty fixed prebent wire
  • Wheels: Foam, two main and one tailwheel
  • Flap Control: Dual servo
  • Aileron Control: Dual servo
  • Cockpit: Plastic kit molded in white with instrument panel, left and right control panels, seat, floor and control stick
  • Radial Engine Replica: Molded plastic
  • Engine Mount: Adjustable
  • Stabilizer: Aluminum tubes automatically align stab halves and reduce workshop time
  • Building Time: Ready to fly in 15-20 hours
  • Spinner Hub: Two-piece aluminum
  • Hardware: Full set, IMAA legal




click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES
      This is the radio controlled, gasoline powered, almost ready-to-fly
P47D Thunderbolt Giant Scale Sport Airplane from Top Flite.
For intermediate to advanced modeler/flyers with moderate low-wing experience.
IMAA Legal

FEATURES: Construction: Plywood and built-up balsa sheeting
Wings: One-piece with wing joiner
Covering: Top Flite MonoKote
Cowl: Painted fiberglass
Landing Gear: Heavy duty fixed prebent wire
Wheels: Foam, two main and one tailwheel
Flap Control: Dual servo
Aileron Control: Dual servo
Cockpit: Plastic kit molded in white with instrument panel, left and
right control panels, seat, floor and control stick
Radial Engine Replica: Molded plastic
Engine Mount: Plywood firewall
Stabilizer: Aluminum tubes automatically align stab halves and reduce
workshop time
Building Time: Ready to fly in 15-20 hours
Spinner Hub: Two-piece aluminum
Hardware: Full set, IMAA legal
Warranty: Top Flite Models guarantees this kit free from defects
in material and workmanship at the date of purchase. Warranty
does not cover any component parts damaged by use or modification.

INCLUDES: Pre-built and covered wings, fuselage and tail assemblies, decals,
landing gear, wheels, hardware, spinner hub, hardware package
fuel tank, replica radial engine, cockpit kit and photo-illustrated
instructions

REQUIRES: Radio: 5 - 7 channel
Servos: 50 oz-in torque, 2 each for elevators, ailerons and flaps,
1 each rudder and throttle
Micro, 1 if retracts are installed
1 standard servo for optional choke
Four 6" (152mm) Servo Extensions: Throttle, optional choke, ailerons
and flaps
One 24" (609mm) Servo Extension: Ailerons
Four 6" (152mm) Y-Harness: Elevator, rudder/steering, ailerons and
flaps
Engine: 2.6 - 4.0 cu in (43 - 65cc) gasoline powered
Building and Field Equipment: Tools, propeller, fuel filter, foam
rubber padding

SPECS: Wingspan: 85" (2160mm)
Wing Area: 1329 inē (85.7 dmē)
Weight: 19.5-21.5 lb (8.84-9.75 kg)
Wing Loading: 34-37 oz/inē (104-113 g/dmē)
Length: 75" (1905mm)
Center of Gravity: 6-3/8" (162mm) back from the leading edge of the
wing at the fuselage
Control Throws- Low Rate High Rate
Elevator: Up & Down 1/2" (12.7mm) 8° 3/4" (19.1mm) 12°
Rudder: Right to Left 1-3/8" (35mm) 16° 1-7/8 (47mm) 22°
Ailerons: Up & Down 1/2" (12.7mm) 10° 3/4" (19.1mm) 15°
Flaps: 2-3/8" (60mm) 34° down

COMMENTS: For optional retract landing gear, the following Robart components
are recommended:
ROBQ2305 Robart #157VRX Large-Scale Deluxe Air Control Kit
ROBQ2369 Robart #169 10' (254mm) Red & Purple Pressure Tubing
ROBQ1636 Robart Main Gear
ROBQ2225 Robart Tail Gear
ROBQ2395 Robart #190 Air Line Quick Disconnects

Following are the Top Flite MonoKote colors used on this model and
order numbers for 6' rolls;
Aluminum TOPQ0205 Black TOPQ0208
Orange TOPQ0202 Sapphire Blue TOPQ0226
White TOPQ0204 Missile Red TOPQ0201

jxs 7/15/09
ir/jxs
