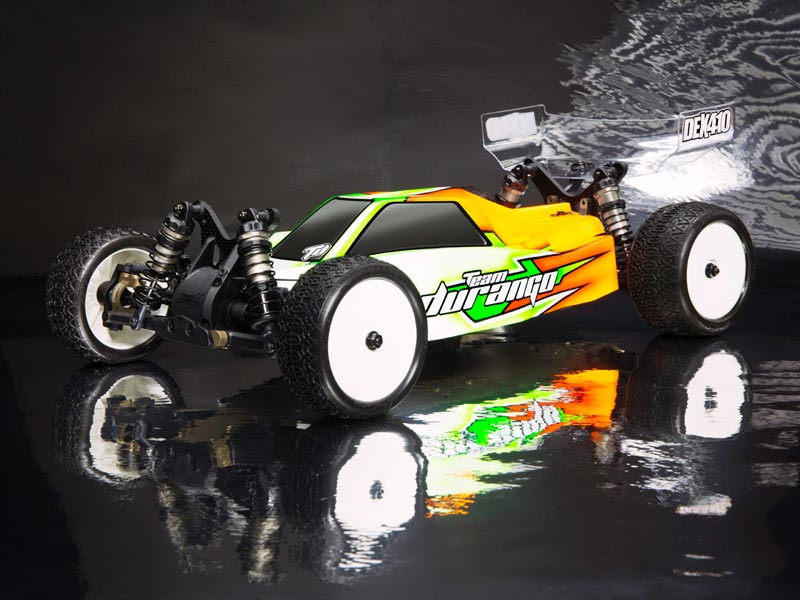

DEX410V5 1/10th Scale Electric 4WD Buggy

Product Info | Replacement Parts | Optional Items
RESOURCES

Replacement Parts (59)
Optional Items (64)
TEAM DURANGO

TDR102036

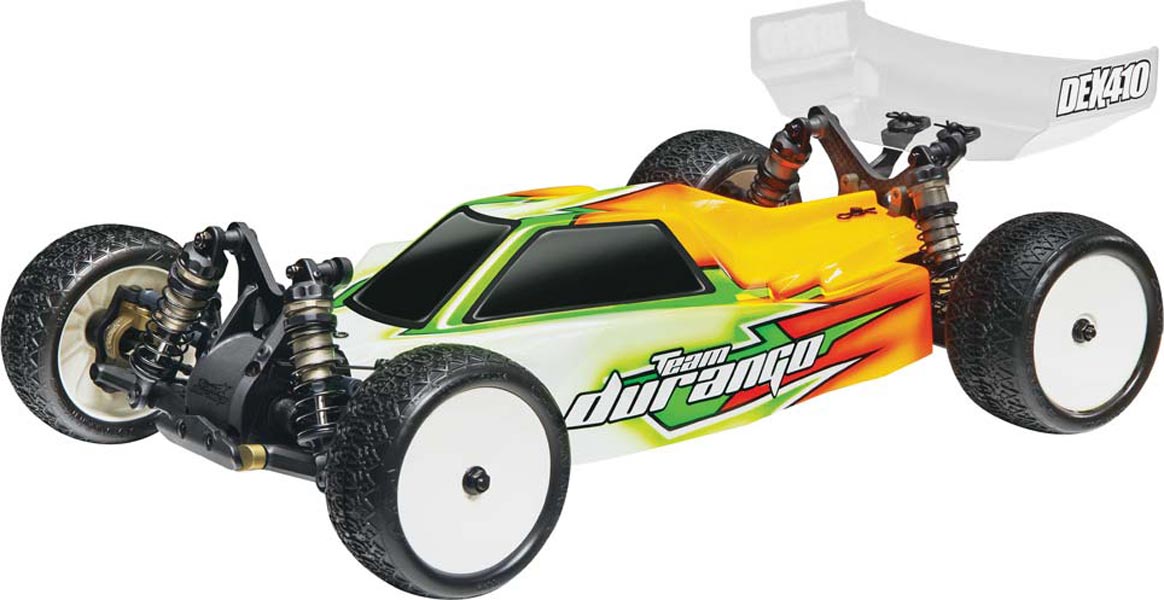

DEX410V5 1/10th Scale Electric 4WD Buggy
By TEAM DURANGO
Discontinued
Click to Enlarge
click to enlarge

More like this... R/C Electric 4WD Buggy Kits
But only from... TEAM DURANGO


 Inventory Status Legend
Stock availability for on-line ordering
0
$419.99
Warehouse ?
Stock availability for pick up
0
$419.99
Warehouse ?
0
$419.99
Store - Charlottetown ?
0
$419.99
Store - Edmonton ?
0
$419.99
Store - Mississauga ?
0
$419.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
SPECIFICATIONS
16 in
Length:
9.9 in
Width:
11.38-11.7 in
Height:
4WD With Center Diff
Drivetrain:

FEATURES

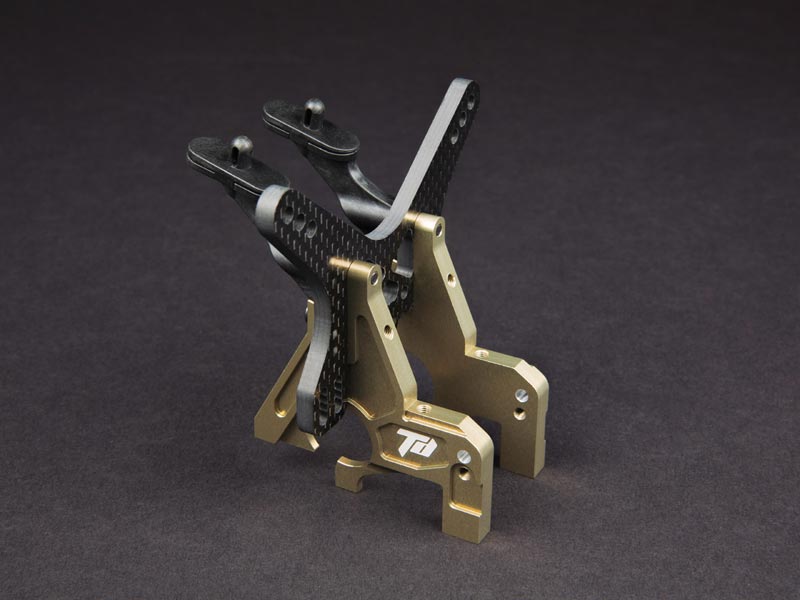

  • CNC machined aluminum rear bulkheads and carbon fibre shock tower.
  • Multi-axle wheel axles and driveshafts.

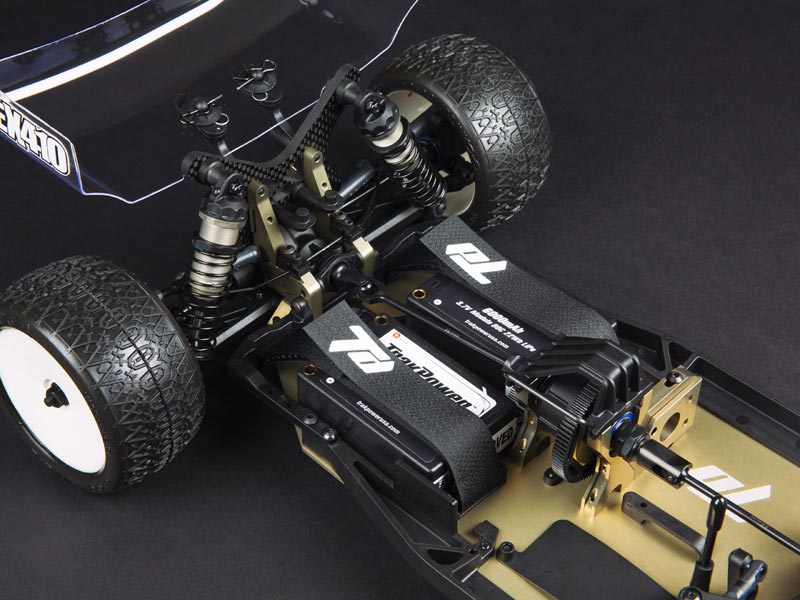

  • Specially designed u-brace battery retainer.
  • Rear composite 12mm hexes with o-ring retainers.

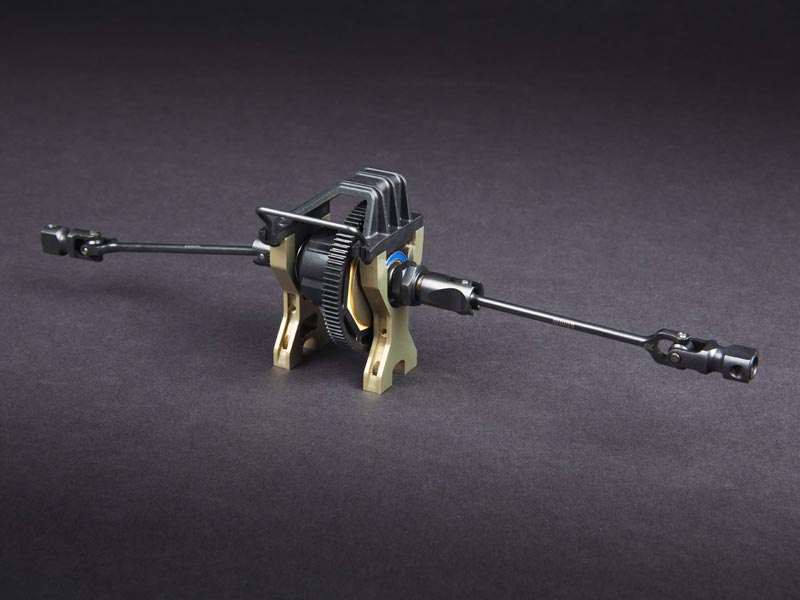

  • All-new centre slipper diff with lightweight cross-shafts.

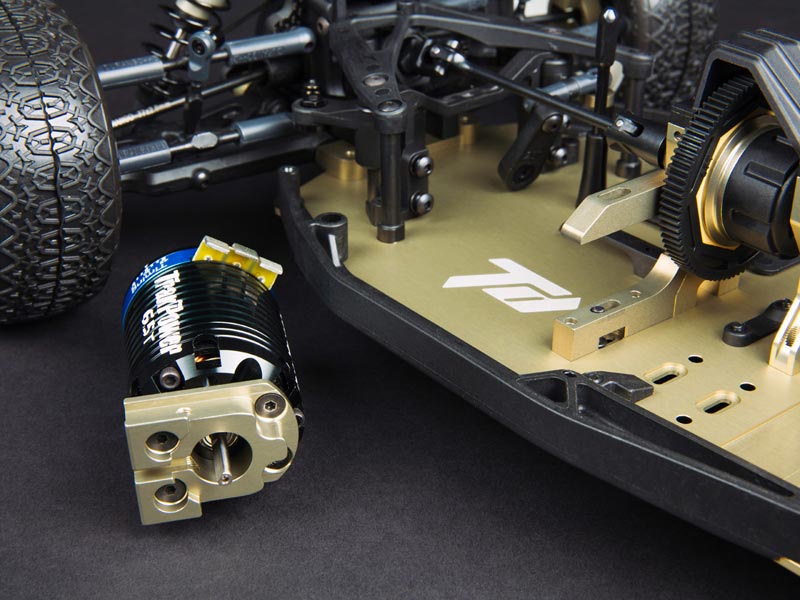

  • CNC machined aluminium centre bulkheads, motor mount and motor plate.

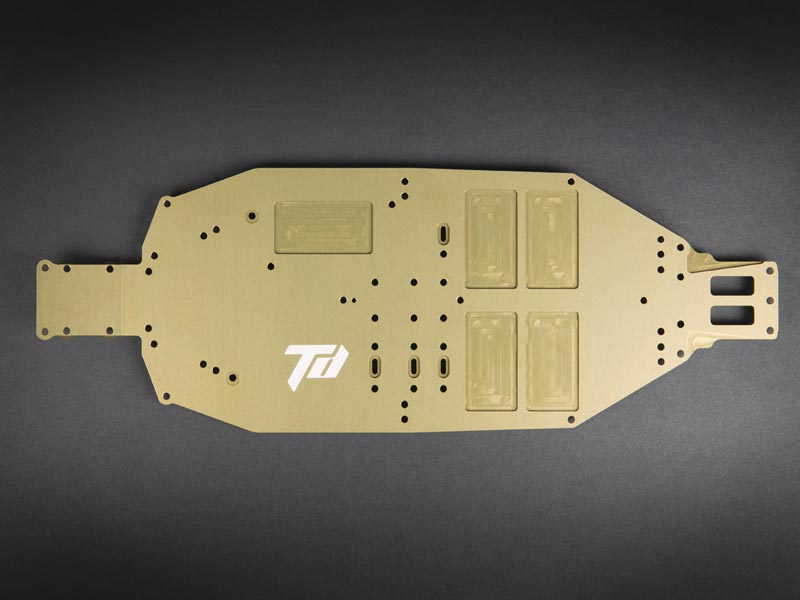

  • 2mm 6061-T6 hard anodised aluminium chassis plate.
  • Front composite 12mm hexes with o-ring retainers.

Includes:

DEX410v5 Buggy Kit with Shocks, Body, Decals, Hook and Loop Battery Straps and Instruction Manual

Requires:

Assembly, radio, electronics, motor, battery & tools and building equipment

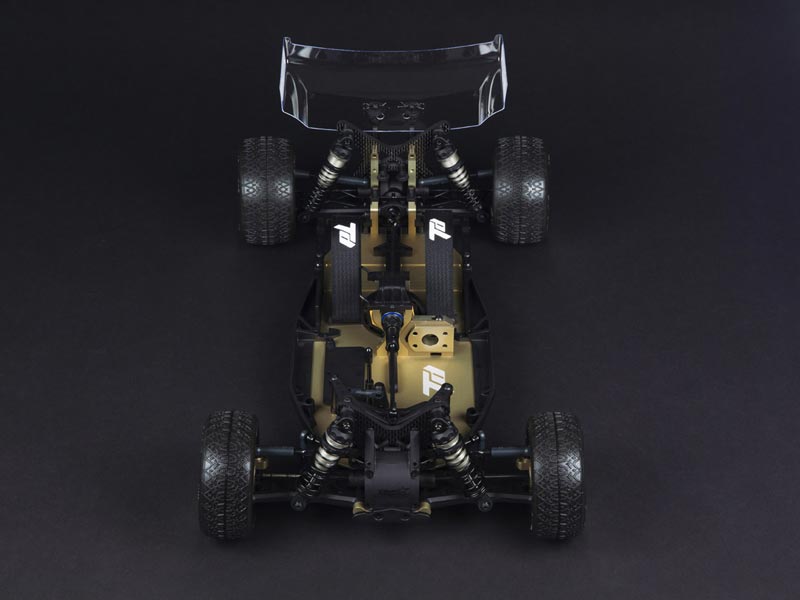

The DEX410v5 represents the apex of Team Durango 1/10 4WD development. Engineered to make you faster, designed to maximise your potential. Featuring an all-new chassis layout, that is designed to embrace the versatility that is required to lay down fast laps, on a wide variety of track surfaces. The DEX410v5 allows you to master peak performance.




VIDEO



click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES
          This is the Radio Controlled, Electric Powered, 1/10 scale
DEX410v5 Buggy Kit from Team Durango.

FEATURES: Chassis: Aluminum, 0.08" (2mm) thick, design allows a variety of
different weight distributions for various track conditions,
composite plastic side pods
Drive: Four wheel shaft with Multi-Axle Driveshaft that allows the
CVD mounting positions to be changed
Wheels: Dish type, white in color 14mm hex 2.2" (56mm) diameter
front width 1.02" (26mm) wide, rear width 1.5" (38mm) wide
Differentials: Three, oil-filled bevel gear

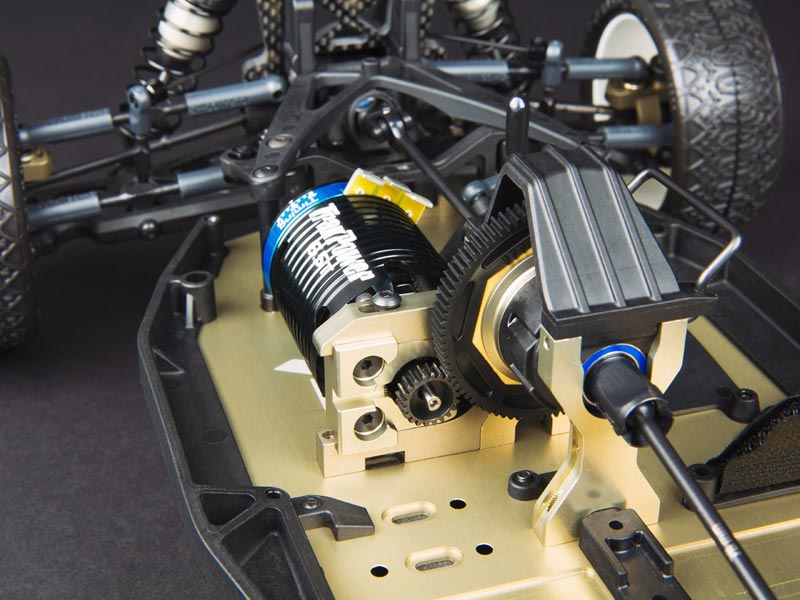

Motor Mount: Aluminum, adjustable with two screws for easy servicing,
provides various mounting positions
Body: Clear untrimmed polycarbonate

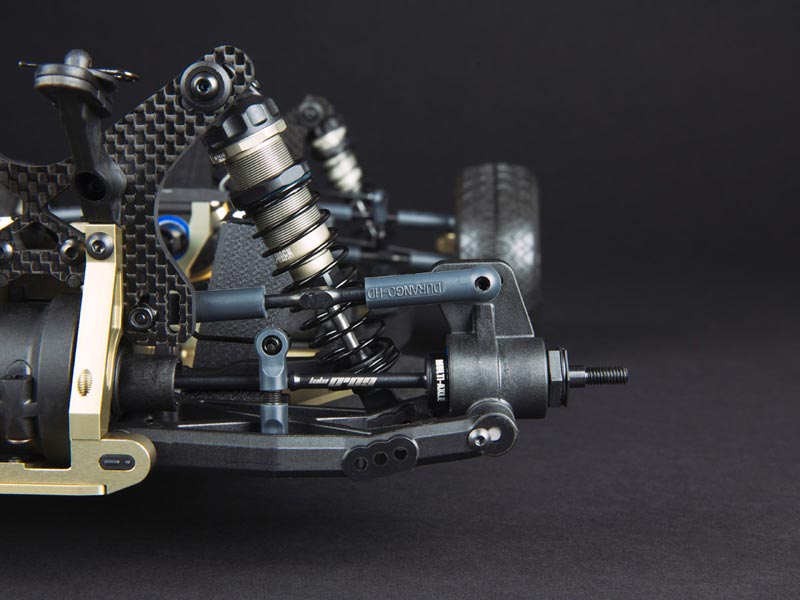

Shocks: Aluminum body oil-filled big bore with adjustable ride height
Shock Towers: 0.16" (4mm) thick carbon
Bulkheads: CNC machined 7076-T6 aluminum

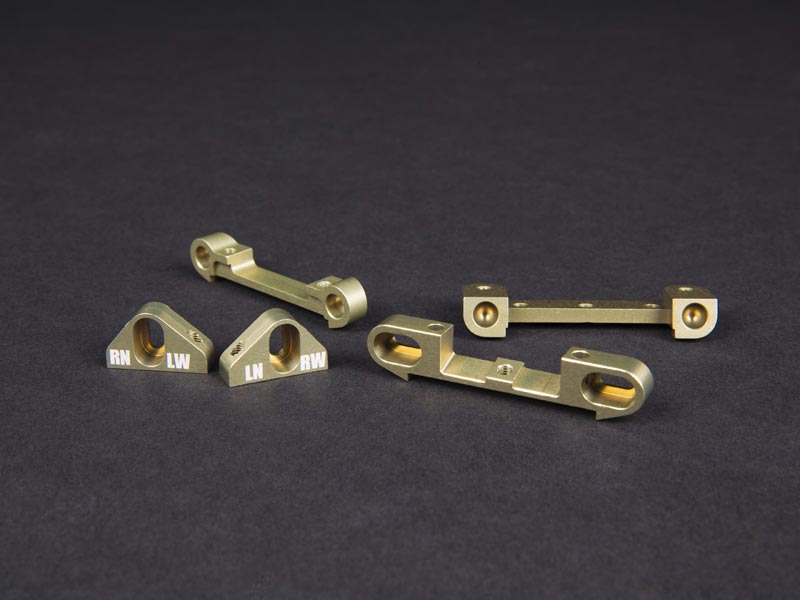

Rear Suspension: CNC machined 7075-T6 aluminium insert system allows
easy inboard rear-toe angle tuning

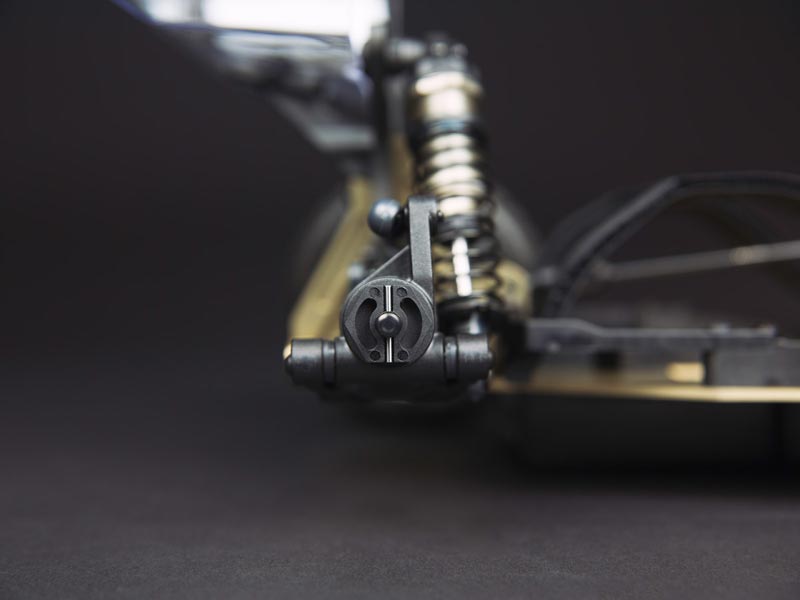

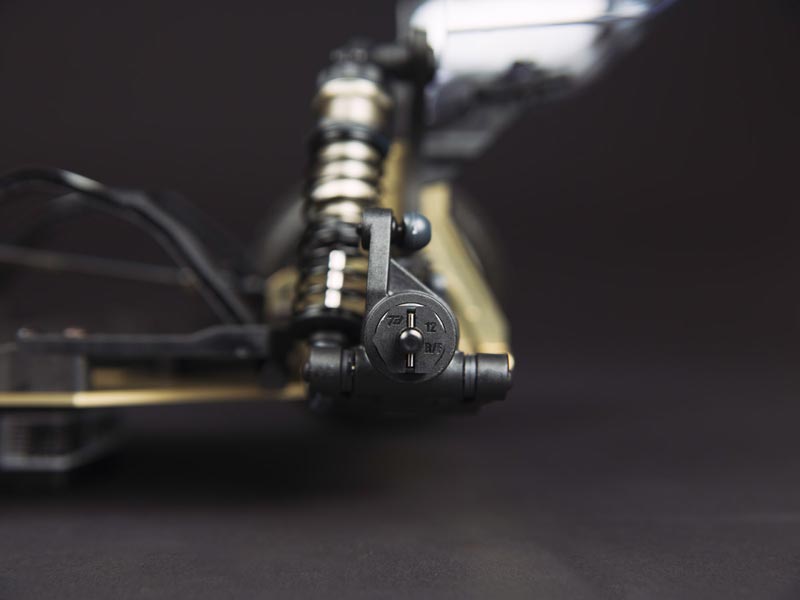

Wheel Hexes: 12mm and 14mm units for easy switching between industry
formats, O-ring secured hex drive pin on 12mm fittings prevents the
loss of drive pins
Geometry: Adjustable wheelbase, anti-squat and droop settings
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle

INCLUDES: DEX410v5 Buggy Kit with Shocks, Body, Decals, Hook and Loop Battery
Straps and Instruction Manual

REQUIRES: Radio: 2-channel
Motor: Race specification brushless, 17.5 turn stock - 5.5 turn
modified
Pinion Gear: 48 pitch, number of teeth to be determined by motor
choice
ESC: To match selected motor

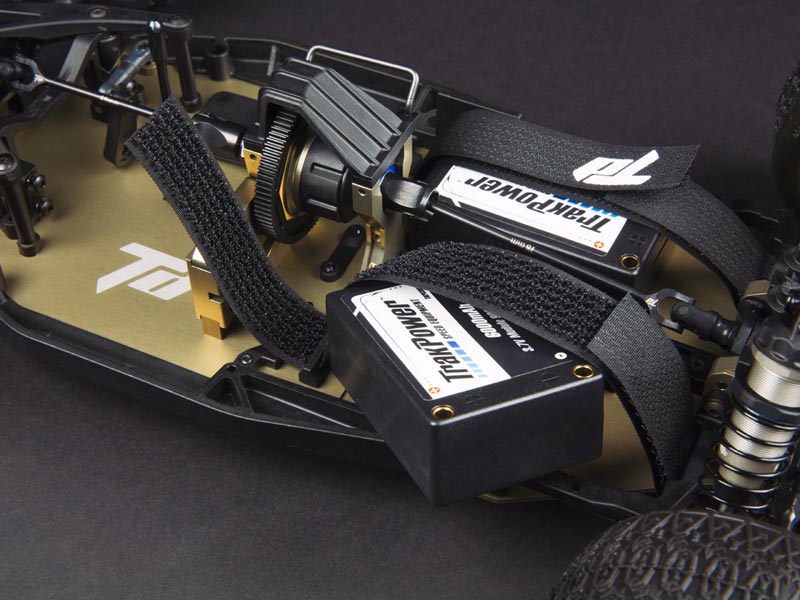

Battery: 2S LiPo, chassis is saddle and shorty pack compatible
Battery Charger: Compatible with selected battery
Tires: 1.02" (26mm) front, 1.5" (38mm) wide rear
Wheels: 1/10 scale buggy w/12 or 14mm hexes
Shock Oil: Silicone, slightly heavier weight recommended for front
Diff Oil: Silicone
Charging Bag, Building and Track Equipment

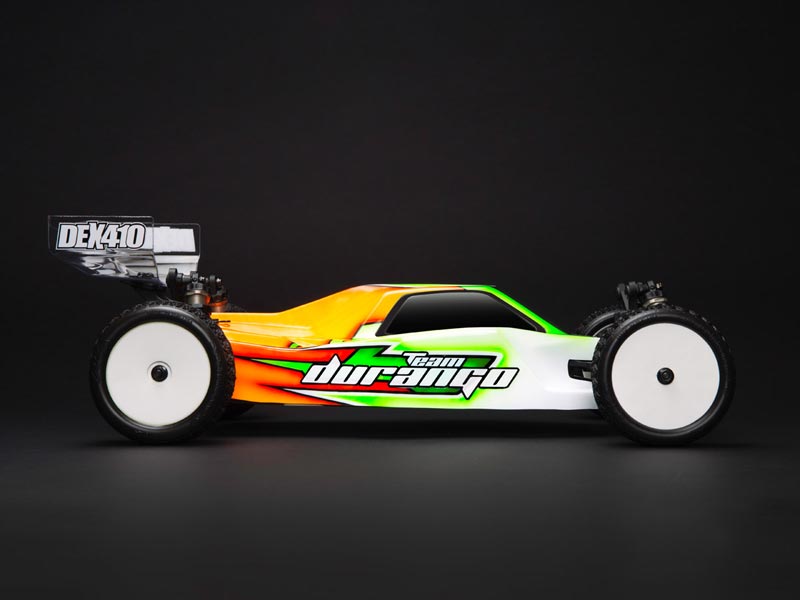

SPECS: Vehicle;
Length: 16" (407mm)
Width: 9.9" (250mm)
Wheelbase: 11.38-11.7" (289-298mm) adjustable
Racing Weight: 3.9lbs (1.8kg) approximate
Internal Gear Ratio: 2.47:1
Body;
Length: 12.1" (308mm)
Width: 5.9" (150mm) at widest point
Height: 3.3" (83mm)

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 10x15mm Slipper Clutch 1
2 10x15mm Fr Diff 1
2 10x15mm Rear Diff 1
2 5x10mm Fr Gearbox 1 TDRC1286
2 5x10mm Rear Gearbox 1 TDRC1286
2 5x10mm Fr Hubs 1 TDRC1286
2 5x13mm Fr Hubs 1
2 5x10mm Rear Hubs 1 TDRC1286
2 5x13mm Rear Hubs 1
4 4x7mm Steering 1 TDRC1260
