Home » Product Info »
TDR102035

DETC410v2 1/10 Electric Touring Car Kit

Product Info | Replacement Parts | Optional Items
TEAM DURANGO

TDR102035
DETC410v2 1/10 Electric Touring Car Kit
By TEAM DURANGO
Discontinued
Click to Enlarge
click to enlarge

More like this... R/C Electric On-Road 4WD Touring Sedan Kits
But only from... TEAM DURANGO
All items from... TEAM DURANGO


 Inventory Status Legend
StockStock availability for on-line ordering
0
$377.99
Warehouse ?
StockStock availability for pick up
0
$377.99
Warehouse ?
0
$377.99
Store - Charlottetown ?
0
$377.99
Store - Edmonton ?
0
$377.99
Store - Mississauga ?
0
$377.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Ball Bearing (4) (5x10x4mm) DEX410 DEX410R DESC
$10.49

Ball Bearing 4pcs (5x8x3mm) DEX210
$11.89

Ball Bearing 4pcs (3x7x3mm) DEX210
$11.89

Spur Gear 116t 64p DETC410
$4.89
Djoint Collar DETC410
$6.99

Rod End Set Type B
$4.89

Djoint Driveshaft Steel 41mm Front DETC410 (2)
$23.79

Setscrew M3x4mm (10) DEX410
$2.02
SPECIFICATIONS
365 mm
Length:
185 mm
Width:
1350 g
Weight:
254-261 mm
Wheelbase:
4WD Belt Driven
Drivetrain:
2+ channel
Radio Requirements:
High torque
Servo Requirements:
540 size
Motor Requirements (brushless):
To suit selected motor
ESC Requirements:
2s lipo, 4000mAh+ recommended
Battery Requirements:

click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES

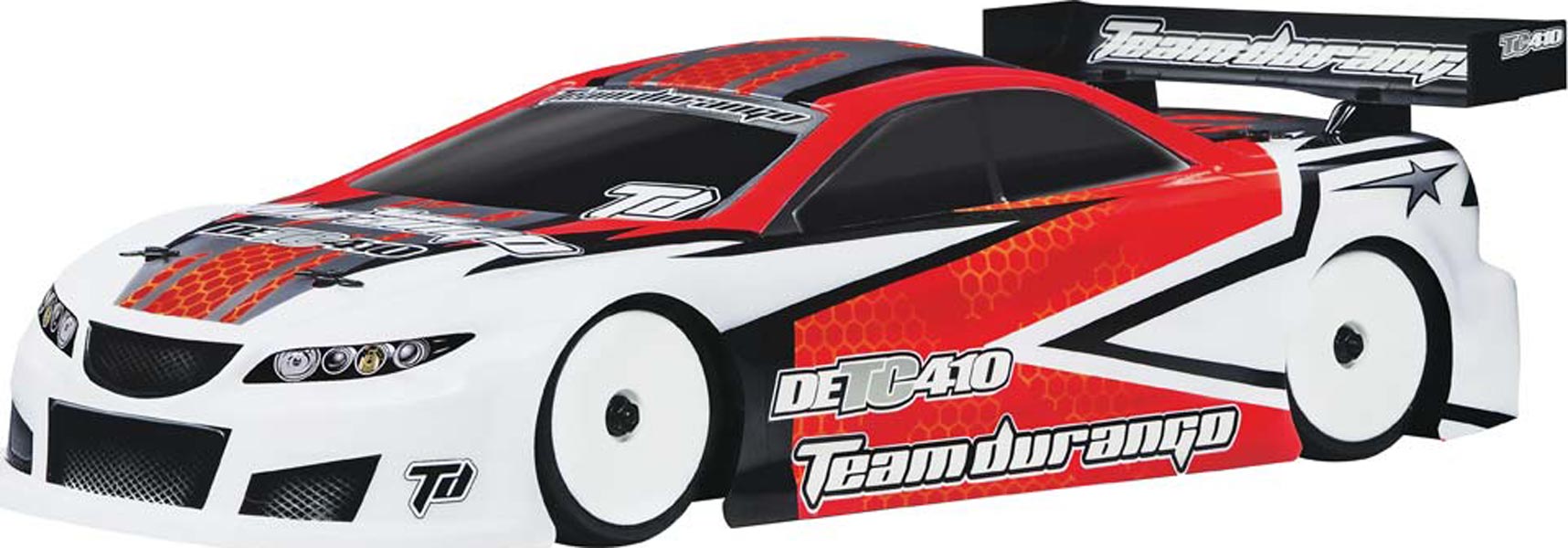

   This is the Team Durango 1/10 scale Electric Powered, Radio Controlled
DETC410V2 On-Road Competition Chassis Kit.

FEATURES: Chassis: 0.09" (2.25mm) thick laminated quasi isotropic carbon top
deck for multi directional flex and consistent traction
Drive: 4 wheel belt, with D-Joint front steel driveshafts to reduce
chatter, newly designed stronger front spool outdrives, gold
anodized aluminum driveshafts
Shocks: Black coated aluminum bodies, with option of one or two
O-rings in same cartridge, and emulsion or bladder shock absorber
option
Shock Towers: 0.12" (3mm) thick laminated quasi-isotropic carbon
Body Mounts: All adjustable in 1mm increments, with optional fifth
mounting post for reduced air deflection and added front
downforce
Motor Mount: Gold anodized 7075-T-6 aluminum
Spur Gears: Composite, 86T, 100T and 116T
86T for slow pace Stock racing classes 3.81 - 3.05 gearing range
100T for medium-pace Stock racing classes 6.50 - 3.55 gearing range
116T for fast-paced Modified racing classes 10.28 - 5.14 range
Differentials: Front, spool rear, gear diff, softer O-rings
improved diff cross shaft tolerances
Battery Mount: Fits all ROAR legal 2S LiPo batteries, adjustable
battery position from 0-6mm, tunable left to right weight balance
Steering Servo Mount: 2.2mm thick floating carbon fiber, floating
outer post for reduced twist under extreme load
Suspension: New stiffer carbon arms, front and rear sway bars
7075 T-6 Aluminum Components: Lower bulkheads, ride height adjustment
collars, locking wheel hex fittings, upper deck supports, rear
upper bulkhead, ball cup revision removes unwanted play and offers
greater impact resistance, tunable rear hinge-pin widths from
40.6 - 46.4mm
Caster: 2,4, 6 front adjustment, 0, 0.5, 1 and 1.5 rear
outboard adjustment, caster/toe-in refers to the angle of
the front suspension when viewed from the side of the car in
relation to the chassis
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Front Bumper: Foam
Geometry: Adjustable wheelbase, camber, caster, anti-dive setting
track, front and rear toe

INCLUDES: All components to build kit, decal sheet, thread lock, three spur
gears and instructions

REQUIRES: Radio: 2-channel with high torque steering servo (low profile
recommended)
Motor: 540 size race spec
ESC: To match selected motor
Battery: 2S 7.4V hardcase LiPo, at least 4000mAh
Battery Charger: LiPo compatible
LiPo Charging Sack
Body: 1/10 scale 190mm touring car
Wheels: 1/10 scale touring car
Tires: 1/10 scale touring car
Pinion Gear: 64dp, number of teeth to be determined by motor and
gearing requirements
Shock Oil: Silicone type
Diff Oil: Silicone type

SPECS: Length: 14.4" (365mm)
Width: 7.3" (185mm)
Wheelbase: 10 - 10.3" (254 - 261mm)
Internal Gear Ratio: 1.95:1
Weight: 2.97lbs (1350g), approximate, dependent on electrical items

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 10x15mm Spool Pulley 1 TDRC1340
2 10x15mm Diff Pulley 1 TDRC1340
2 5x10mm Layshaft Pulley 1
4 5x10mm Front Hubs 1
4 5x10mm Rear Hubs 1
4 3x7mm Steering 1 TDRC1244
3x5mm 1 TDRC1240
jxs 10/21/15
ir/jxs
5052126019515 5052126019515
TDRC0152
