TDR102020

DESC410v2 Pro 1/10 4WD Short Course Chassis

Product Info | Replacement Parts | Optional Items
RESOURCES

Replacement Parts (20)
Optional Items (9)
TEAM DURANGO

TDR102020
DESC410v2 Pro 1/10 4WD Short Course Chassis
By TEAM DURANGO
Discontinued
No Picture Available

More like this... R/C Electric Off-Road Racer Kits
But only from... TEAM DURANGO


 Inventory Status Legend
Stock availability for on-line ordering
0
$156.79
Warehouse ?
Stock availability for pick up
0
$156.79
Warehouse ?
0
$156.79
Store - Charlottetown ?
0
$156.79
Store - Edmonton ?
0
$156.79
Store - Mississauga ?
0
$156.79
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES

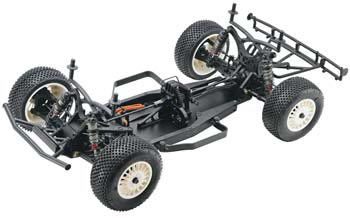

          This is the Electric Powered, Radio Controlled 1/10 Scale
DESC410v2 Pro Spec 4WD Short Course Truck Kit.

FEATURES: Chassis: Aluminum 0.12" (3mm) thick with aluminum upper chassis rails
and composite chassis spacers
Drive: Four wheel shaft
Spur Gears: 48DP for controlled class racing, and Module-1 for 550-
4-pole motor usage
Differentials: Front and rear with super heavy duty machine cut 42T
ring gears and center slipper-diff that combines diff and slipper
clutch in one unit
Shocks: Big bore, aluminum body, oil filled type (oil not included)
with additional blank pistons for fine tuning
Shock Towers: Molded composite
Suspension: Machined aluminum hangers with molded composite inserts
on the rear hanger for multiple anti-squat settings, front and
rear sway bars
Motor Mount: CNC aluminum
Wheels: 3" (76.2mm) diameter, 1.6" (41mm) wide, white in color
Bumpers: Molded composite
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle

INCLUDES: DESC410v2 Pro Spec 4WD SC Kit, Shocks, Wheels, 48DP Spur Gear, Mod-1
Spur Gear, Instruction Manual

REQUIRES: Radio: 2-channel with high-torque steering servo
Motor: 540 or 550 size
Pinion Gear: Number of teeth to be determined by motor
Body: 1/10 scale short course
Battery: 2S LiPo saddle pack
Battery Charger: For selected battery
Tires: Short course
Building and track equipment, silicone shock and diff oil

SPECS: Length: 21.9" (550mm)
Width: 11.2" (285mm)
Wheelbase: 13.0 - 13.2" (329 - 336mm) adjustable
Weight: 95.2oz (2700g) approximately
Internal Gear Ratio: 2.47:1

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 10x15mm Fr Diff Case 1 DTXC1595
1 12x18mm Diff Plate 1 DTXC1597
2 10x15mm Fr Diff Case 1 DTXC1595
2 5x10mm Center Driveshaft 1 DTXC1535
4 4x7mm Steering 2 DTXC1507
2 10x15mm Fr Hubs 1 DTXC1595
2 5x11mm Fr Hubs 1 DTXC1547
2 10x15mm Rear Hubs 1 DTXC1595
2 5x11mm Rear Hubs 1 DTXC1547

jxs 07/18/12
ir/jxs
5052126010475 5052126010475
TDRC0140
