TAM93042

Ferrari 458 TT-02D Drift Spec 4WD

Product Info | Replacement Parts | Optional Items
TAMIYA

TAM93042
Ferrari 458 TT-02D Drift Spec 4WD
By TAMIYA
$234.99 CAD    269.99
Save $35.00 (13%)

Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric On-Road Drift Car Kits
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$234.99
Warehouse ?
StockStock availability for pick up
0
$234.99
Warehouse ?
0
$234.99
Store - Charlottetown ?
0
$234.99
Store - Edmonton ?
0
$234.99
Store - Mississauga ?
0
$234.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Small Metric 4-Way Wrench
$4.99

Cera-Grease HG
$9.99

Body Pin Set
$4.99

RS540 Sport Tuned Motor 49/62
$38.99
TT-02 Lower Deck Hard/Blue
$9.99

3mm Grub Screw 44002
$5.99

CVA Mini Shock II V Parts
$11.99

Heat Resist Dbl Side Tape
$7.99
click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES

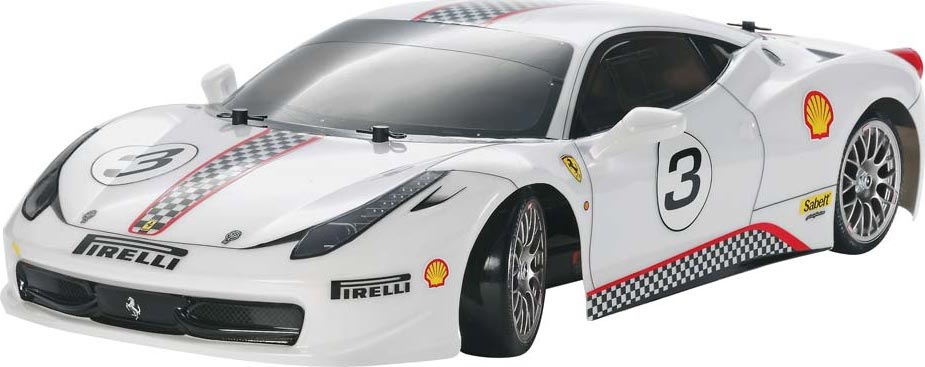

         This is the 1/10 scale, electric powered, radio controlled,
Tamiya TT02D Drift Spec Kit with the Ferrari 458 Challenge Body.

FEATURES: Chassis: Plastic, bathtub type with skid shaped underside to
minimize contact with the road surface
Drive: Four wheel, shaft driven
Motor: Tamiya Sport Tuned 540 brushed with aluminum heat sink
Electronic Speed Control: Tamiya TBLE-02S
Differential: Gear type
Tires: Slick rubber construction, Super Driftech 0.94" (24mm) wide
Wheels: Silver colored mesh type, 1.9" diameter (48.2mm), 0.94"
(24mm) wide, 12mm hex, +2 offset
Ball Bearings: Shielded
Suspension: Fully independent double wishbone
Shocks: CVA Super Mini oil-filled plastic body
Lights: LED head and tail lights
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Steering: Bellcrank type
Body: Clear untrimmed polycarbonate Ferrari 458 Challenge with
decals and window masks
Bumper: Front, foam

INCLUDES: Tamiya TT02D Drift Spec Chassis, with 540 Brushed Motor, Drift Tires,
Clear Body, 70 tooth Spur Gear, 22 tooth Pinion, ESC, Decals,
LED Lights, Window Masks, Instructions and Wheels

REQUIRES: Radio: 2-channel with high speed steering servo
Battery: 7.2V NiMH
Battery Charger: To match selected battery
Building and track equipment

SPECS: Specs such as finished size and weight of vehicle not provided
by manufacturer
Body
Length: 17.3" (439mm)
Width: 7.5" (190mm)
Height: 3.4" (86mm)

COMMENTS: For replacement, Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x11mm Spur Gear 1 DTXC1547
2 5x11mm Driveshaft 1 DTXC1547
4 8x12mm Differential 2 DTXC1581
2 8x12mm Rear Diff Assembly 1 DTXC1581
2 5x10mm Front Uprights 1 DTXC1535
2 5x10mm Rear Uprights 1 DTXC1535

jxs 05/04/16
ir/jxs
