TAM84427

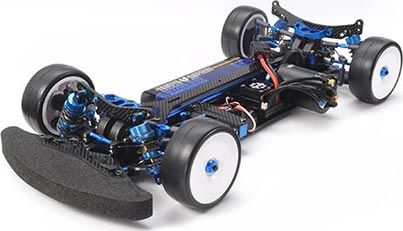

TB Evo.6 Ver.II Chassis Kit Evo 6 V2

Product Info | Replacement Parts
TAMIYA

TAM84427
TB Evo.6 Ver.II Chassis Kit Evo 6 V2
By TAMIYA
$659.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric On-Road 4WD Touring Sedan Kits
But only from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$659.99
Warehouse ?
StockStock availability for pick up
0
$659.99
Warehouse ?
0
$659.99
Store - Charlottetown ?
0
$659.99
Store - Edmonton ?
0
$659.99
Store - Mississauga ?
0
$659.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Cross Joint Double Cardan Joint Shaft (2)
$14.99

C Parts Carbon Reinforced Front Upright TRF418
$7.99

Alum Spacer Set 5.5mm
$14.99

RC Damper Large Diameter Spring Set TRF
$16.99

click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES
       This is the 1/10 scale Electric Powered, Radio Controlled, 4WD
TB EVO.6MS Ver II Chassis Kit.

FEATURES: Chassis: Aluminum 0.079" (2mm) lower deck, carbon fiber upper deck
Drive: Four wheel, aluminum driveshaft
Differentials: Sealed oil-filled gear type
Shock: Oil-filled Big Bore aluminum body, new short design
Shock Towers: Carbon fiber
Ball Bearings: Full set of shielded bearings included
Motor Mount: Aluminum
Suspension: Four wheel independent, stabilizers are
attached using ball connectors, redesigned front/rear arms
with attachment points in dedicated racing positions
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster/Toe-In: Adjustable front and rear, caster/toe-in refers to the
angle of the front suspension when viewed from the side of the car
in relation to the chassis

INCLUDES: TB EVO.6MS Ver II Chassis Kit with Shocks and Instructions

REQUIRES: Radio: 2-channel with high-speed steering servo
Motor: 540 size
_ ESC: Compatible with selected motor
Battery: 2S 7.4V LiPo at least 4000mAh
Battery Charger: To match selected battery
Pinion Gear: 06 module
Wheels: 0.94" (24mm) wide, 0 offset
Tires: Medium narrow 0.94" (24mm)
Body: Tamiya TB-04, TA06,and TA05 bodies will fit
Building and track equipment

SPECS: Length: 14.5" (370mm)
Width: 7.3" (185mm)
Wheelbase: 10.1" (257mm)

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty Bearing Set
2 4x8mm flanged Ctr Bulkhead 1 DTXC1517
2 5x8mm flanged Ctr Shaft 1 DTXC1527
2 5x8mm Diff 1 DTXC1523
2 10x15mm Diff 1 DTXC1595
2 5x10mm Rear Gearbox 1 DTXC1535
2 5x10mm Direct Drive Unit 1 DTXC1535
2 5x10mm Front Input Shaft 1 DTXC1535
4 5x10mm Front Axles 2 DTXC1535
4 5x10mm Rear Axles 2 DTXC1535
