TAM84422

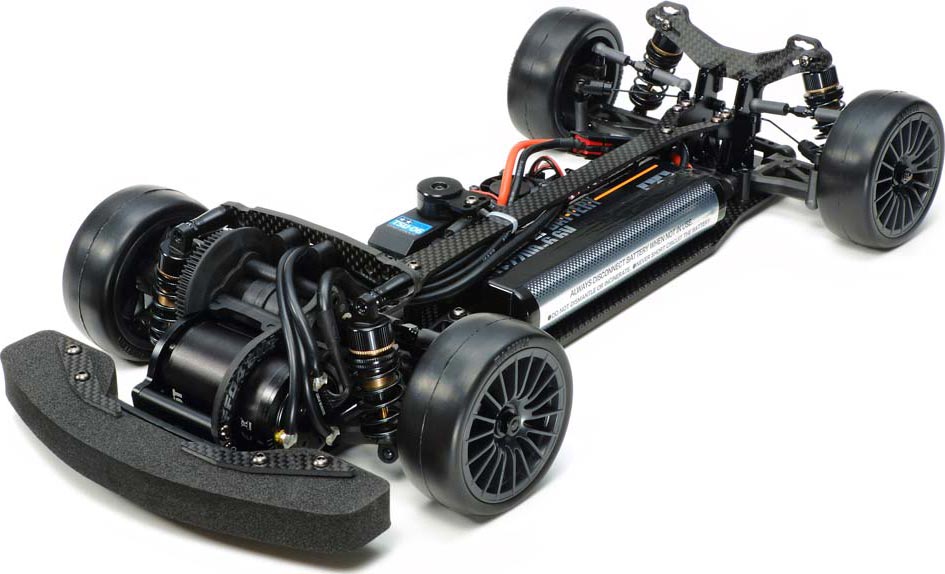

FF-04 Evo Chassis Kit Black Edition Fwd On-Road

Product Info | Replacement Parts | Optional Items
RESOURCES

Replacement Parts (15)
Optional Items (1)
TAMIYA

TAM84422
FF-04 Evo Chassis Kit Black Edition Fwd On-Road
By TAMIYA
$549.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric On-Road 4WD Touring Sedan Kits
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$549.99
Warehouse ?
Stock availability for pick up
0
$549.99
Warehouse ?
0
$549.99
Store - Charlottetown ?
0
$549.99
Store - Edmonton ?
0
$549.99
Store - Mississauga ?
0
$549.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES
               This is the Radio Controlled, Electric Powered
Tamiya FF-04 On-Road Chassis Kit.
Black Anodized Aluminum Parts Include;
Front Upper Arm Mount
Rear Bulkheads
Servo Mounts
Rear Upper Arm Mounts
Main Shaft
Middle Shaft

**Additional Technical Info Will Be Added When It Becomes Available.**

FEATURES: Chassis: Double deck, carbon fiber, 0.10" (2.5mm) thick lower,
0.08" (2.0mm) thick upper deck
Drive: Front wheel with double cardan drive shafts
Differential: Sealed oil-filled
Steering: Ball bearing equipped bell crank type, adjustable,
high-torque servo saver, aluminum steering mount and bridge
Ball Bearings: Fluorine sealed
Front Bumper: Foam, with aluminum mount
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when when viewed from front or behind vehicle
Caster: Adjustable front and rear, caster/toe-in refers to the angle
of the front suspension when viewed from the side of the car
relation to the vehicle
Pinion Gear: 26T
Spur Gear: 68T
Differential: Oil-filled gear type
Shocks: TRF Big Bore
Shock Towers: Carbon Fiber
Suspension: Four wheel independent

INCLUDES: FF-04 Evo Racing Chassis Kit, Decals, Shocks, Shock Oil, 68T Spur
Gear and Instruction Manual

REQUIRES: Radio: 2-ch with high-speed steering servo
Motor: 540 size
Battery: 6-cell NiMH stick pack with Standard connector
Battery Charger: To match selected battery
Wheels: 24mm with 0 offset
Tires: On-road slick type recommended
Body: For FF-04 EVO type chassis
Paint, building and track equipment


SPECS:

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 10x15mm Differential 1 DTXC1595
2 5x10mm Idler Gear 1 DTXC1535
2 5x10mm Counter Gear 1 DTXC1535
1 4x8mm Counter Gear 1 DTXC1511
4 5x8mm Steering 2 DTXC1523
4 5x10mm Front Hubs 2 DTXC1535
4 5x10mm Rear Hubs 2 DTXC1535

jxs 01/19/16
