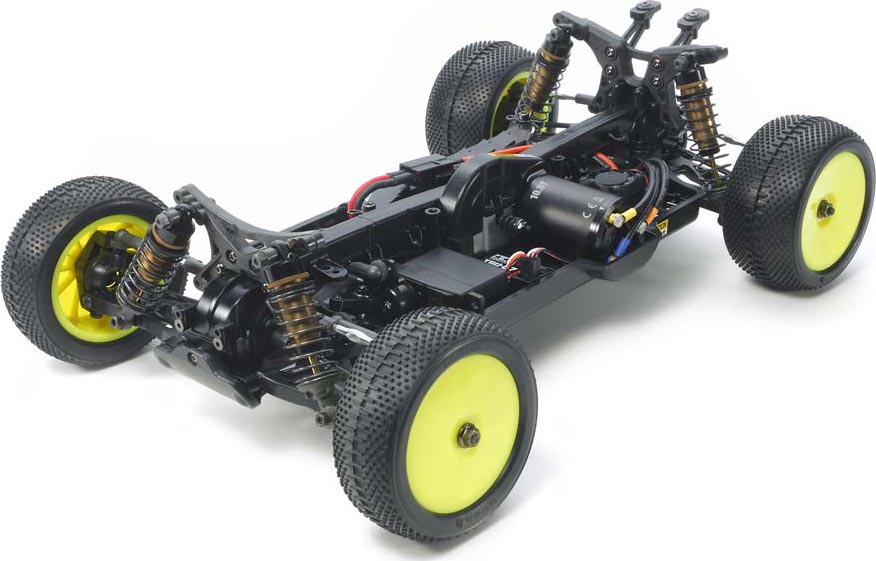

         This is the 1/10 scale electric powered, radio controlled,
Tamiya DB01 RRR Buggy Chassis Kit.

Hop-up option parts include;
Aluminum Rear Suspension Mount (Toe-In 3 degrees)
Aluminum Motor Heat Sink
Aluminum Hex Wheel Hubs
Hex Hub-Compatible Dish Wheels
39T Oil-filled Gear Differential Units
Aeration Big Bore Dampers
Universal Shafts w/Axle Ring
Slipper Clutch Set
Fluorine-Coated Ball Bearings
Hex Screws

FEATURES: Chassis: Race spec DB01RRR FRP (fiberglass reinforced nylon resin)
lower deck compatible with square shaped batteries
Drive: Four wheel two belt drive, tension adjustable, enclosed with
ABS resin covers to protect from dirt
Ball Bearings: Fluorine coated, full set included
Shocks: High performance aeration oil filled provide progressive
damping effect for smooth movement over small bumps and
absorption of heavy shocks from rough terrain
Gearboxes: Enclosed, front and rear
Differentials: Fluid filled and sealed
Transmission: Single speed
Motor Mount: Aluminum diecast and aluminum heatsink
Suspension: Four wheel independent double wishbone with high-traction
arms, aluminum mounts, same configuration as the Tamiya TRF501X
Wheels: Hex hub-secured
Caster: Adjustable front and rear, caster/toe-in refers to the angle
of the suspension when viewed from the side of the car in relation
to the chassis
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Steering: Bell-crank with servo saver

INCLUDES: DB01 RRR rolling chassis with oil filled aeration shocks, shock oil
91 tooth 48 pitch spur gear, decal sheet and instructions

REQUIRES: Radio: 2-channel with 1 standard servo and electronic speed control
Radio Batteries: 8 AA size
Motor: 540 size
Body: 1/10 scale buggy
Pinion Gear: 16-23T 48P depending on motor and track conditions
Battery: 6-cell flat pack with standard connector
Charger: AC/DC Timed or Peak for 6-cell battery
Rear: 1.6" (41mm) wide, 3.3" (83mm) outer diameter
Front: 1.2" (32mm) wide, 3.3" (83mm) outer diameter
Inner Diameter 2.2" (56mm)
Paint: Spray or brush-on for polycarbonate body
Misc. Items: Building and track equipment

SPECS: Length: 15.5" (395mm)
Width: 9.8" (248mm)
Height: 6.2" (157mm)
Weight: 2.4lbs (1075g)

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty Bearing Set
2 10 x 15mm Front Ball Diff 2 DTXC1595
2 10 x 15mm Rear Ball Diff 1 DTXC1595
2 5 x 8mm Front Ball Diff 2 DTXC1523
2 5 x 8mm Rear Ball Diff 2 DTXC1523
2 4 x 8mm Center Pulley 1 DTXC1511
2 5 x 10mm Front Axles 1 DTXC1535
2 5 x 10mm Rear Axles 1 DTXC1535
4 5 x 8mm Steering Arms 2 DTXC1523
