TB-04R Chassis Kit

Product Info | Replacement Parts

TB-04R Chassis Kit
$589.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric On-Road 4WD Touring Sedan Kits
But only from... TAMIYA
All items from... TAMIYA

 Inventory Status Legend
StockStock availability for on-line ordering
Warehouse ?
StockStock availability for pick up
Warehouse ?
Store - Stratford ?
Store - Edmonton ?
Store - Mississauga ?
Store - Ottawa ?
Store - Oshawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Carbon Rein Hub Carrier 4 Degree For Rev. Sus.
Low Friction Adjuster 5mm (8)
RC TB04 Pilot Shaft Front/Rear Aluminum
Alum Ball Nut 5mm Blue
5mm Alum Ball Connector Bl
Carbon Reinforced T Parts TB04
C Parts Carbon Reinforced Front Upright TRF418
click image to enlarge

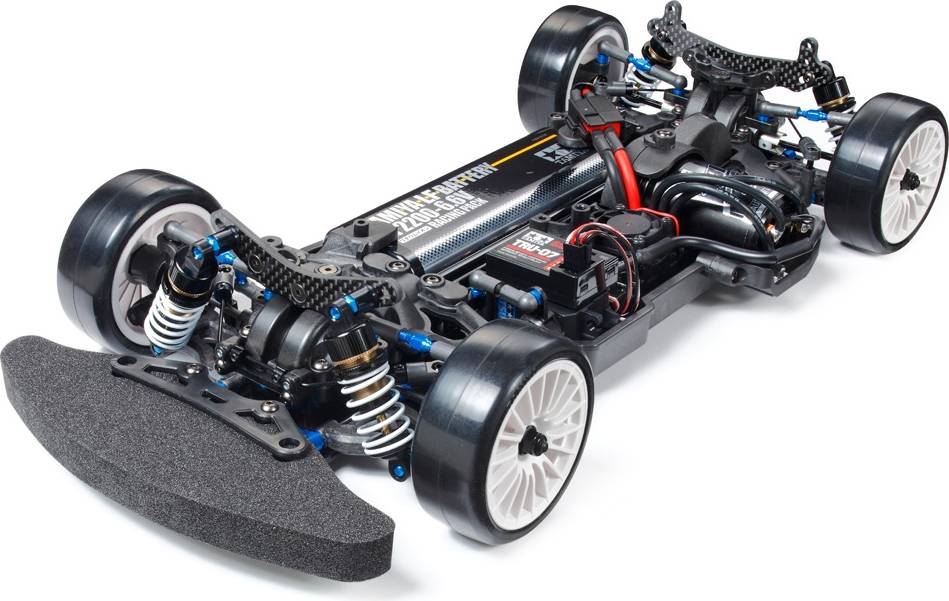

         This is the Radio Controlled, Electric Powered 1/10 scale
Tamiya TB-04R On-Road Chassis Kit.

Includes the following tune-up parts;
**TRF-418 design Suspension Arms, & Front and Rear Uprights**
**TRF Big Bore Dampers**
**Aluminum Suspension Mounts (1A x2pcs., 1XB, 1D)**
**54592 TB-04 Front Direct Coupling**

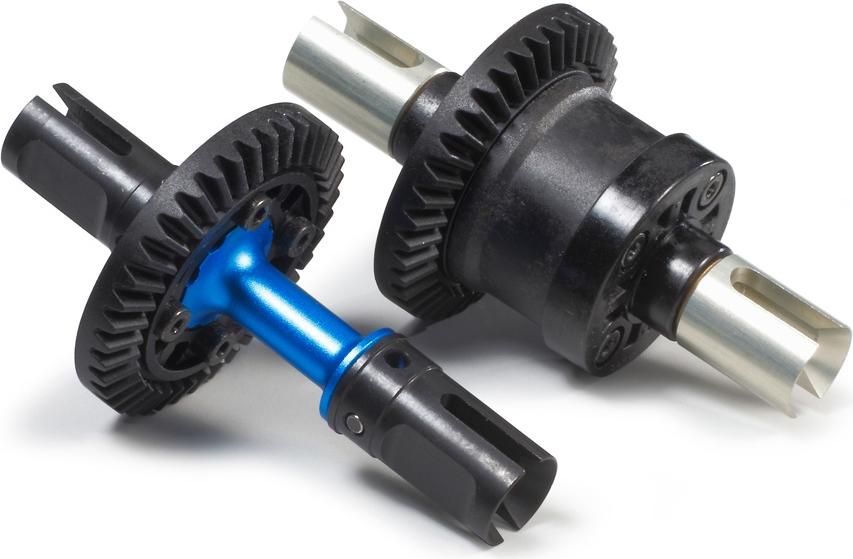

**Rear Gear Differential Unit**
**TB-04 Aluminum Steering Arms**
**Aluminum Turnbuckle Shafts**
**Hex Screws**
**Two Lightweight Rear Universal Shafts**
**TB-04R Carbon Front/Rear Damper Stays**
**54578 06 Hard Coated Aluminum 25T Pinion Gear**
**TB-04 Aluminum Steering Bridge**
**Front Double Cardan 44mm Drive Shafts**
**Full Ball Bearings**

FEATURES: Chassis: Carbon reinforced plastic
Drive: Four wheel shaft drive with dogbone driveline, front direct
coupling (spool)
Transmission: Newly designed case provides increased stability
during acceleration
Rear Differential: Sealed gear type
Suspension: Short reversible double wishbone, IFS (inboard front
suspension) positions front shocks horizontal and low to the
chassis to enable usage of low profile sports car bodies
Shocks: TRF Big Bore, oil-filled, titanium coated shafts
Shock Towers: Carbon plate 0.12" (3mm) thick
Steering: Bell crank with servo saver, long steering tie-rod system
refined from the TRF417 chassis
Motor Mount: Aluminum
Ball Bearings: Full set of shielded bearings
Bumper: Front foam
Spur Gear: 66T plastic
Track: Adjustable, outer edges of wheels measured side-to-side
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Steering Tie Rods: Adjustable, caster/toe-in refers to the
angle of the front suspension when viewed from the side of the car
in relation to the chassis

INCLUDES: TB-04R On-Road Chassis Kit with Decals, Shocks, Shock Oil, Spur Gear
and Instructions

REQUIRES: Radio: 2-channel with steering servo
AA Batteries for Transmitter
ESC: Compatible with selected motor
Motor: 540 size
Pinion Gear: 06 module
Battery: NiMH 7.2V 6-cell stick pack
Charger: To match selected battery
Body: 1/10 scale on-road car
Wheels: 1.9" (48mm) diameter, 1" (25.4mm) wide,
Tires: Medium narrow 0.94" (24mm) wide, with inserts
Building and track equipment

SPECS: Length: 14.6" (370mm)
Width: 7.4" (187mm)
Wheelbase: 10.1" (257mm)

COMMENTS: For Replacement or to Upgrade To Ball Bearings use:
Qty. Size Location Qty. Bearing Set
4 10x15mm Front Diff 2 DTXC1595
4 5x8mm Front Diff 2 DTXC1523
1 5x10mm Rear Pilot Shaft 1 DTXC1535
1 5x10mm flanged Rear Pilot Shaft 1 DTXC1541
1 4x8mm Spur Gear 1 DTXC1511
1 4x8mm flanged Spur Gear 1 DTXC1517
1 5x11mm Transmission Shaft 1 DTXC1547
1 5x9mm Transmission Shaft 1 DTXC1531
2 5x10mm Front Gearbox 1 DTXC1535
4 5x10mm Front Uprights 2 DTXC1535
2 5x10mm Rear Gearbox 1 DTXC1535
4 5x10mm Rear Axles 2 DTXC1535
2 3x7mm Steering Linkage 1 DTXC1506
