TAM84387

Neo Scorcher TT02B Bright Pink Metallic

Product Info | Replacement Parts | Optional Items
TAMIYA

TAM84387
Neo Scorcher TT02B Bright Pink Metallic
By TAMIYA
Discontinued
Click to Enlarge
click to enlarge

More like this... R/C Electric 4WD Buggy Kits
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$183.59
Warehouse ?
StockStock availability for pick up
0
$183.59
Warehouse ?
0
$183.59
Store - Charlottetown ?
0
$183.59
Store - Edmonton ?
0
$183.59
Store - Mississauga ?
0
$183.59
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Small Metric 4-Way Wrench
$4.99

3mm Grub Screw 44002
$5.99

Body Pin Set
$4.99

B Parts (upright) DF-02
$14.99
540 Johnson Motor
$28.99

Heat Resist Dbl Side Tape
$7.99

CVA Damper Set DT03
$33.99

Alum Motor Heat Sink TT02
$18.99
click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES

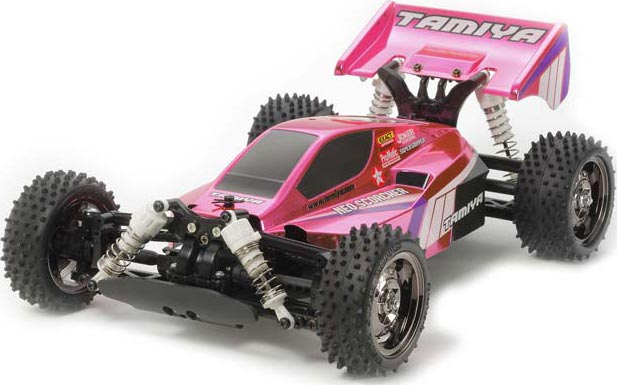

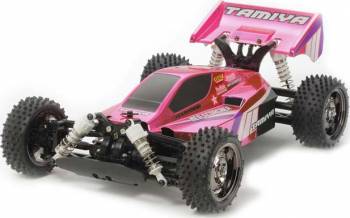

         This is the Radio Controlled, Electric Powered, 1/10 scale,
TT-02B Neo Scorcher Buggy Kit.
**This version includes the Bright Pink Metallic Body.**

FEATURES: Chassis: Plastic, TT-02B-uses TT-02 chassis as a base and adds
longer suspension arms, CVA shocks, and buggy bumpers
Drive: Four wheel shaft drive with plastic dogbones
Motor: 540 RS brushed, Torque Tuned
ESC: TBLE-02 brushless compatible
Differential: Gear type
Suspension: Fully independent double wishbone
Shocks: Oil filled plastic body, CVA
Tires: Rubber pin spike 3.2" (82mm) outer diameter
Wheels: 5-spoke plastic 2.04" (52mm) diameter, front width
1.1" (29mm), rear width 1.4" (35mm) with black chrome finish
Steering: Bellcrank type
Bumper: Front plastic
Body: Trimmed, bright pink metallic finish with rear wing
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable, front only caster/toe-in refers to the angle of
the front suspension when viewed from the side of the car in
relation to the chassis

INCLUDES: TT-02B Buggy Chassis with Brushed Motor, ESC, Pink Metallic Body,
Tires, Wheels, Decals, and Instruction Manual

REQUIRES: Radio: 2-channel with steering servo
Battery: 7.2V stick pack with standard connector
Battery Charger: For selected battery pack
Polycarbonate safe spray or brush-on paint
Track and maintenance equipment

SPECS: Vehicle
Length: 15" (380mm)
Wheelbase: 10.5" (266mm)
Body
Length: 10.5" (267mm)
Width: 5.7" (144mm)
Height: 3" (76mm)

COMMENTS: For replacement, Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x11mm Spur Gear 1 DTXC1547
2 5x11mm Drive Shaft 1 DTXC1547
2 5x11mm Fr Uprights 1 DTXC1547
2 5x11mm Rear Uprights 1 DTXC1547

jxs 09/17/14
ir/jxs
4950344843879 4950344843879
TAMC4390
