  • Kit includes TRF418 suspension arm and upright parts
  • Horizontally-positioned motor
  • Front and rear carbon fiber damper stays
  • TRF aluminum short dampers included
  • 3mm Hex screws are used throughout the kit for easier maintenance.

This is a limited edition release of the R/C TB-04 PRO chassis kit. The advanced on-road chassis is paired with upgraded parts, including some from the Tamiya Racing Factory TRF418 chassis, for a thrilling blend of high speed and crisp handling!

You will need...

- 2-Channel Radio and Receiver
- Electronic Speed Controller
- Steering Servo
- Body
- Paint
- Battery Pack
- Charger

click image to enlarge

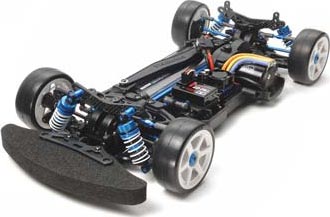

         This is the Radio Controlled, Electric Powered 1/10 scale
Tamiya TB-04 Pro II On-Road Chassis Kit.

Includes the following tune-up parts;
**TRF-418 design Suspension Arms, & Front and Rear Uprights**
**2-piece Lightweight Rear Universal Shaft Set**
**2-piece Front Universal Shaft Set**
**Hex Screws**
**Short Aluminum Touring Car Shocks**
**Carbon Front and Rear Shock Towers**
**Aluminum Drive Shaft**
**5mm Aluminum Ball Nuts and Connectors**
**5mm Flourine Coated Suspension Balls**
**5mm Aluminum Short Ball Nut**
**3x32mm Aluminum Turnbuckle Shaft**
**3x42mm Aluminum Turnbuckle Shaft**
**High-Torque Servo Saver (black)**
**Full Ball Bearings**

FEATURES: Chassis: Plastic
Drive: Four wheel shaft drive with dogbone driveline
Transmission: Newly designed case provides increased stability
during acceleration
Differentials: Gear type, 40T ring gears and 16T bevel gears
Suspension: Racers can choose between inboard and outboard front
suspension setup, fully independent double wishbone type,
TRF418 suspension arm and upright parts
Shocks: Aluminum body, oil-filled, short touring car type
Shock Towers: Carbon fiber 0.12" (3mm) thick
Steering: Bell crank with servo saver, long steering tie-rod system
refined from the TRF417 chassis
Motor Mount: New motor guard protects motor upon impacts
Ball Bearings: Full set of shielded bearings
Bumper: Front foam
Spur Gear: 66T plastic
Wheels: Six spoke white in color +2 offset, 1" (25.4mm) wide,
1.9" (48mm) diameter
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Steering Tie Rods: Adjustable, caster/toe-in refers to the
angle of the front suspension when viewed from the side of the car
in relation to the chassis

INCLUDES: TB-04 Pro On-Road Chassis Kit with Wheels, Shocks, Shock Oil, and

REQUIRES: Radio: 2-channel with steering servo
AA Batteries for Transmitter
ESC: Compatible with selected motor
Motor: 540 size
Pinion Gear: 06 module
Battery: NiMH 7.2V 6-cell stick pack
Charger: To match selected battery
Body: 1/10 scale on-road car
Tires: Medium narrow 0.94" (24mm) wide, with inserts
Building and track equipment

SPECS: Length: 14.6" (370mm)
Width: 7.4" (187mm)
Wheelbase: 10.1" (257mm)

COMMENTS: For Replacement or to Upgrade To Ball Bearings use:
Qty. Size Location Qty. Bearing Set
4 10x15mm Front Diff 2 DTXC1595
4 5x8mm Front Diff 2 DTXC1523
1 5x10mm Rear Pilot Shaft 1 DTXC1535
1 5x10mm flanged Rear Pilot Shaft 1 DTXC1541
1 4x8mm Spur Gear 1 DTXC1511
1 4x8mm flanged Spur Gear 1 DTXC1517
1 5x11mm Transmission Shaft 1 DTXC1547
1 5x9mm Transmission Shaft 1 DTXC1531
2 5x10mm Front Gearbox 1 DTXC1535
2 5x10mm Rear Gearbox 1 DTXC1535
2 5x10mm Rear Axles 1 DTXC1535
4 3x6mm Steering Linkage 2 DTXC1503

jxs 07/23/14
