FEATURES
  • Includes suspension components found on the high-end TRF418 race chassis kit.
  • Includes many carbon reinforced plastic parts.
  • Utilizes hex screws throughout the kit.
  • Unique dual drive system which features a rear gearbox in the rear and a dual belt system that drives the front wheels.
  • Centrally placed battery pack layout for optimum weight distribution.
click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES

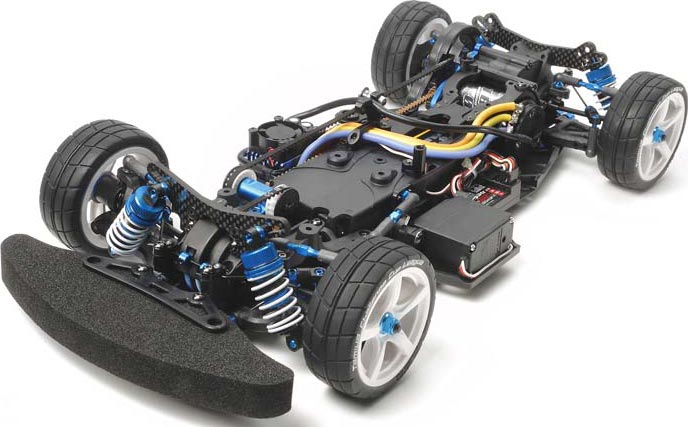

     This is the radio controlled, electric powered, 1/10 scale, on-road
Tamiya TA06-R Chassis Kit.

FEATURES: Chassis: Plastic with battery access on bottom
Drive: Four wheel, belt driven front wheels, gear driven rear wheels
Shocks: Oil-filled short configuration for lower ground clearance
Shock Towers: Carbon fiber 0.12" (3mm)
Rear Differential: Gear type
Suspension: Double wishbone with TRF418 standard arms, uprights and
mounts
Bumper: Front urethane
Motor Plate: Anodized blue aluminum with heat sink
Spur Gear: Plastic 06 module, 68 tooth
Ball Bearings: Full set, shielded
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle

INCLUDES: TA06-R Chassis Kit with Wheels, Decals, Shock Oil and Instructions

REQUIRES: Radio: 2-channel with steering servo
Electronic Speed Control: To match selected motor
Motor: 540 size
Pinion Gear: 06 module
Battery Pack: 7.2V 6-cell stick
Wheels: 0.94" (24mm) wide, 1.9" (48mm) diameter
Tires: 24mm medium narrow with inserts
Body: Tamiya TA05 and TA06 bodies will fit
Building and track equipment

SPECS: Length: 14.6" (371mm)
Width: 7.4" (187mm)
Wheelbase: 10.1" (257mm)

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 10x15mm Rear Diff 1 DTXC1595
2 5x10mm Gearbox 1 DTXC1535
2 4x8mm Gearbox 1 DTXC1511
2 10x15mm Front Diff 1 DTXC1595
2 3x7mm Steering Linkage 1 DTXC1506
2 4x8mm Center Pulley 1 DTXC1511
4 5x10mm Rear Axle 2 DTXC1535
4 5x10mm Front Axle 2 DTXC1535
