TAM84377

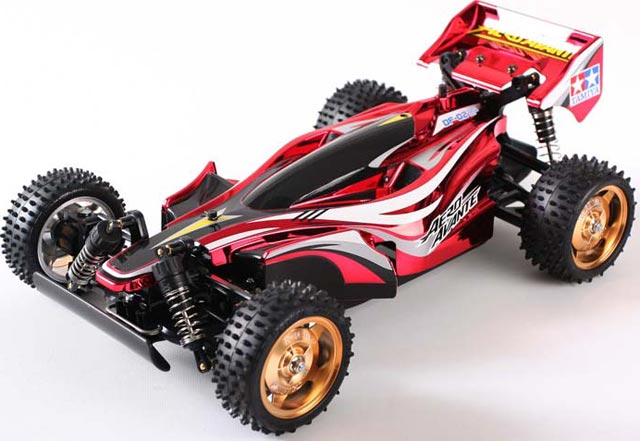

RC Aero Avante Red Metallic (DF-02)

Product Info | Replacement Parts | Optional Items
TAMIYA

TAM84377
RC Aero Avante Red Metallic (DF-02)
By TAMIYA
Discontinued
Click to Enlarge
click to enlarge

More like this... R/C Electric 4WD Buggy Kits
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$160.64
Warehouse ?
StockStock availability for pick up
0
$160.64
Warehouse ?
0
$160.64
Store - Charlottetown ?
0
$160.64
Store - Edmonton ?
0
$160.64
Store - Mississauga ?
0
$160.64
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Small Metric 4-Way Wrench
$4.99

Body Pin Set
$4.99

RS540 Sport Tuned Motor 49/62
$38.99

4mm Flange Lock Nut 58232
$4.99
Touring Car Ltwt King Pin
$9.99

1150 Sealed Ball Bearing Set (2)
$19.99

Damper O-Ring 44002
$3.99

5mm Alum Ball Connector Bl
$13.99
FEATURES
  • Kit comes with a Finished polycarbonate body and wing with metallic plating applied.
  • The shaft-driven 4WD DF-02 chassis features a bathtub frame and low center of gravity.
  • Enclosed front and rear gearboxes protect against dirt and debris and are equipped with gear differentials.
  • Torque tuned motor is included.
  • Note: This model requires a receiver with an antenna cable, as the radio signals will be interfered with by the metallic body if using a receiver with a built-in antenna.
  • 4-wheel double wishbone suspension is equipped with oil-filled CVA shock units.
click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES
   This is the 1/10 scale electric powered, radio controlled, 4 wheel drive
Tamiya Aero Avante Off-Road Buggy kit.

**This version includes the Red Metallic Finish Body**
**and Bronze Finish Wheels**

FEATURES: Chassis: ABS plastic DF-02 bathtub style
Drive: Four wheel shaft drive
Motor: 540 size
Electronic Speed Control: Tamiya TEU-105BK with reverse
Shocks: Four oil-filled plastic bodied with 5mm ball connectors
Gearboxes: Front and rear sealed, ball bearing equipped
Differentials: Planetary metal gears
Transmission: Single-speed
Body: Polycarbonate buggy body with red metallic finish
Tires: Spike, 3.4" (86mm) outer diameter, 2.2" (56mm) inner diameter
Rear Width, 1.5" (38mm), Front Width, 1.2" (30mm)
Wheels: One piece, bronze in color 2.1" (54mm) diameter
Rear Width, 1.1" (29mm), Front Width, 0.94" (24mm)
Bumpers: Plastic, front and rear
Suspension: Front and rear double wishbone four wheel independent
Camber: Non adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable steering tie rods, caster/toe-in refers to the
angle of the front suspension when viewed from the side of the car
in relation to the chassis
Steering: Bell-crank type with servo saver

INCLUDES: Tamiya 1/10 scale Aero Avante Buggy with oil-filled shocks, 540
motor, metallic finish body, tires, wheels, 19 tooth pinion gear,
decal sheet, ESC, 70 tooth spur gear and instructions
_
REQUIRES: Radio: 2-Channel with 1 standard size steering servo
Radio Batteries: (8) AA size
Battery: 6-cell stick with Tamiya type connector
Charger: AC/DC timed or peak for 6-cell battery
Misc. Items: Building and track equipment

SPECS: Length: 15.7" (400mm)
Width: 9.8" (249mm)
Height: 5.7" (145mm)
Weight: 2.6 lbs (1195g) approx.
BODY-
Length: 13" (330mm)
Width: 7.25 (184mm) behind front wheels (widest point)
1.3" (33mm) ahead of front wheels (thinnest point)
Height: 3" (76mm)

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x11mm Rear Diff 1 DTXC1547
1 8x12mm Front Diff 1 DTXC1581
2 8x12mm Rear Diff 1 DTXC1581
2 5x11mm Drive Shaft 1 DTXC1547
2 5x11mm Front Axles 1 DTXC1547
2 5x11mm Rear Axles 1 DTXC1547
