TAM84373

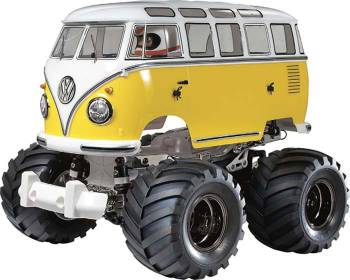

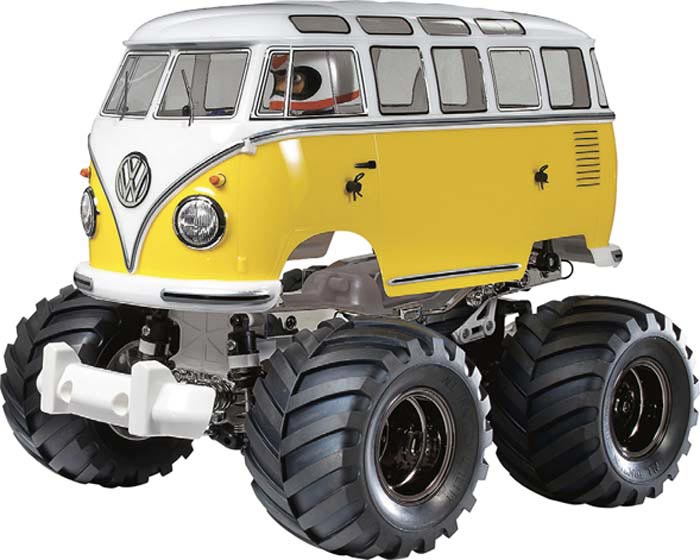

1/12 Volkswagen Type 2 (T1) Wheelie Custom Version

Product Info | Replacement Parts
RESOURCES

Replacement Parts (9)
TAMIYA

TAM84373
1/12 Volkswagen Type 2 (T1) Wheelie Custom Version
By TAMIYA
$256.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric 2WD Monster Truck Kits
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$256.99
Warehouse ?
Stock availability for pick up
0
$256.99
Warehouse ?
0
$256.99
Store - Charlottetown ?
0
$256.99
Store - Edmonton ?
0
$256.99
Store - Mississauga ?
0
$256.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
FEATURES

 This is a limited edition version of the Volkswagen Type 2 (T1) Wheelie model. The Type 2 retains popularity among drivers even today, thanks to its unique appearance. It appears as a limited edition with special-colored parts.

PRODUCT RESOURCES
VENDOR TECHNOTES
          This is the 1/12 scale, radio controlled, electric powered,
Volkswagen Type 2 (T1) Wheelie Custom Version Kit.
For ages 14 and above

FEATURES: Chassis: WR-02G monocoque with wheelie bar
Drive: Rear wheel
Electronic Speed Control: Tamiya TEU-105BK with reverse (TAMC5055)
Motor: 540 brushed, preinstalled to assembled gearbox
Suspension: Four wheel double wishbone
Differential: Bevel gear
Body; Clear polycarbonate
Driver Figure: Molded white plastic
Shocks: Coil over plastic body friction, not oil-filled
Wheels: One-piece plastic
Tires: Chevron pattern, outer diameter 4.4" (112mm), 2.7" (68mm) wide
Steering: Direct servo with tie rods
Front Bumper: Spring type to absorb minor impacts
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Steering Tie Rods: Adjustable, caster/toe-in refers to the
angle of the front suspension when viewed from the side of the car
in relation to the chassis

INCLUDES: Tamiya VW Type 2 Wheelie kit with brushed motor, ESC, clear body,
18T pinion gear, tires, wheels, shocks, decal sheet, and
instruction manual

REQUIRES: Radio: 2-channel with high torque steering servo
Battery: 7.2V stick pack with standard connector
Battery Charger: To match selected battery
AA batteries, paint, building and track equipment

SPECS: Vehicle-
Specs such as finished size not provided by manufacturer
Body-
Length: 11.8" (300mm)
Width: 5.3" (134mm)
Height: 5.5" (140mm)

COMMENTS: To Upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x11mm Rear Uprights 1 DTXC1547
4 5x11mm Front Uprights 2 DTXC1547
8 5x11mm Front Uprights 4 DTXC1547

jxs 02/04/14
ir/jxs
4950344843732 4950344843732
TAMC8373
