TAM84294

TA05VDFII Drift Chassis Kit

Product Info | Replacement Parts | Optional Items
RESOURCES

Replacement Parts (10)
Optional Items (6)
TAMIYA

TAM84294
TA05VDFII Drift Chassis Kit
By TAMIYA
Discontinued
Click to Enlarge
click to enlarge

More like this... R/C Electric On-Road Drift Car Kits
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$535.49
Warehouse ?
Stock availability for pick up
0
$535.49
Warehouse ?
0
$535.49
Store - Charlottetown ?
0
$535.49
Store - Edmonton ?
0
$535.49
Store - Mississauga ?
0
$535.49
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES

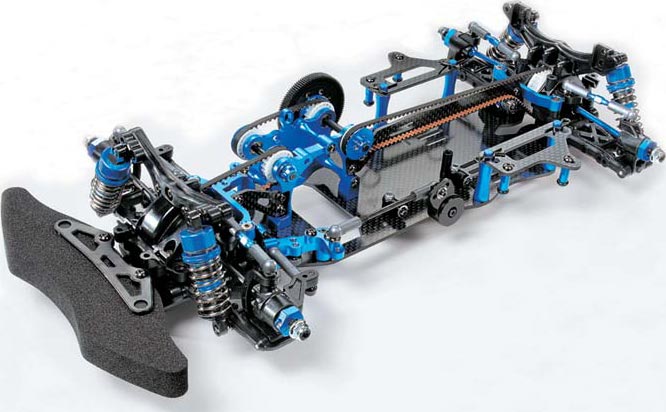

         This is the electric powered, radio controlled, 1/10 scale
TA05-VDF II Drift Chassis Kit from Tamiya.

FEATURES: Chassis: Carbon fiber, 0.08" (2mm) thick vertical double frame and
carbon lower deck
Drive: Four wheel, three belt
Differentials: Front ball type, rear locked
Shocks: TRF, Oil-filled aluminum body
Bumper: Front foam
Pinion Gear: 38T
Spur Gear: Composite construction, 112 tooth
Ball Bearings: Full set, shielded
Suspension: Short reversible, fully independent double wishbone
Steering: Bellcrank type
Caster: Adjustable caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Ride Height: Adjustable
Track Width: Adjustable

INCLUDES: TA05-VDF II Drift Chassis Kit with shocks, pinion gear,
spur gear, shock oil, decals and instruction manual

REQUIRES: Radio: 2-channel
Steering Servo: High speed
Motor: 540 size
ESC: To match selected motor
Battery: 6-cell 7.2V stick or 7.4V 2S flat LiPo pack
Battery Charger: To match selected battery
Wheels: Medium narrow
Tires: 0.94" (24mm) wide drift type
Body: TA05 or TB-03 chassis compatible
Building and track equipment

SPECS: Length: 14.4" (366mm)
Width: 7.4" (188mm)
Wheelbase: 10.1" (257mm), adjustable
Tread, F&R: 6.6" (168mm) distance from tires side-to-side

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 10x15mm Pulley 1 DTXC1595
2 5x8mm Pulley 1 DTXC1523
2 4x8mm flanged Center Shaft 1 DTXC1517
2 5x9mm Belt Tensioner 1 DTXC1531
4 5x10mm Front Hubs 2 DTXC1535
4 5x10mm Rear Hubs 2 DTXC1535

jxs 08/02/12
ir/jxs
