This is a Limited Edition assembly kit of the Hot Shot. The standard Hot Shot was re-introduced in 2007 featuring up to date parts while remaining faithful to the original. The limited edition features a special gold plated body, rear wing and wheels to commemorate the 35 years that Tamiya has been making R/C kit products.

click image to enlarge

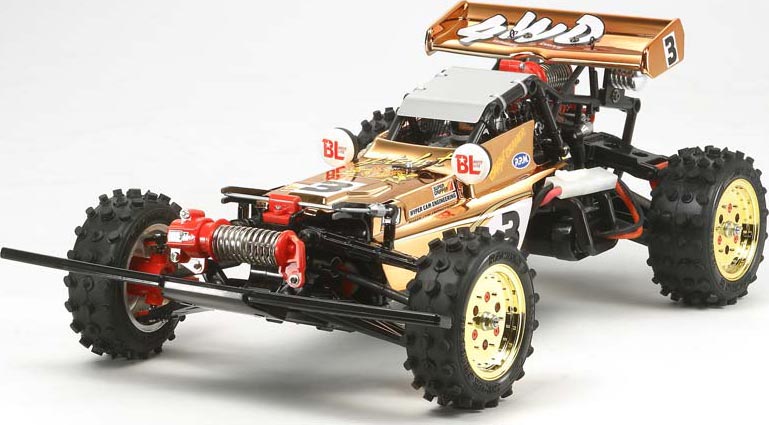

   This is the 1/10 scale electric powered, radio controlled, re-release
of the 1985 Tamiya Hotshot Off-Road Buggy Kit.

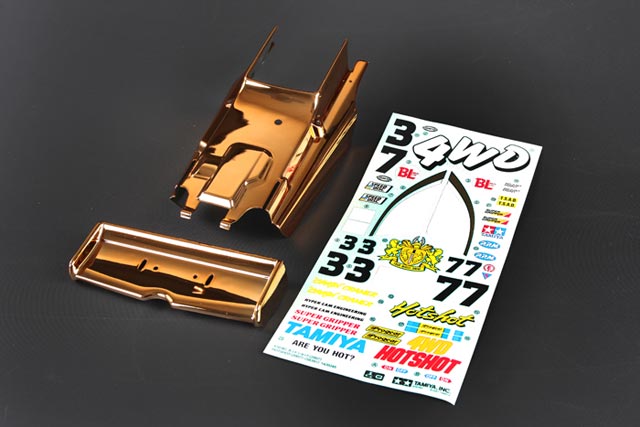

**Limited Edition Metallic Plated Body, Rear Wing and Wheels.**

FEATURES: Chassis: Monocoque ABS Resin
Drive: Four wheel shaft drive with dogbone type linkage
Motor: Type 540 with aluminum heat sink and connectors
Electronic Speed Control: Tamiya TEU-104BK w/reverse
Shocks: Front and rear mono type horizontally mounted
Gearboxes: Sealed
Differentials: Planetary gear
Transmission: Single-speed
Tires: Spike, Front 3" (77mm) diameter, 1.1" (28.5mm) wide
Rear 3" (77mm) diameter, 1.4" (37mm) wide
Wheels: Nylon resin, gold colored plating
Front 1" (25.4mm) wide, 2" (51mm) diameter
Rear 1.3" (33mm) wide, 2" (51mm) diameter
Bumpers: Front plastic

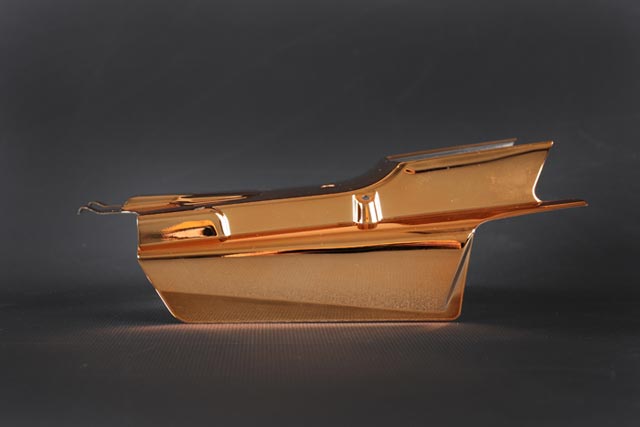

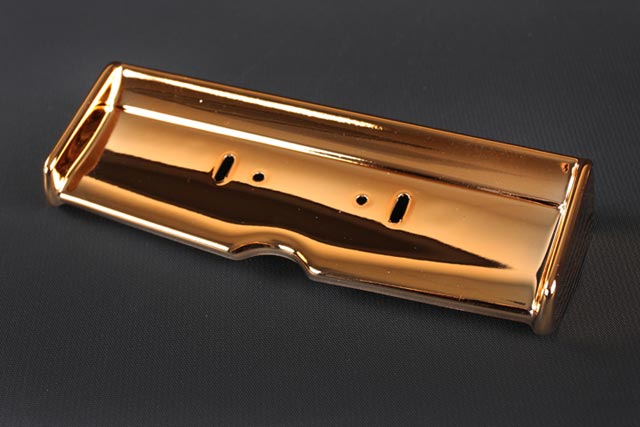

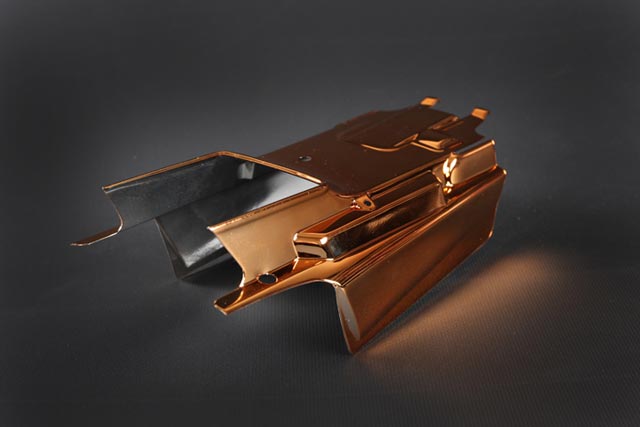

Body: Metallic plated orange/gold in color with plated rear wing
Suspension: Four wheel double wishbone
Camber Tie Rods: Non-adjustable
Steering Tie Rods: Adjustable
Steering: Bell crank type with servo saver

INCLUDES: Tamiya Hotshot buggy with two shocks, 540 motor, heat sink
electronic speed control, body, tires, wheels, 13 and 15 tooth

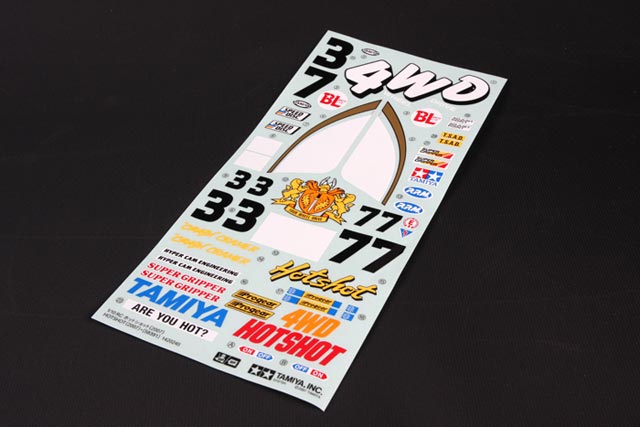

tooth pinion gears, spur gear, instructions, decal sheet and
eight 5x11 ball bearings _

REQUIRES: Radio: 2-Channel with 2 Servos
Radio Batteries: (8) AA size
Battery: 6-cell w/standard connector
Charger: AC/DC Timed or Peak for 6-cell battery
Paint: Polycarbonate safe spray or brush-on
Misc. Items: Building and track equipment

Length: 15.3" (390mm)
Width: 9.2" (235mm)
Height: 5.9" (150mm)
Weight: 2.8lbs (1270g) approximately
Gear Ratio: 10.43:1 with 13T pinion gear
8.704:1 with 15T pinion gear
Length: 8.7" (220mm)
Width: 3.7" (95mm) at rear wheels (widest point)
3.1" (80mm) at front wheels (thinnest point)
Height: 2.3" (59mm)

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
1 5x8mm Rear Drive Gear 1 DTXC1523
1 5x11mm Rear Drive Gear 1 DTXC1547
1 5x8mm Rear Gearbox 1 DTXC1523
1 5x11mm Rear Gearbox 1 DTXC1547
1 5x8mm Front Counter Gear 1 DTXC1523
1 5x11mm Front Counter Gear 1 DTXC1547
1 5x8mm Counter Bevel Gear 1 DTXC1523
1 5x11mm Counter Bevel Gear 1 DTXC1547
1 5x11mm Driveshaft Joint 1 DTXC1547
1 5x11mm Front Gearbox 1 DTXC1547
4 5x11mm Rear Hubs 2 DTXC1547
4 5x11mm Front Hubs 2 DTXC1547
