  • M-chassis suspension arms and front uprights.
  • 4WD fully independent wishbone suspension.
  • Separate suspension mounts enable toe-angle adjustment.
  • Universal drive shafts.
  • TA05 oil-filled gear differential units allow a range of diff settings.
  • Aluminum dampers are mounted to a durable 3mm thick carbon-fiber damper stay.
  • TA05 front one-way and direct coupling can be installed. (Sold Separately).
  • Blue-anodized aluminum motor mount holds.
  • 380 motor.
  • 2-belt drivetrain layout uses an 18T center pulley.
  • 2.25mm thick lower and 2mm thick 2-piece upper deck.
  • Battery pack and R/C unit positions are interchangeable to adjust chassis weight distribution.
  • This chassis is compatible with current M-chassis bodies (short wheelbase) such as Item TAM50795 1/10 R/C Mini Cooper Racing Body Parts Set.
  • Item 51237 Suzuki Swift Super 1600 Wheels (4pcs.) are included. Tires are sold separately.

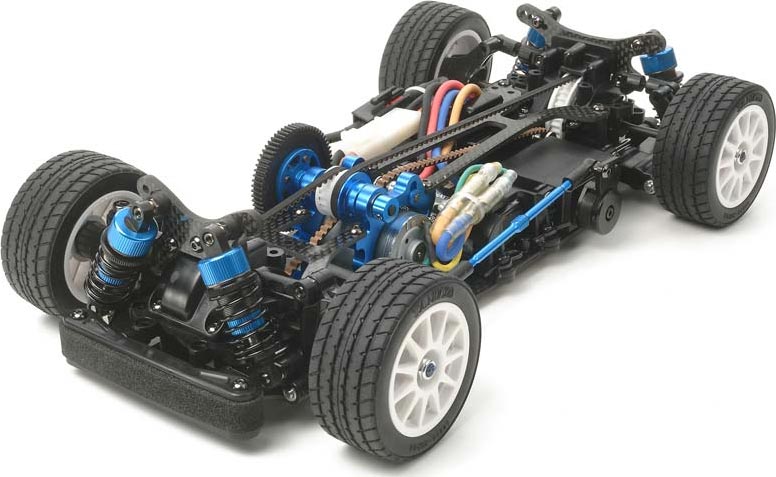

 Tamiya has incorporated its proven components into a new, unique 1/12 scale R/C chassis design. This chassis combines the TA05 2-belt driven 4WD drivetrain with a 210mm wheelbase (overall chassis length: 292mm) and has a carbon-fiber double deck layout. It also features an aluminum motor mount which holds the front mid-ship motor and spur gear. The TA05 gearboxes are equipped with oil-filled gear differential units (37T) and the suspension uses M-chassis components such as suspension arms, universal shafts, and aluminum dampers. Separate suspension mounts are used to enable easy suspension toe-angle adjustments as seen in many of Tamiya's touring car platforms. The steering setup features durable aluminum components for precise control. The TA-05 M will be compatible with existing M-Chassis bodies that meet the 210mm wheelbase.

click image to enlarge
          This is the electric powered, radio controlled 1/12 scale
TA05 M-Four On-Road Race Car Chassis Kit from Tamiya.

FEATURES: Chassis: Carbon fiber double deck, 0.09" (2.25mm) thick lower deck,
and 0.08" (2mm) thick two piece upper deck
Drive: Four wheel two belt with 18T center pulley and universal
drive shafts
Motor: 380-S sized brushed with 18T pinion gear
Spur Gear: 64T composite plastic
Differentials: Oil filled, bevel gear
Shocks: Oil filled, aluminum body
Shock Towers: 0.12" (3mm) thick carbon fiber
Wheels: 11 spoke white plastic, 0.95" (24.2mm) wide, 1.4" (37mm)
Suspension: Fully independent, M chassis suspension arms and front
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when when viewed from front or behind vehicle

INCLUDES: Tamiya TA05 M-Four Race Car Chassis Kit with Wheels, Shocks, Shock
Oil, 380 Motor, Pinion Gear, Spur Gear, Decal Sheet and

REQUIRES: Radio: 2-channel w/standard size steering servo
Electronic Speed Control: 380 compatible
AA Batteries: Four or eight depending on selected TX
Body: Chassis is compatible with current short wheelbase M-chassis
bodies such as the #50795 Mini Cooper (TAMC5795)
Battery: #55105 Tamiya LF Battery LF1100-6.6V Racing Pack
**As of this writing, (01/31/12) this battery is not imported into
the USA. Contact Tamiya for a substitute battery.**
Charger: To match selected battery
Tires: Mini tires for Tamiya M chassis
Building and track equipment

SPECS: Length: 11.5" (292mm)
Wheelbase: 8.3" (210mm)

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 3x6mm Lower Bulkhead 1 DTXC1503
2 3x6mm Center Bulkhead 1 DTXC1503
2 4x8mm flanged Center Shaft 1 DTXC1517
4 10x15mm Diff Gear 2 DTXC1595
4 5x10mm Rear Axles 2 DTXC1535
4 5x10mm Front Axles 2 DTXC1535

jxs 01/31/12
