TAM84205

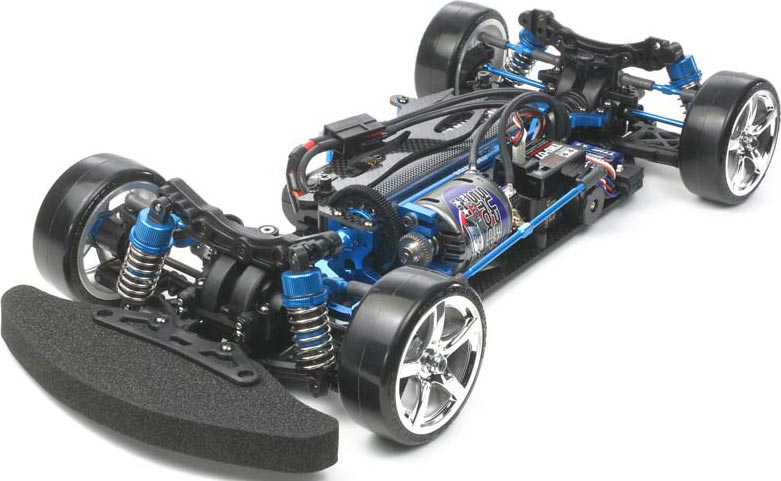

1/10 TB-03 VDS Drift Spec Chassis Kit

Product Info | Replacement Parts | Optional Items
RESOURCES

Replacement Parts (9)
Optional Items (8)
TAMIYA

TAM84205
1/10 TB-03 VDS Drift Spec Chassis Kit
By TAMIYA
Discontinued
Click to Enlarge
click to enlarge

More like this... R/C Electric On-Road Drift Car Kits
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$526.99
Warehouse ?
Stock availability for pick up
0
$526.99
Warehouse ?
0
$526.99
Store - Charlottetown ?
0
$526.99
Store - Edmonton ?
0
$526.99
Store - Mississauga ?
0
$526.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
FEATURES
  • 2.5mm thick carbon fiber lower deck

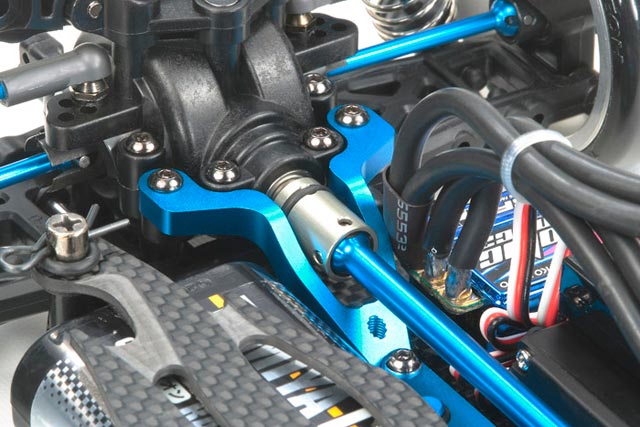

  • Aluminum center F/R gearbox braces which offer superior chassis strength

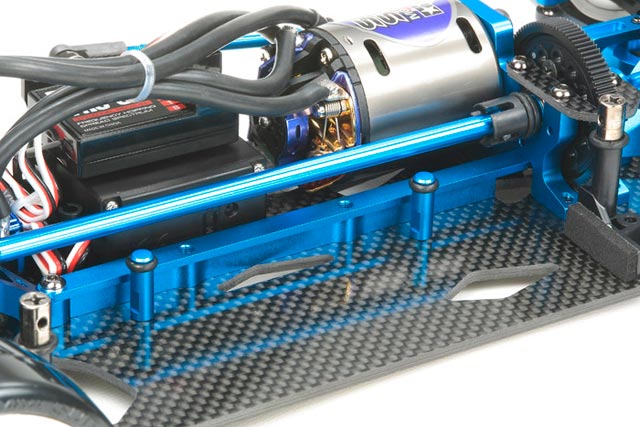

  • Chassis layout is optimized for drifting and features a 2-piece propeller shaft along the center line of the chassis with the battery pack, motor and R/C radio gear positioned on either side of the car

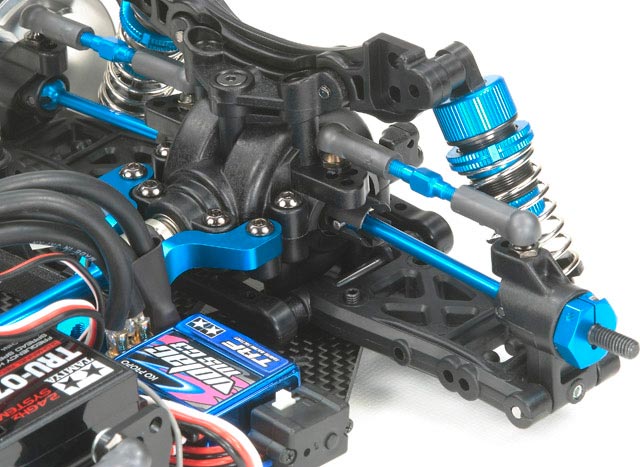

  • 4-wheel double wishbone suspension is equipped with the short reversible suspension arms as seen on the TB-03, TA-05 Version 2 and TRF 416,417

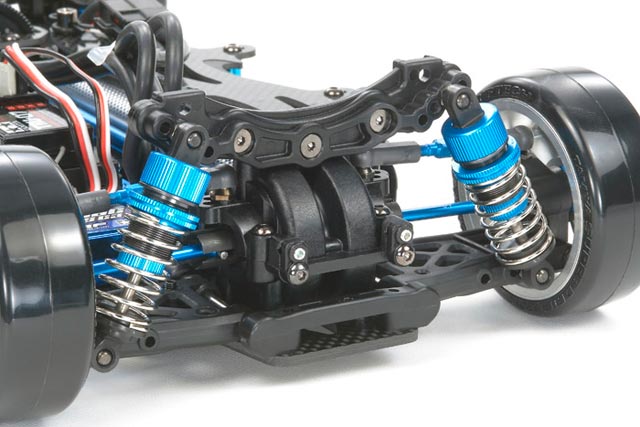

  • TRF (Tamiya Racing Factory) Aluminum threaded shock body and Flourine piston dampers included
  • A parallel geometry steering system with left and right symmetrical steering angles offers excellent control and easier counter steering maneuvers
  • 2-piece universal propeller shaft
  • 8 Aluminum turnbuckle shafts
  • 9 Aluminum hex wheel hubs
  • 10 Steel diff joints for improved wear and durability

 The Tamiya belt-driven TA05-VDF Drift Chassis Kit proved to be a huge success amongst R/C Drift enthusiasts. With the knowledge gained from the TA-05 VDF, Tamiya has developed the TB-03 VDS top-spec drift chassis kit which offers the direct response of a Shaft-Driven 4WD system.

Optional Hop-Ups (not included)
53842 TA05 Stabilizer Set (F & R)
54098 TB-03 Carbon Reinforced A Parts (Gear Case)
54122 TB-03 Carbon Damper Stay (Rear)
54124 TB-03D Carbon Damper Stay (Front)
54137 TB-03D Aluminum Rear Upright (1 degree)
54146 TB-03 Aluminum Damper Stay Mount
54064-74 TB-03 Aluminum Suspension Mounts
54171-75 TA05 ver.II Separated Suspension Mounts
Manual R/C Parts Hopups (3)

click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES
         This is the electric powered, radio controlled, 1/10 scale
Tamiya TB-03 VDS Limited Edition Drift Spec Chassis Kit.

FEATURES: Chassis: TB-03 0.098" (2.5mm) thick carbon fiber with aluminum center
brace to control pitch movement, and aluminum braces for front and
rear gearboxes
Drive: Four wheel, with two-piece shaft
Motor Mount: One-piece aluminum allows easy changing and adjusting of
gears
Ball Differentials: Front and rear
Wheels: Lace style, blue in color 0.94" (24mm) wide, 1.9" (48mm)
diameter
Shocks: TFR aluminum body, oil filled
Suspension: Four wheel double wishbone with short reversible
suspension arms, aluminum suspension mounts
Ball Bearings: Full set

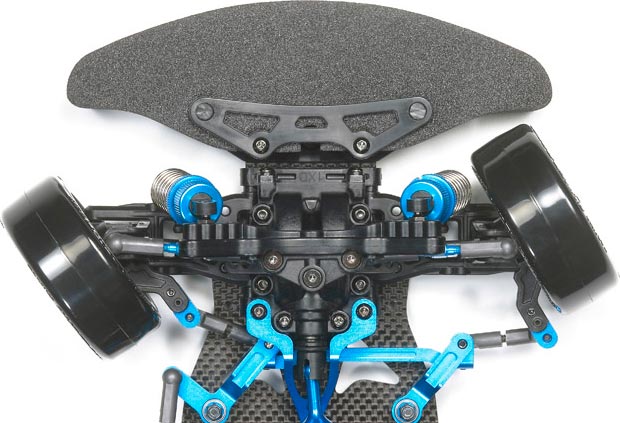

Bumper: Front urethane
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Steering: Bell-crank type with servo saver with adjustable tie rod

INCLUDES: Tamiya TB-03 VDS Drift Spec Chassis Kit, wheels, tires, instructions
decals, shocks, shock oil,

REQUIRES: Radio: 2-channel with one servo and ESC
Radio Batteries: Eight AA
Motor: 540 size
Tires: Super Drifttech width 0.94" (24mm), diameter, 2.5" (64mm)
Battery: 6-cell stick type with Tamiya type connector
Battery Charger: Timed or peak for 6-cell battery
Body: Tamiya TB-3 and TA-05 1/10 scale on-road car bodies will fit
Building and field equipment

SPECS: Wheelbase: 9.8" (250mm)

COMMENTS: For replacement bearings use:
Qty. Size Location Qty. Bearing Set
4 5x8mm Fr/R Diffs 2 DTXC1523
4 10x15mm Fr/R Diffs 2 DTXC1595
2 5x10mm Spur Gear 1 DTXC1535
1 6x10mm Spur Gear 1 DTXC1561
1 6x10mm Front Gearbox 1 DTXC1561
1 5x10mm Front Gearbox 1 DTXC1535
1 6x10mm Rear Gearbox 1 DTXC1561
1 5x10mm Rear Gearbox 1 DTXC1535
4 5x8mm Steering Linkage 2 DTXC1523
2 5x10mm Front Axles 1 DTXC1535
2 5x10mm Rear Axles 1 DTXC1535

jxs 08/11/11
