TAM84071

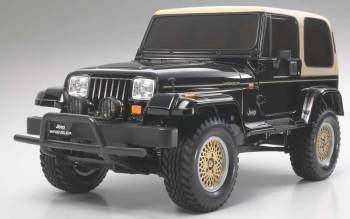

1/10 Jeep Wrangler (YJ) (CC-01 Chassis)

Product Info | Replacement Parts | Optional Items
TAMIYA

TAM84071
1/10 Jeep Wrangler (YJ) (CC-01 Chassis)
By TAMIYA
Discontinued
Click to Enlarge
click to enlarge

More like this... R/C Electric Monster Truck Kits
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$246.49
Warehouse ?
StockStock availability for pick up
0
$246.49
Warehouse ?
0
$246.49
Store - Charlottetown ?
0
$246.49
Store - Edmonton ?
0
$246.49
Store - Mississauga ?
0
$246.49
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Small Metric 4-Way Wrench
$4.99

3mm Grub Screw 44002
$5.99

Body Pin Set
$4.99

Pinion Gear Set 20/21T
$9.99
RC Body Set Toyota FJ Cruiser
$78.99

1150 Sealed Ball Bearing Set (2)
$19.99

Diff Bevel Gear Set 49/84
$7.99

Pinion Gear Set 16/17T
$9.99
FEATURES
  • This is a 1/10 RC assembly kit model of the Jeep Wrangler assembled on the CC-01 chassis
  • Comes with Tamiya LED Light Unit (TLU-01) and two 5mm diameter white LED lights representing the headlights. You can further light up your Jeep Wrangler by connecting separately available fog lights to your LED Light Unit.
  • 4WD shaft driven bathtub chassis comes with front double wishbone and rear 4-link suspension
  • Mesh wheels match the superb finish of this machine
  • Type 540 motor and Electronic Speed Controller (TEU-101BK) included
  • 2-channel RC system, battery pack and charger separately required
  • Overview

Tamiya is proud to introduce the Jeep Wrangler. This 1/10 RC Jeep Wrangler is mounted on the CC-01 chassis and the injection-molded plastic body shell precisely captures its famous form.

click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES
        This is the 1/10 scale electric powered, radio controlled, 4WD
Jeep Wrangler Off-Road Kit from Tamiya.

FEATURES: Chassis: CC-01, plastic tub construction
Drive: Four wheel drive, shaft driven
Motor: 540 electric motor
Electronic Speed Control: TEU-104BK with reverse
Lights: Tamiya TLU-01 (TAMC1394) LED light unit with four LED lights,
see COMMENTS
Shocks: CVA oil-filled, black plastic bodies
Gearbox: Front and rear sealed gearbox
Differentials: Planetary gear, rear differential may be locked
during assembly
Transmission: Single speed
Tires: Semi-pneumatic all-terrain, rubber construction 1.2" (30mm)
wide, 3.5" (90mm) diameter
Wheels: Four mesh gold colored plastic, 1" (26mm) wide, 1.9" (48mm)
diameter
Bumper: Front, plastic construction, black in color
Body: Injection molded ABS resin
Suspension: Front, long stroke double wishbone
Rear, four link rigid
Camber Tie Rods: Fixed non-adjustable
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Steering: Bell-crank type with servo saver and adjustable linkage

INCLUDES: Tamiya Jeep Wrangler kit with oil-filled shocks, 540 motor, ESC,
body, tires, wheels, LED light kit, shock oil, 16 tooth
pinion gear, spur gear, instructions
_
REQUIRES: Radio: 2-Channel with 1 Servo
Eight AA batteries for transmitter
Battery: 6-cell stick pack w/ standard connector
Charger: AC/DC timed or peak for 6-cell battery
Misc. Items: Building and track equipment

SPECS: VEHICLE-
Length: 16.8" (426mm)
Width: 7.7" (195mm)
Height: 8.5" (215mm)
Weight: 53.3oz (1510g)
Wheelbase: 9.9" (252mm)
BODY-
Length: 15" (381mm)
Width: 7.25" (184mm) at widest point
Height: 5.3" (135mm)

COMMENTS: For Replacement or to Upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x11mm Spur Gear 1 DTXC1547
1 5x8mm Spur Gear 1 DTXC1523
2 5x11mm Fr Diff 1 DTXC1547
1 5x11mm Drive Gear 1 DTXC1547
1 5x8mm Drive Gear 1 DTXC1523
4 10x15mm Front Hubs 2 DTXC1595
4 5x11mm Rear Axle Shafts 2 DTXC1547
1 5x11mm Rear Prop Joint 1 DTXC1547
1 5x8mm Rear Prop Joint 1 DTXC1547

jxs 10/27/11
ir/jxs
