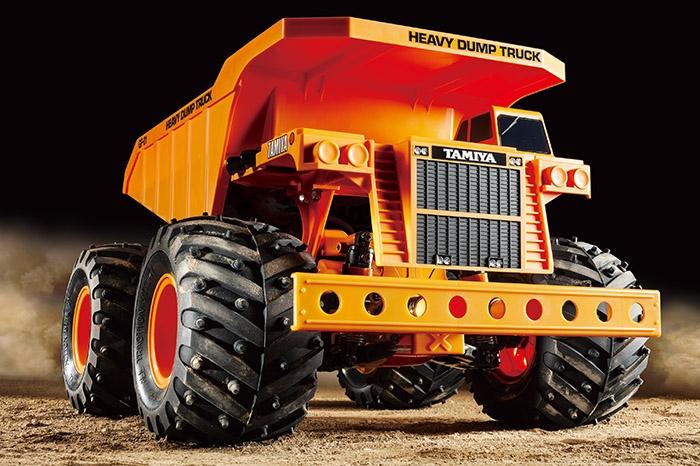

         This is the Electric Powered, Radio Controlled 1/24 scale
Heavy Dump Truck Kit from Tamiya.

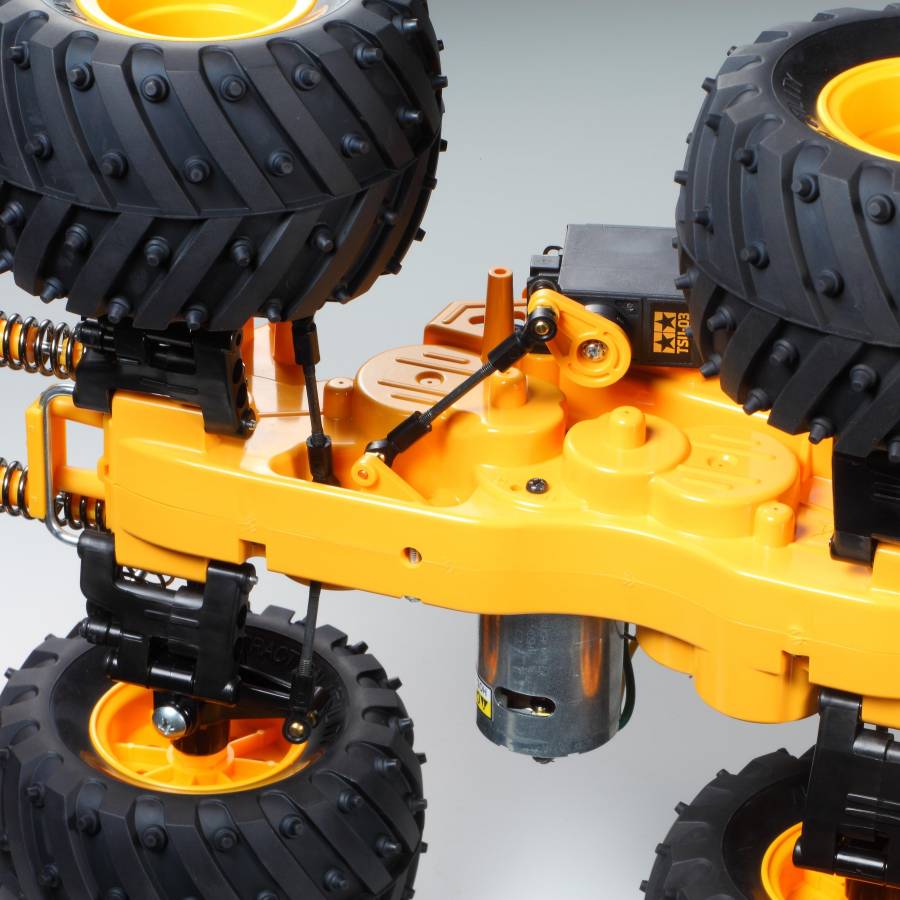

FEATURES: Chassis: GF-01 lightweight monocoque resin with wheelie bar to
prevent flipping over backward during wheelies
Drive: 4 wheel, dogbone driveline
Motor: Tamiya Sport Tuned RS-540 brushed, center mounted

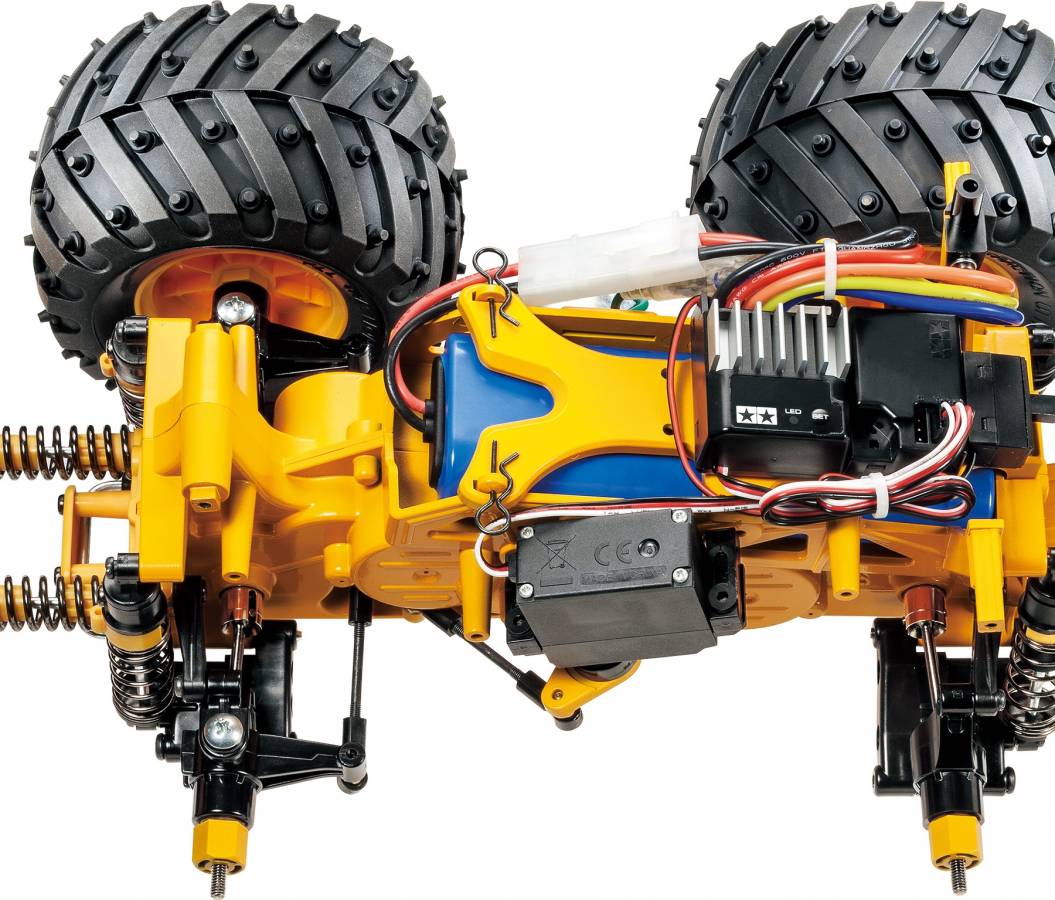

Electronic Speed Control: TBLE-02
Differentials: Bevel gear type

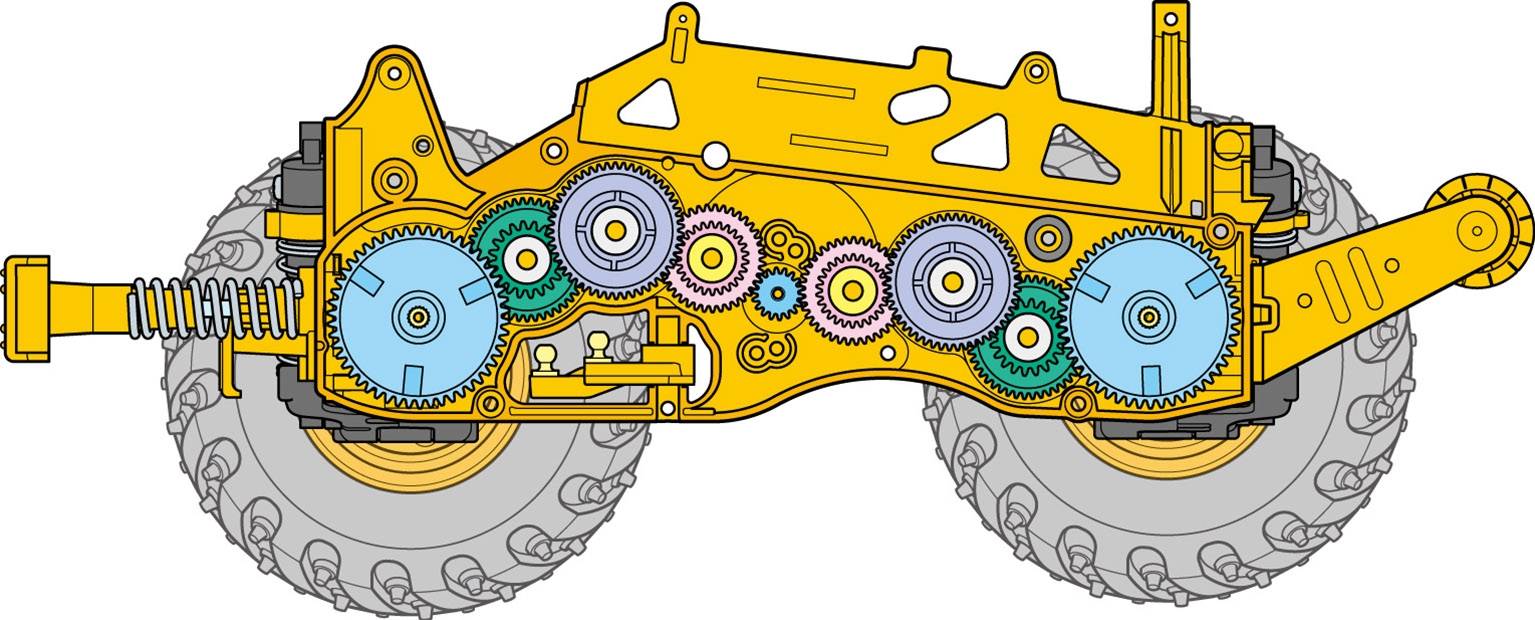

Gearboxes: Sealed

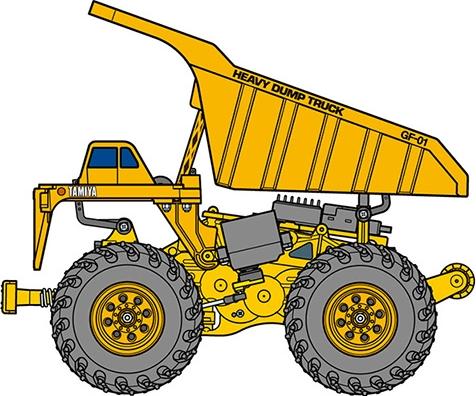

Cab and Rear Bed: Injection molded resin, bed may be displayed in
flat or raised position by changing the position of the two stays
and snap pins in the body mounts. It is not advisable to put
objects in the rear bed, or drive the model with the bed elevated
**bed is not remote controlled**

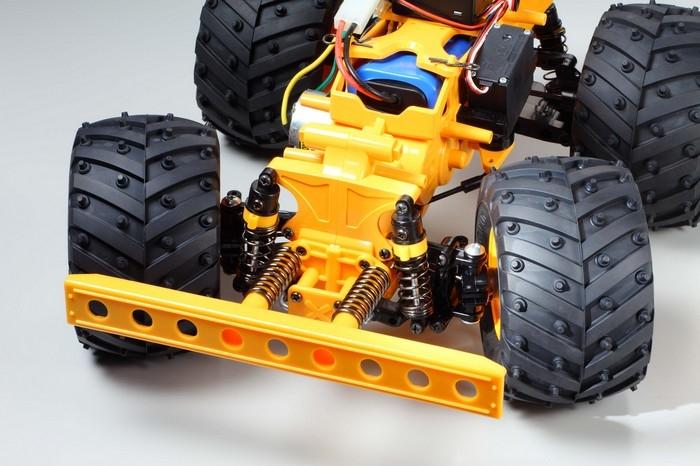

Front Bumper: Spring loaded
Shocks: Plastic body friction, not oil-filled
Suspension: Four wheel double wishbone
Tires: Rubber, lug and pin spike 2.5" (65mm) wide, 4.5" (115mm)
diameter
Wheels: Orange plastic 1.9" (49mm) diameter, 2.3" (58.5mm) wide
12mm hex
Steering: Bell crank type
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Steering Tie Rods: Adjustable, caster/toe-in refers to the
angle of the front suspension when viewed from the side of the car
in relation to the chassis

INCLUDES: Heavy Dump Truck Kit with Brushed Motor, ESC, Shocks, Decal Sheet,
Tires, Wheels, 18T Pinion Gear and Instruction Manual

REQUIRES: Radio: 2-channel with high-torque steering servo
Battery: 7.2V NiMH battery with Standard connector
Charger: To match selected battery
AA Cells: For transmitter
Building and Track Equipment

SPECS: Length: 13.8" (350mm)
Width: 10.6" (270mm)
Height: 8.3" (210mm)

COMMENTS: To upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x11mm Gearbox 1 DTXC1547
2 5x11mm Large Counter Gear 1 DTXC1547
2 5x11mm Medium Counter Gear 1 DTXC1547
2 5x11mm Small Counter Gear 1 DTXC1547
2 5x11mm Front Uprights 1 DTXC1547
2 5x11mm Rear Uprights 1 DTXC1547
