1/10 Toyota FJ Cruiser Black 4WD CC-01 Kit Painted Body

Product Info | Replacement Parts | Optional Items

1/10 Toyota FJ Cruiser Black 4WD CC-01 Kit Painted Body
$329.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric Scale Trail & Scale Truck Kits
But only from... TAMIYA
All items from... TAMIYA

 Inventory Status Legend
StockStock availability for on-line ordering
Warehouse ?
StockStock availability for pick up
Warehouse ?
Store - Charlottetown ?
Store - Edmonton ?
Store - Mississauga ?
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Small Metric 4-Way Wrench
Cera-Grease HG
Pinion Gear Set 20/21T
Pinion Gear Set 16/17T
Body Pin Set
Heat Resist Dbl Side Tape
Diff Bevel Gear Set 49/84
3mm Grub Screw 44002

The Toyota FJ Cruiser is a retro style SUV with styling and off road performance reminiscent of the original Toyota FJ40 Land Cruisers. It was first introduced to the public as a concept car at the January 2003 North American International Auto Show. The FJ Cruiser was later approved for mass production after positive consumer response and it debuted at the 2005 North American International Auto Show in final production form.

The Tamiya R/C replica faithfully captures all of the full size FJ's details down to the large headlights positioned near the center of the front of the car, chunky fenders, and a trio of windscreen wipers. The FJ body is mounted on the capable CC-01 Cross Country chassis, which features independent front suspension and a rear 4-link rigid suspension set up for fun scale trail running enjoyment. This Limited Edition special release includes a pre-painted body, making it easier and quicker for the modeler to get his machine on the off-road trails.

click image to enlarge

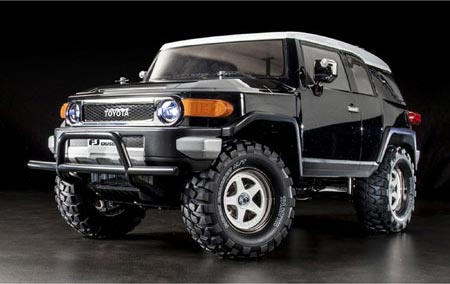

        This is the 1/10 scale electric powered, radio controlled, 4WD
Black Special Toyota FJ Cruiser Off-Road Kit from Tamiya.

**Additional Technical Info Will Be Added When It Becomes Available.**

FEATURES: Chassis: CC-01, ladder frame bathtub type
Drive: Four wheel drive, shaft driven
Motor: 540 electric motor
Shocks: Oil-filled, CVA
Gearbox: Front and rear sealed gearbox
Differentials: Bevel gear, lockable rear diff for better off-road
Transmission: Single speed
Body: Trimmed polycarbonate, painted black, separate black metal
plated door mirrors, lamps, spare tire cover and front grille,
smoke colored windows
LED Lights:
Tires: Semi-pneumatic all-terrain, rubber construction 1.3" (33mm)
wide, 3.7" (94mm) diameter
Wheels: Six spoke plastic, 2-piece 1" (26mm) wide, 1.9" (48mm)
Bumper: Front, plastic construction, black in color
Suspension: Front, long stroke double wishbone
Rear, four link rigid
Camber Tie Rods: Fixed non-adjustable
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
Steering: Bell-crank type with servo saver and adjustable linkage

INCLUDES: Tamiya Toyota FJ Cruiser with oil-filled shocks, 540 motor, ESC,
clear body, tires, wheels, LED light bucket kit (see COMMENTS)
shock oil, 16 tooth pinion gear, spur gear, instructions

REQUIRES: Radio: 2-Channel with 1 Servo
Electronic Speed Control:
Eight AA batteries for transmitter
Battery: 6-cell stick pack w/ standard connector
Charger: AC/DC timed or peak for 6-cell battery
Misc. Items: Building and track equipment

Length: 18.7" (474mm)
Width: 7.9" (200mm)
Height: 7.4" (188mm)
Weight: 53.3oz (1510g)
Wheelbase: 10.5" (267mm)
Gear Ratio: 1:14.67
more light effects, order TAMC1477.

COMMENTS: For Replacement or to Upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x11mm Spur Gear 1 DTXC1547
1 5x8mm Spur Gear 1 DTXC1523
2 5x11mm Fr Diff 1 DTXC1547
1 5x11mm Drive Gear 1 DTXC1547
1 5x8mm Drive Gear 1 DTXC1523
4 10x15mm Front Hubs 2 DTXC1595
4 5x11mm Rear Axle Shafts 2 DTXC1547
1 5x11mm Rear Prop Joint 1 DTXC1547
1 5x8mm Rear Prop Joint 1 DTXC1547

jxs 10/22/15
