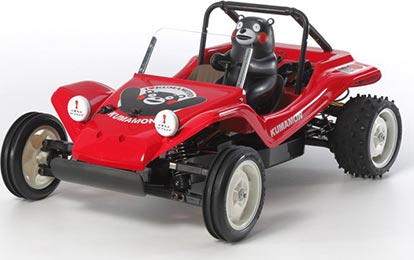

          This is the electric powered, radio controlled, 1/10 scale,
Tamiya Kumamon Version Dune Buggy Kit.

Kumamon is a character used to publicize the Japanese Prefecture of Kumamoto
in Kyushu, an island in south Japan.

FEATURES: Chassis: DT-02 ABS plastic tub
Drive: Rear wheel
Motor: 540 size
Pinion Gear: 10 tooth metal
Electronic Speed Control: Tamiya TBLE-02S with reverse
Differential: Planetary gear
Gearbox: Sealed
Shocks: Plastic body, friction type
Transmission: Single-speed
Suspension: Four wheel independent
Body: Molded plastic, red in color
Steering: Two-piece adjustable steering tie rods with servo saver
Tires: Ribbed front 0.83" (21mm) wide, 3.1" (80mm) diameter
Spiked rear 1.5" (39mm) wide, 3.2" (82mm) diameter
Wheels: Nylon resin, white in color
Front, 0.69" (17.5mm) wide, 2.2" (57mm) diameter
Rear, 1.3" (33mm) wide, 2.2" (57mm) diameter, 12mm hex
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Camber: Non-adjustable

INCLUDES: 1/10 scale Tamiya Kumamon Buggy Kit with Body, Wheels, Tires, ESC
380 Motor, Servo Saver, Driver Figure, Decals and Instruction
Manual

REQUIRES: Radio: 2-channel with steering servo
Battery: 6-cell, 7.2V NiMH stick pack with standard connector
Battery Charger: To match selected battery
Transmitter Batteries: Four or eight depending on transmitter
Tools and track equipment

SPECS: Vehicle;
Length: 15.3" (390mm)
Width: 9.4" (240mm)
Height: 6.6" (168mm)
Weight: 2.9lbs (1350g), approximate
Body;
Length: 14.5" (369mm)
Width: 7" (178mm)
Height: 2.3" (55mm)

To paint body to match photos on box, order the following Tamiya
colors;
TS-8 Italian Red, TAMR5008 X-18 Semi Gloss Black, TAMR1518
X-7 Red, TAMR1507 XF-2 Flat White, TAMR1702
X-11 Chrome Silver, TAMR1511 XF-64 Red Brown, TAMR1764

To upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
4 5x11mm Gearbox 2 DTXC1547
2 5x11mm Spur Gear 1 DTXC1547
2 5x11mm Rear Axles 1 DTXC1547
4 5x11mm Front Wheels 2 DTXC1547
