TAM58614

Suzuki Jimny Jb23 MF-01X

Product Info | Replacement Parts | Optional Items
RESOURCES

Replacement Parts (10)
Optional Items (3)
TAMIYA

TAM58614
Suzuki Jimny Jb23 MF-01X
By TAMIYA
$175.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric Monster Truck Kits
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$175.99
Warehouse ?
Stock availability for pick up
0
$175.99
Warehouse ?
0
$175.99
Store - Charlottetown ?
0
$175.99
Store - Edmonton ?
0
$175.99
Store - Mississauga ?
0
$175.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES

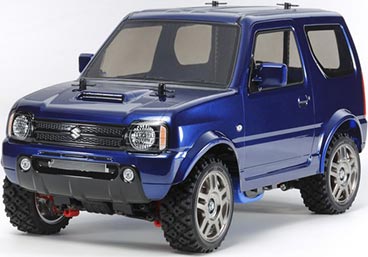

               This is the Radio Controlled, Electric Powered,
Suzuki Jimny JB23 Off Road Vehicle Kit from Tamiya.

FEATURES: Chassis: Three-piece resin monocoque, compatible with existing
M-chassis bodies
Drive: Four wheel, gear driven rear wheels, dogbone with driveshaft
driven front wheels
Motor: Brush equipped Mabuchi RS-540 Torque Tuned
Electronic Speed control: TBLE-02 with Tamiya type connector
Suspension: Four wheel independent double wishbone
Differentials: Gear type
Tires: Rally block 1.06" (27mm) wide, 2.7" (69mm) diameter
Wheels: 1.02" (26mm) wide, 1.9" (48mm) diameter, 5-spoke, gun-metal
gray in color
Body: Clear polycarbonate Suzuki Jimny JB23
Shocks: Friction, plastic body
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Camber: Non-adjustable
Steering: Bellcrank type

INCLUDES: Suzuki Jimny JB23 Off Road Vehicle Kit with Brushed Motor, TBLE-02
ESC, Tires, Wheels, Shocks, Clear Body, Decals, Instruction
Manual, 16T Pinion Gear

REQUIRES: Radio: 2-channel with high torque steering servo
Battery: 6-cell NiMH with Standard connector
Battery Charger: To match selected battery
Tools, polycarbonate safe paint, track equipment

SPECS: Wheelbase: 8.8" (225mm) adjustable
Body-
Length: 13.6" (346mm)
Width: 6" (152mm)
Height: 5.2" (132mm)

COMMENTS: To upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x11mm Front Gearbox 1 DTXC1547
2 5x11mm Rear Gearbox 1 DTXC1547
2 5x8mm Driveshaft 1 DTXC1523
2 5x11mm Rear Axles 1 DTXC1547
2 5x11mm Front Wheels 1 DTXC1547

jxs 08/04/15
ir/jxs
4950344586141 4950344586141
TAMC8614
