TAM58605

1/10 Nismo R34 GT-R Z-Tune TT-02D Drift Spec

Product Info | Replacement Parts | Optional Items
TAMIYA

TAM58605
1/10 Nismo R34 GT-R Z-Tune TT-02D Drift Spec
By TAMIYA
$275.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric On-Road Drift Car Kits
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$275.99
Warehouse ?
StockStock availability for pick up
0
$275.99
Warehouse ?
0
$275.99
Store - Charlottetown ?
0
$275.99
Store - Edmonton ?
0
$275.99
Store - Mississauga ?
0
$275.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
TT-02 Lower Deck Hard/Blue
$9.99

Small Metric 4-Way Wrench
$4.99

Cera-Grease HG
$9.99

RS540 Sport Tuned Motor 49/62
$38.99
3mm Grub Screw 44002
$5.99

Body Pin Set
$4.99

1050 Ball Bearing Set 4pcs
$13.99

AV Pinion Set 22/23T 62
$9.99
click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES
         This is the 1/10 scale, electric powered, radio controlled,
Tamiya TT02D Drift Spec Kit with the Nissan Nismo R34 G-T-R Z-Tune Body.

FEATURES: Chassis: Plastic, bathtub type with skid shaped underside to
minimize contact with the road surface
Drive: Four wheel, shaft driven
Motor: Tamiya Sport Tuned 540 brushed with aluminum heat sink
Electronic Speed Control: Tamiya TBLE-02S
Differential: Gear type
Tires: Slick rubber construction, Super Driftech 0.94" (24mm) wide
Wheels: Silver colored mesh type, 1.9" diameter (48.2mm), 0.94"
(24mm) wide, 12mm hex, +2 offset
Ball Bearings: Shielded

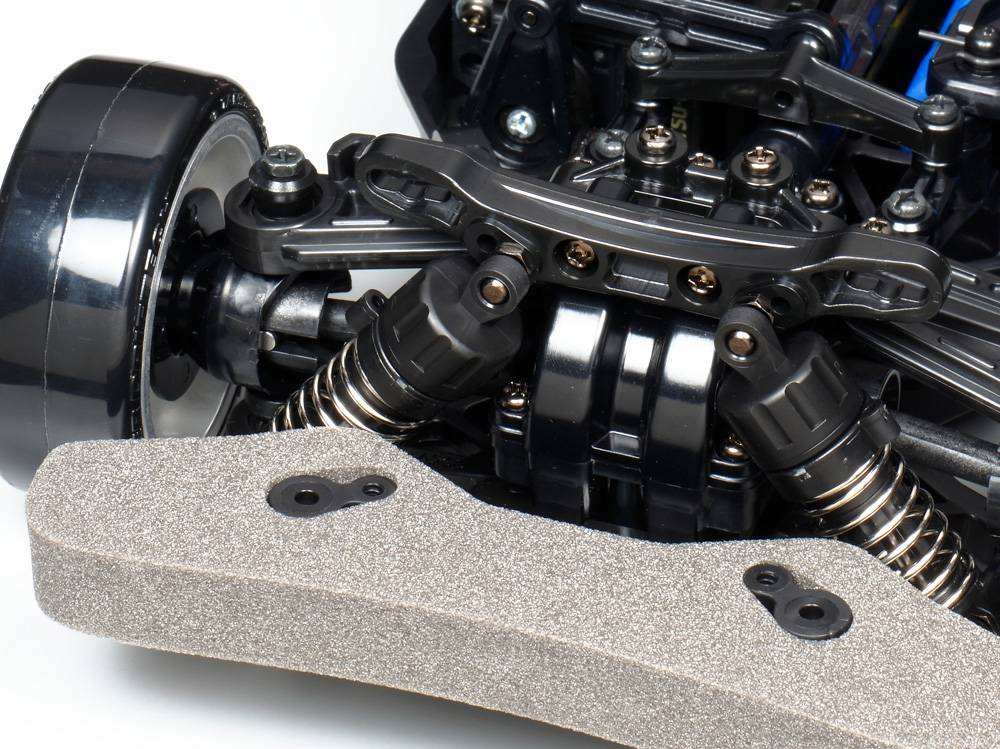

Suspension: Fully independent double wishbone
Shocks: CVA Super Mini oil-filled plastic body
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Steering: Bellcrank type

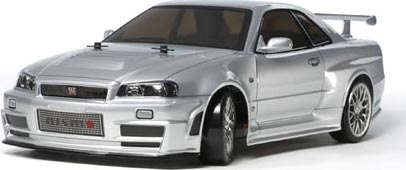

Body: Clear untrimmed Nissan Nismo R34 with decals and window
masks
Bumper: Front, foam

INCLUDES: Tamiya TT02D Drift Spec Chassis, with 540 Brushed Motor, Drift Tires,
Clear Body, 70 tooth Spur Gear, 22 tooth Pinion, ESC, Decals,
Window Masks, Instructions and Wheels

REQUIRES: Radio: 2-channel with high speed steering servo
Battery: 7.2V NiMH
Battery Charger: To match selected battery
Building and track equipment

SPECS: Specs such as finished size and weight of vehicle not provided
by manufacturer
Body
Length: 18.1" (460mm)
Width: 6.9" (176mm) behind front wheels, widest point
7.5" (190mm) at rear wheels, widest point
Height: 4.2" (106mm)

COMMENTS: For replacement, Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x11mm Spur Gear 1 DTXC1547
2 5x11mm Driveshaft 1 DTXC1547
2 8x12mm Rear Diff Assembly 1 DTXC1581
2 5x10mm Front Uprights 1 DTXC1535
2 5x10mm Rear Uprights 1 DTXC1535

jxs 04/06/15
ir/jxs
4950344586059 4950344586059
TAMC8605
