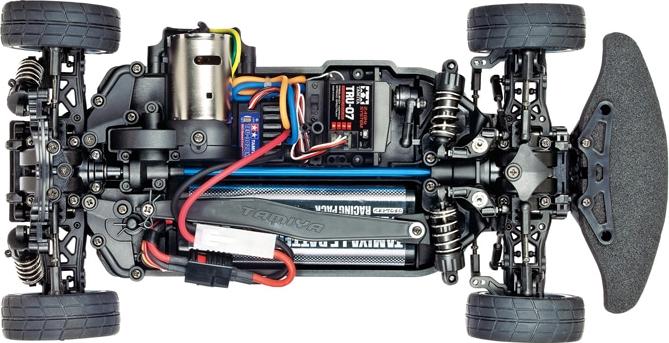

         This is the Radio Controlled, Electric Powered 1/10 scale
Tamiya TB-04 On-Road Racing Chassis Kit with the Raybrig NSX Concept-GT Body.

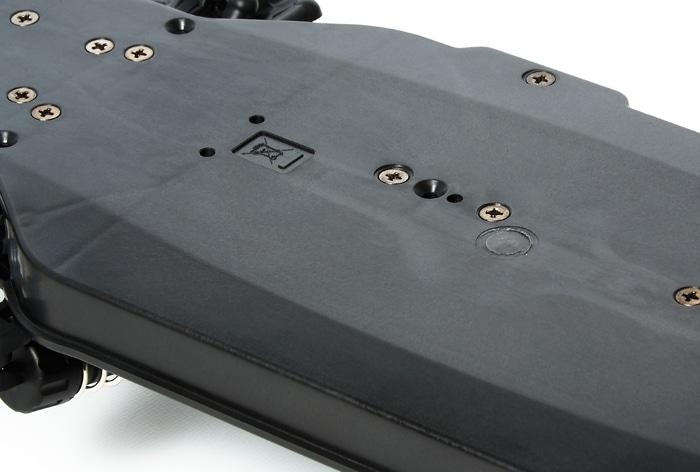

FEATURES: Chassis: FRP (fiber reinforced plastic)
Drive: Four wheel shaft drive with aluminum driveshaft
Transmission: Newly designed case provides increased stability
during acceleration

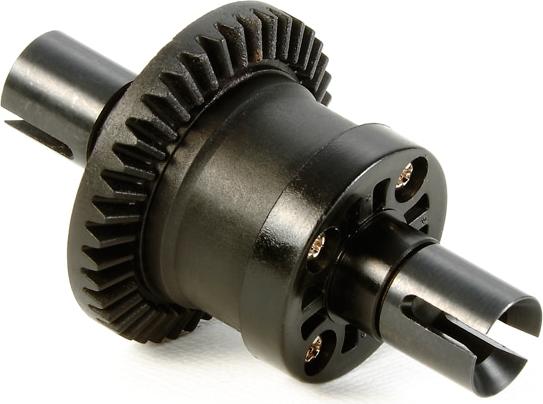

Differentials: Gear type, 40T ring gears and 16T bevel gears

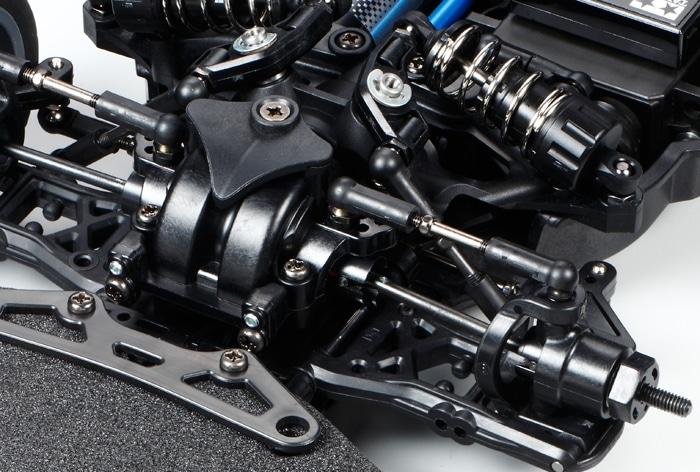

Suspension: Fully independent double wishbone, inboard front
suspension (IFS)
Shocks: CVA oil-filled, short touring car type
Steering: Bell crank with servo saver, long steering tie-rod system
refined from the TRF417 chassis

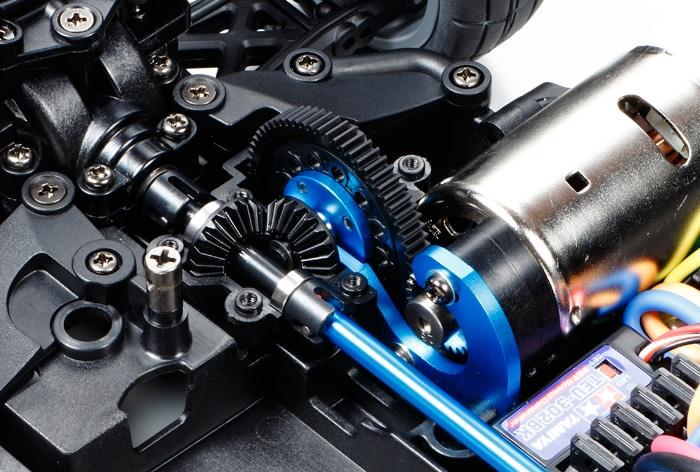

Motor Mount: Horizontal left rear position
Ball Bearings: Shielded
Bumper: Front urethane foam
Spur Gear: 66 tooth plastic
Pinion Gear: 25T metal
Tires: Slick rubber 0.94" (24mm) wide, 2.4" (62mm) outer diameter,
foam inserts
Wheels: 10 spoke black in color 0.90" (23mm) wide, 1.9" (48mm)

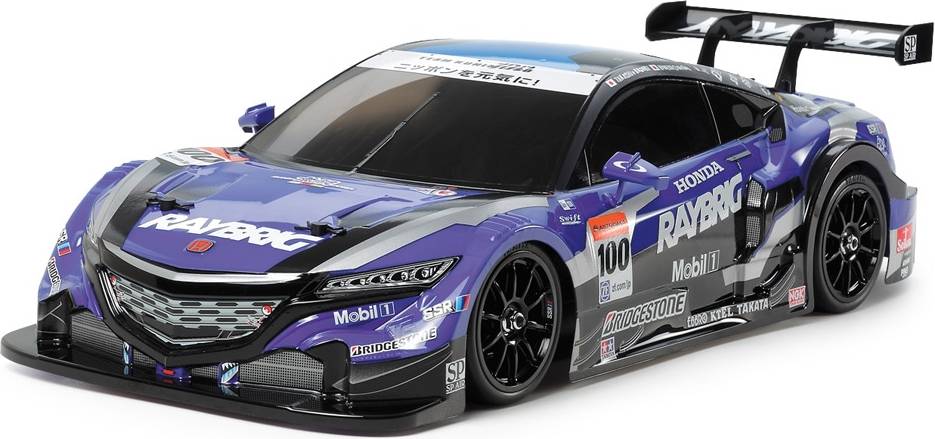

Body: Clear polycarbonate Raybrig NSX Concept-GT
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Steering Tie Rods: Adjustable front and rear, caster/toe-in refers
to the angle of the front suspension when viewed from the side of
the car in relation to the chassis

INCLUDES: TB-04 On-Road Chassis Kit with Wheels, Shocks, Shock Oil, Tires
Foam Inserts, Pinion Gear, Spur Gear, Clear Body, Decals and

REQUIRES: Radio: 2-channel with high speed steering servo
AA Batteries for transmitter
ESC: To match selected motor
Motor: 540 size, stock to mildly tuned
Battery: 6-cell 7.2V stick pack
Charger: To match selected battery
Building and track equipment

SPECS: Chassis-
Length: 14.06" (370mm)
Width: 7.4" (187mm)
Wheelbase: 10.1" (257mm)
Length: 17.3" (440mm)
Width: 7.5" (190mm)
Height: 4" (102mm)

COMMENTS: For replacement, Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 10x15mm Fr. Diff 1 DTXC1595
2 10x15mm Rear Diff 1 DTXC1595
2 5x10mm Rear Pilot Shaft 1 DTXC1535
1 8x4mm flanged Rear Pilot Shaft 1 DTXC1517
1 5x9mm Rear Gearbox 1 DTXC1531
1 5x11mm Rear Gearbox 1 DTXC1547
2 5x10mm Rear Axles 1 DTXC1535
2 5x10mm Front Axles 1 DTXC1535
2 3x7mm Steering 1 DTXC1506

jxs 12/05/14
