TAM58590

1/10 Zakspeed Ford Capri Gr.5 Jagermeister TT02

Product Info | Replacement Parts | Optional Items
RESOURCES

Replacement Parts (8)
Optional Items (9)
TAMIYA

TAM58590
1/10 Zakspeed Ford Capri Gr.5 Jagermeister TT02
By TAMIYA
$193.99 CAD    224.99
Save $31.00 (14%)

Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric On-Road Kits
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$193.99
Warehouse ?
Stock availability for pick up
0
$193.99
Warehouse ?
0
$193.99
Store - Charlottetown ?
0
$193.99
Store - Edmonton ?
0
$193.99
Store - Mississauga ?
0
$193.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
FEATURES
  • The 4-wheel independent double wishbone suspension features friction dampers and uses identical L/R suspension arms and uprights for ease of assembly and maintenance.
  • Both the motor and the battery are longitudinally-placed in the ABS resin chassis for excellent balance.
  • Upright assembly can be changed to give the chassis an extra 4mm of travel for Rally racing.
  • Includes Tamiya TBLE-02S ESC (capable of running brushed and brushless motors)
  • Includes 540 Torque Tuned motor.

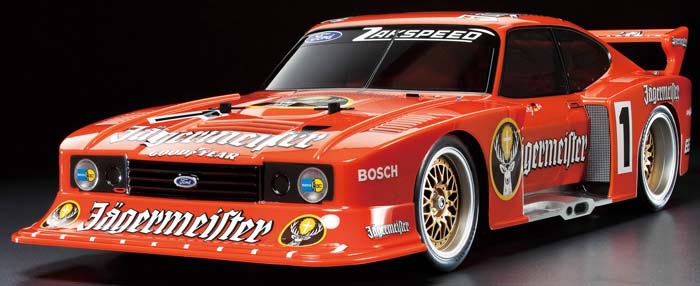

 The Zakspeed Ford Capri Turbo Gr.5 was powered by a 4-cylinder DOHC engine and had an instantly-recognizable low and wide form. A 1982 version of the car was decked out in distinctive orange Jägermeister livery and driven to a second place finish in the Salzburg round of the German Racing Championship by the German driver Klaus Ludwig.

Tamiya has faithfully reproduced this sleek racing machine in 1/10 scale on the TT-02 entry level touring car chassis. The TT-02 chassis platform is the successor to the TT-01 as it incorporates many new features to make it even easier for the new R/C kit builder to assemble and learn from. The TT-02 chassis performs well as cornering and overall speed has been enhanced to take advantage of new electronics available on the market. In addition to the TT-02 being an ideal platform to start from, R/C hobbyists can expand its potential by adding many of the Ho-Up-Options available to increase the cars speed and performance.

PRODUCT RESOURCES
VENDOR TECHNOTES
      This is the 1/10 scale, Tamiya electric powered, radio controlled,
Zakspeed Ford Capri Gr.5 On-Road Rally Car Kit.

FEATURES: Chassis: TT-02 ABS resin bathtub type minimizes contact with the road
upright assembly can be changed to give chassis an extra 4mm of
travel for Rally racing
Drive: Four wheel, shaft driven, with dogbones
Motor: Tamiya Sport Tuned 540 brushed with aluminum heat sink
Electronic Speed Control: Tamiya TBLE02S brushless compatible
Differential: Gear type
Wheels: Nylon construction, brake disc detail
Tires: Slick rubber with foam inserts
Suspension: Fully independent double wishbone
Shocks: Plastic body, friction, not oil filled
Body: Clear polycarbonate
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Steering: Bellcrank type
Bumper: Front, urethane

INCLUDES: Tamiya TT02 Zakspeed Ford Capri Gr.5, with 540 Brushed Motor, Tires,
Wheels, Foam Inserts, ESC, Decals and Instructions

REQUIRES: Radio: 2-channel with high speed steering servo
Battery: 7.2V NiMH
Battery Charger: To match selected battery
Building and track equipment

SPECS: Specs such as finished size of chassis not provided by manufacturer
Body;
Length: 16.5" (420mm)
Width: 8.19" (208mm)
Height: 3.89" (99mm)

COMMENTS: To upgrade to ball bearings order;
Qty. Size Location Qty Bearing Set
2 5x11mm Spur Gear 1 DTXC1547
2 5x11mm Driveshaft 1 DTXC1547
4 8x12mm Differential 2 DTXC1581
2 5x10mm Front Uprights 1 DTXC1535
2 5x10mm Rear Uprights 1 DTXC1535

jxs 03/05/14
ir/jxs
4950344585908 4950344585908
TAMC8590
