TAM58586

1/10 Tumbling Bull WR02G

Product Info | Replacement Parts | Optional Items
TAMIYA

TAM58586
1/10 Tumbling Bull WR02G
By TAMIYA
$239.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric 2WD Monster Truck Kits
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$239.99
Warehouse ?
StockStock availability for pick up
0
$239.99
Warehouse ?
0
$239.99
Store - Charlottetown ?
0
$239.99
Store - Edmonton ?
0
$239.99
Store - Mississauga ?
0
$239.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Small Metric 4-Way Wrench
$4.99

Driver Figure 4x4 Vehicle
$11.99

Heat Resist Dbl Side Tape
$7.99

Body Pin Set
$4.99
Monster Spike Tires 110
$21.99

TG10 Front Wheel Axle
$12.99

TL01 B Parts Upright
$11.99

Aluminum Servo Stay WR02/GF01
$23.99
FEATURES
  • Pre-assembled fully-enclosed gearbox with differential, and rear-wheel drive
  • Designed with a wheelie bar to enable fun, wheels in the air driving action
  • Driver figure included

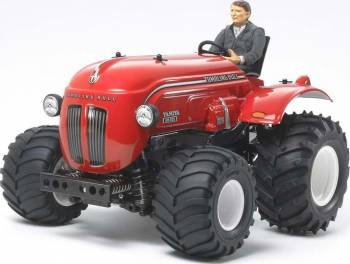

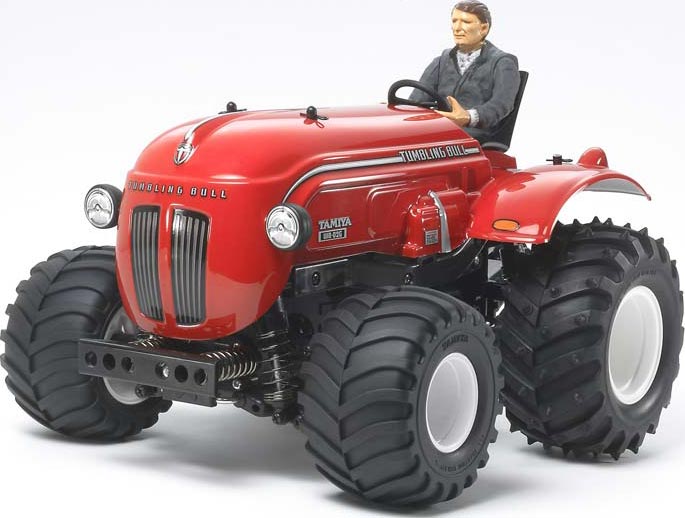

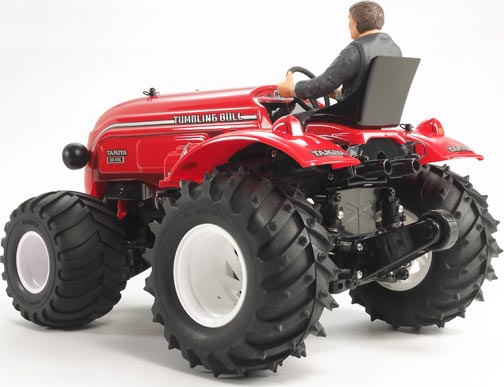

 The Tumbling Bull is a tractor truck reminiscent of a farm vehicle designed with a comical twist to compliment the Tamiya wheelie line-up of RC car kits and it is mounted on the Tamiya WR-02G wheelie chassis.

The WR-02G chassis features a 2WD drive drive-train with fully independent double wishbone suspension.

click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES
     This is the Tamiya 1/12 scale Electric Powered, Radio Controlled,
Tumbling Bull Tractor Kit.

FEATURES: Chassis: WR-02G monocoque with wheelie bar
Drive: Two wheel
Motor: 540 brushed
Electronic Speed Control: Tamiya TBLE-02S
Differentials: Front and rear in sealed gearbox integrated into frame
Body: Clear polycarbonate
Suspension: Fully independent double wishbone
Shocks: Plastic body friction
Steering: Bellcrank
Tires: Chevron pattern rubber, rear 5.1" (130mm) diameter,
front 3.8" (97mm) diameter
Wheels: White plastic
Bumper: Front spring loaded
Camber Tie Rods: Fixed non-adjustable
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis

INCLUDES: Tumbling Bull Tractor Kit with ESC, Motor, Clear Body,
Driver Figure, Tires, Wheels, Shocks and Instruction Manual

REQUIRES: Radio: 2-channel
Battery: 7.2V NiMH 6-cell stick pack with standard connector
Battery Charger: Compatible with selected battery
AA Batteries: For transmitter
Paint, building and track equipment

SPECS: Vehicle;
Length: 13.6" (345mm)
Width: 9.96" (253mm)
Height: 9.25" (235mm)
Body;
Length: 11.2" (285mm)
Width: 8" (203mm)
Height: 2.25" (57mm)

COMMENTS: For replacement or to upgrade to ball bearings order;
Qty. Size Location Qty Bearing Set
2 5x11mm Rear Uprights 1 DTXC1547
4 5x11mm Front Uprights 2 DTXC1547
5 5x11mm Gearbox 3 DTXC1547

To paint body to match picture on box, order:
PS-2 Red, TAMR8602
PS-5 Black, TAMR8605
X-18 Semi Gloss Black, TAMR1518
TAMR8118
XF-2 Flat White, TAMR1702
TAMR8402
XF10 Flat Brown, TAMR1710
TAMR8410
XF-15 Flat Flesh, TAMR1715
TAMR8415
XF-63 German Gray, TAMR1763
TAMR8463

jxs 03/04/14
4950344585861 4950344585861
TAMC8586
