1/10 Alfa Romeo 155 V6 Jagermeister TT-02
click to enlarge
- The 4-wheel independent double wishbone suspension features friction dampers and uses identical L/R suspension arms and uprights for ease of assembly and maintenance.
- Both the motor and the battery are longitudinally-placed in the ABS resin chassis for excellent balance.
- Upright assembly can be changed to give the chassis an extra 4mm of travel for Rally racing.

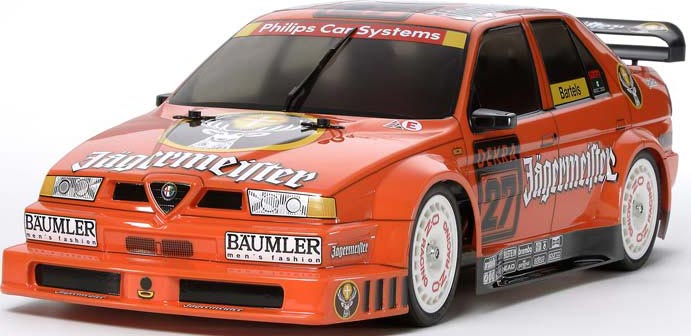

This is the Jägermeister-sponsored Alfa Romeo 155 V6 TI. The car made its debut in the 1993 season of the German Touring Car Championship (DTM) series, blowing the competition away en route to becoming that season's champion. While the works team used the newest 1994 spec of the car in the next year's DTM, the 1993 version was used by a number of private outfits including the Schübel Engineering team. The Schübel car was adorned with the orange livery of the German liquor Jägermeister, and it got its German sponsor some podium time by finishing third in the final round of the season.
Tamiya has faithfully reproduced this sleek racing machine in 1/10 scale on the TT-02 entry level touring car chassis. The TT-02 chassis platform is the successor to the TT-01 as it incorporates many new features to make it even easier for the new R/C kit builder to assemble and learn from. The TT-02 chassis performs well as cornering and overall speed has been enhanced to take advantage of new electronics available on the market. In addition to the TT-02 being an ideal platform to start from, R/C hobbyists can expand its potential by adding many of the Ho-Up-Options available to increase the cars speed and performance.
This is the 1/10 scale, electric powered, radio controlled, Tamiya TT02 Alpha Romeo 155 V6 TI Jagermeister Kit. FEATURES: Chassis: ABS resin bathtub type minimizes contact with the road Drive: Four wheel, shaft driven Motor: Tamiya Sport Tuned 540 brushed with aluminum heat sink Electronic Speed Control: Tamiya TBLE02S brushless compatible Differential: Gear type Wheels: Two-piece nylon construction, white in color Tires: Slick rubber Ball Bearings: Shielded Suspension: Fully independent double wishbone Shocks: Friction, not oil filled Camber: Non-adjustable, camber refers to the angle of the tops of the tires from vertical when viewed from front or behind vehicle Caster: Adjustable, caster/toe-in refers to the angle of the front suspension when viewed from the side of the car in relation to the chassis Steering: Bellcrank type Bumper: Front, urethane INCLUDES: Tamiya TT02 Alpha Romeo 155 V6 Chassis, with 540 Brushed Motor, ESC, Tires, Wheels, Decals and Instructions REQUIRES: Radio: 2-channel with high speed steering servo Electronic Speed Control: To match included motor Battery: 7.2V NiMH Battery Charger: To match selected battery Building and track equipment SPECS: Specs such as finished size of chassis not provided by manufacturer Body; Length: 18.1" (461mm) Width: 7.1" (180mm) Height: 4.76" (121mm) COMMENTS: To upgrade to ball bearings order; Qty. Size Location Qty Bearing Set 2 5x11mm Spur Gear 1 DTXC1547 2 5x11mm Driveshaft 1 DTXC1547 4 8x12mm Differential 2 DTXC1581 2 5x10mm Front Uprights 1 DTXC1535 2 5x10mm Rear Uprights 1 DTXC1535 jxs 01/27/14 ir/jxs
