1/10 Gopro Monster SS Swift M05
click to enlarge
- Low center of gravity design
- 3-piece steering linkage
- Servo, receiver and ESC are positioned at the rear for optimal balance
- Adjustable wheelbase lengths: 210mm, 225mm, 239mm
- Front mounted motor
- Semi-monocoque frame

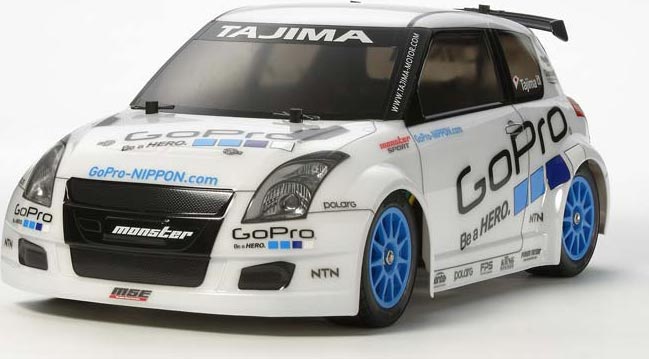

The GoPro Monster Sport Super Swift is a 6-time consecutive winner of the Pikes Peak International Hill Climb race held in the U.S. It is based on the Suzuki Swift and custom-built by Monster Sport. The 4WD car features wind tunnel-tested aerodynamics and a 400hpplus 1.9-liter engine.

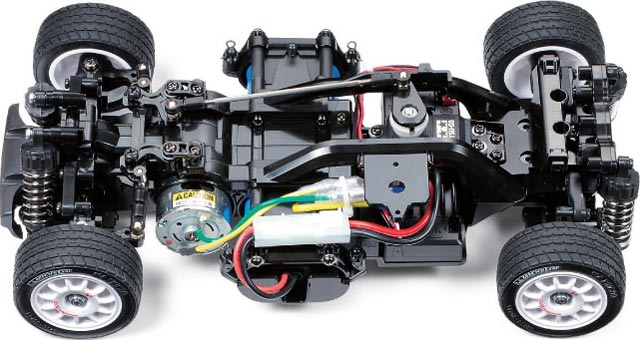

The Tamiya R/C model faithfully captures the fun and maneuverability of the real life subject as it comes on the proven M-05 M-chassis platform. The M-05 is a simple to build FWD (front wheel drive) machine, which allows for plenty of after-market parts to be outfitted as you grow with your skill. The lightweight, narrow semi-monocoque frame offers an optimized weight distribution and a low center of gravity. A ground-hugging 4-wheel independent double wishbone suspension and a 3-piece steering linkage ensure excellent stability during high-speed cornering.
Three wheelbase lengths (210mm, 225mm, 239mm) are possible by simply switching the position of the rear suspension parts, enabling a wide range of body choices available from Tamiya.
This is the radio controlled, electric powered, 1/10 scale GoPro Monster Sport Super Swift On-Road kit from Tamiya. FEATURES: Chassis: M5 resin monocoque design, composite construction with extensions to build a short, medium or long wheelbase chassis Drive: Front wheel Shocks: Plastic body friction type Shock Towers: Composite construction Motor: 540 size Electronic Speed Control: Tamiya TEU-105BK with reverse Gearbox: Sealed, integral with chassis Transmission: Single speed, ball bearing equipped Differential: Three bevel gear Body: Polycarbonate, clear untrimmed Suspension: Four wheel independent double wishbone Tires: Treaded 60D radial 0.98" (25mm) wide, 2.3" (59mm) diameter with foam inserts Wheels: Plastic, blue in color 11 spoke 0.94" (24mm) wide, 1.5" (38mm) diameter Camber: Non-adjustable, camber refers to the angle of the tops of the tires from vertical when viewed from front or behind vehicle Caster: Adjustable, caster/toe-in refers to the angle of the front suspension when viewed from the side of the car in relation to the chassis Steering: Three piece tie-rod linkage INCLUDES: M-05 chassis, tires, wheels, foam inserts, GoPro body, decals, foam inserts, 20 tooth pinion gear, shocks, ESC, motor and instruction manual REQUIRES: Radio: 2-channel AA Batteries: 8 for transmitter Battery: 6-cell stick with standard connector Battery Charger: Peak type recommended Building and track equipment SPECS: Vehicle; Length: 14.4" (365mm) Width: 6.7" (170mm) Height: 5.6" (142mm) Wheelbases: 8.3" (210mm), 8.8" (225mm), 9.4" (239mm) Tread: 5.4" (138mm) center of wheels, side-to-side Body; Length: 13.6" (345mm) Width: 6.1" (155mm) Height: 4" (102mm) COMMENTS: For Replacement or to Upgrade To Ball Bearings use: Qty. Size Location Qty. Bearing Set 1 5x8mm Counter Gear 1 DTXC1523 1 5x11mm Counter Gear 1 DTXC1547 1 5x8mm Spur Gear 1 DTXC1523 1 5x11mm Spur Gear 1 DTXC1547 2 5x11mm Output Shaft 1 DTXC1547 2 5x11mm Front Axles 1 DTXC1547 2 5x10mm Rear Axles 1 DTXC1535 jxs 11/20/13 ir/jxs
