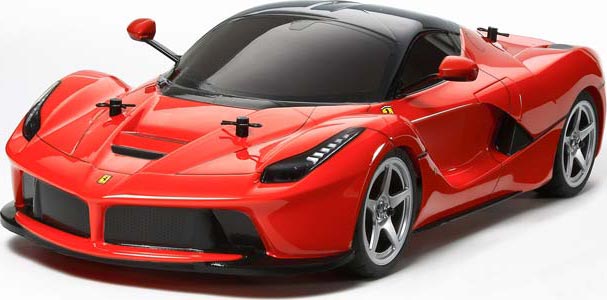

1/10 Laferrari TB04
By TAMIYA
Discontinued
Click to Enlarge
click to enlarge

More like this... R/C Electric On-Road Kits
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$369.99
Warehouse ?
StockStock availability for pick up
0
$369.99
Warehouse ?
0
$369.99
Store - Charlottetown ?
0
$369.99
Store - Edmonton ?
0
$369.99
Store - Mississauga ?
0
$369.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
3mm Grub Screw 44002
$5.99

Body Set Zakspeed Capri GR5 Jagermeister Ford
$68.99

Pinion Gear Set 24/25T
$9.99

E Parts Rear Upright TB03
$5.99
2mm E-Ring 44002
$3.49

Carbon Rein Hub Carrier 4 Degree For Rev. Sus.
$12.99

Damper O-Ring 44002
$3.99

RC TB04 Pilot Shaft Front/Rear Aluminum
$21.99
click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES
         This is the Radio Controlled, Electric Powered 1/10 scale
Tamiya TB-04 Pro On-Road Circuit Chassis Kit.

FEATURES: Chassis: Plastic, low CG, longitudinal battery placement, and left
rear horizontal motor placement for superior stability
Drive: Four wheel shaft drive with aluminum driveshaft
Transmission: Newly designed case provides increased stability
during acceleration
Differentials: Gear type, 40T ring gears and 16T bevel gears
Suspension: Short reversible double wishbone type with IFS (Inboard
Front Suspension) that positions the front shocks horizontally and
low to the chassis to enable the use of low profile sports car
bodies
Shocks: Plastic body, oil-filled, short touring car type
Steering: Bell crank with servo saver, long steering tie-rod system
refined from the TRF417 chassis
Motor Mount: New motor guard protects motor upon impacts
Ball Bearings: Shielded
Bumper: Front foam
Spur Gear: 66 tooth plastic
Pinion Gear: 25T metal
Tires: Rubber with on-road tread 1.02" (26mm) wide, 2.5" (64mm)
outer diameter, foam inserts
Wheels: Five spoke gun-metal gray in color 0 offset, 1" (25.4mm)
wide, 1.9" (48mm) diameter
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Steering Tie Rods: Adjustable front and rear, caster/toe-in refers
to the angle of the front suspension when viewed from the side of
the car in relation to the chassis

INCLUDES: TB-04 Pro On-Road Chassis Kit with Wheels, Shocks, Shock Oil, Tires
Foam Inserts, Pinion Gear, Spur Gear, Clear Body, Decals and
Instructions

REQUIRES: Radio: 2-channel with high speed steering servo
AA Batteries for transmitter
ESC: To match selected motor
Motor: 540 size stock to mildly tuned
Battery: 6-cell 7.2V stick pack
Charger: To match selected battery
Building and track equipment

SPECS: Chassis-
Length: 18.07" (459mm)
Wheelbase: 10.1" (257mm)
Body-
Length: 18" (457mm)
Width: 7.5" (190mm)
Height: 3.5" (89mm)

COMMENTS: For replacement, Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 10x15mm Fr. Diff 1 DTXC1595
2 10x15mm Rear Diff 1 DTXC1595
2 5x10mm Rear Pilot Shaft 1 DTXC1535
1 8x4mm flanged Rear Pilot Shaft 1 DTXC1517
1 5x9mm Rear Gearbox 1 DTXC1531
1 5x11mm Rear Gearbox 1 DTXC1547
2 5x10mm Rear Axles 1 DTXC1535
2 5x10mm Front Axles 1 DTXC1535
2 3x7mm Steering 1 DTXC1506
