TAM58574

1/10 Gazoo Racing TRD 86 TT-02

Product Info | Replacement Parts | Optional Items
RESOURCES

Replacement Parts (8)
Optional Items (7)
TAMIYA

TAM58574
1/10 Gazoo Racing TRD 86 TT-02
By TAMIYA
$199.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric On-Road Kits
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$199.99
Warehouse ?
Stock availability for pick up
0
$199.99
Warehouse ?
0
$199.99
Store - Charlottetown ?
0
$199.99
Store - Edmonton ?
0
$199.99
Store - Mississauga ?
0
$199.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES

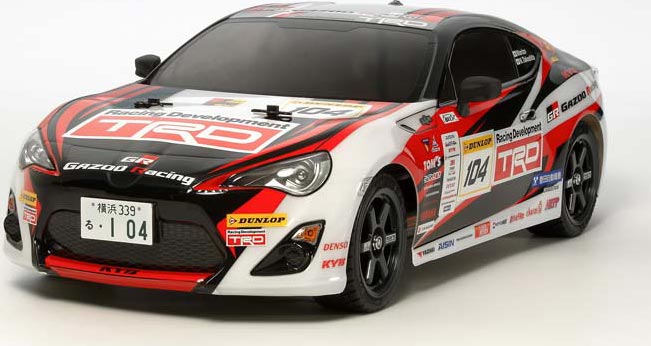

          This is the Radio Controlled, Electric Powered, 1/10 scale,
TT-02 Gazoo Racing Toyota TRD 86 On-Road Car Kit from Tamiya.

FEATURES: Chassis: Plastic, TT-02
Drive: Four wheel shaft drive
Motor: Torque-Tuned 540 size brushed
ESC: TBLE-02 brushless compatible
Differential: Four pinion resin gear type
Suspension: Fully independent double wishbone
Shocks: Plastic body, friction (not oil-filled)
Tires: Treaded rubber 2.5" (65mm) diameter, 1.02" (26mm) wide
Wheels: 6-spoke gun-metal gray plastic 1.02" (26mm) wide, 2" (51mm)
diameter, 12mm hex, +2 offset
Steering: Bellcrank type
Body: Polycarbonate, with separate light cases and rear wing
Bumper: Front foam
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable front only, caster/toe-in refers to the angle of
the front suspension when viewed from the side of the car in
relation to the chassis

INCLUDES: TT-02 Gazoo Racing Toyota On-Road Chassis with Brushed Motor, ESC,
Body, Decals, Tires, Wheels, 22T Pinion Gear, 70T Spur Gear, and
Instruction Manual

REQUIRES: Radio: 2-ch with steering servo
Battery: 7.2V stick pack with standard connector
Battery Charger: For selected battery pack
Track and maintenance equipment

SPECS: Vehicle-
Length: 17" (431mm)
Wheelbase: 10.1" (257mm)
Body-
Length: 16.7" (425mm)
Width: 7.9" (200mm)
Height: 4.1" (105mm)

COMMENTS: For replacement, or to upgrade to ball bearings use:
Qty. Size Location Qty. Bearing Set
2 5x11mm Spur Gear 1 DTXC1547
2 5x11mm Propeller Shaft 1 DTXC1547
2 8x12mm Ring Gear 1 DTXC1581
4 8x12mm Differential 2 DTXC1581
2 5x10mm Front Uprights 1 DTXC1535
2 5x10mm Rear Hubs 1 DTXC1535

jxs 10/03/13
ir/jxs
4950344585748 4950344585748
TAMC8574
