TAM58571

1/10 Porsche 911 Carrera TT02

Product Info | Replacement Parts | Optional Items
TAMIYA

TAM58571
1/10 Porsche 911 Carrera TT02
By TAMIYA
$193.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric On-Road Kits
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$193.99
Warehouse ?
StockStock availability for pick up
0
$193.99
Warehouse ?
0
$193.99
Store - Charlottetown ?
0
$193.99
Store - Edmonton ?
0
$193.99
Store - Mississauga ?
0
$193.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Finishing Abrasives Set Medium
$5.99

Small Metric 4-Way Wrench
$4.99

3mm Grub Screw 44002
$5.99

Body Pin Set
$4.99
Body Mount Extension Set
$9.99

Aluminum Motor Mount TT02
$26.99

P Parts TT-01
$6.99

Alum Motor Heat Sink TT02
$18.99
click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES

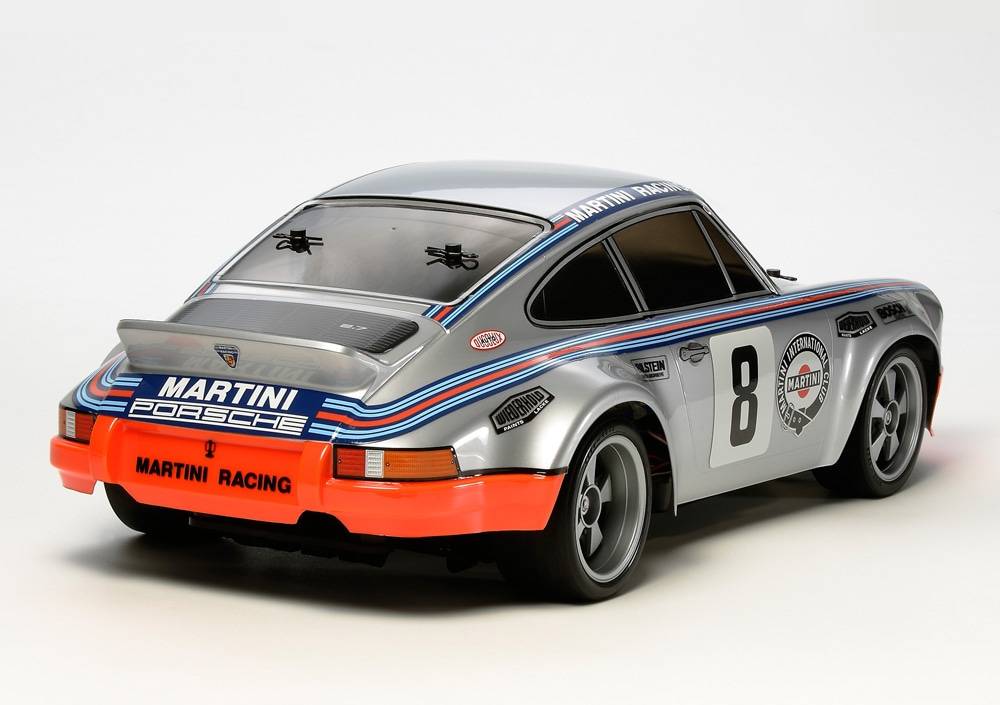

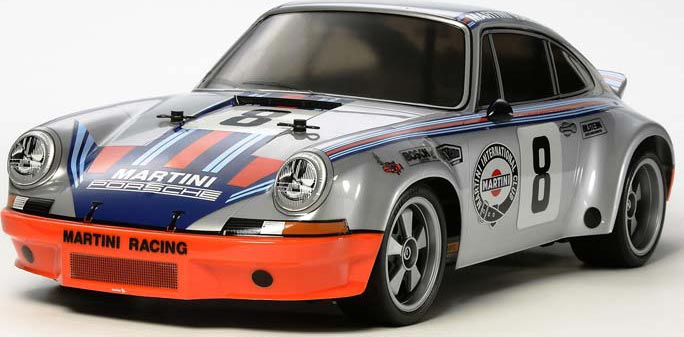

          This is the Radio Controlled, Electric Powered, 1/10 scale,
TT-02 Porsche 911 Carrera RSR On-Road Car Kit from Tamiya.

FEATURES: Chassis: TT-02 ABS resin bathtub type, with skid shaped underside to
reduce contact with track surface during cornering
Drive: Four wheel drive, dogbone
Motor: Torque-Tuned 540 size brushed (380 size motors can be used)
ESC: TEU-105BK with reverse
Differential: Gear type
Spur Gear: 70 tooth plastic
Pinion Gear: 22 tooth metal
Suspension: Fully independent double wishbone
Shocks: Plastic body, friction (not oil filled)

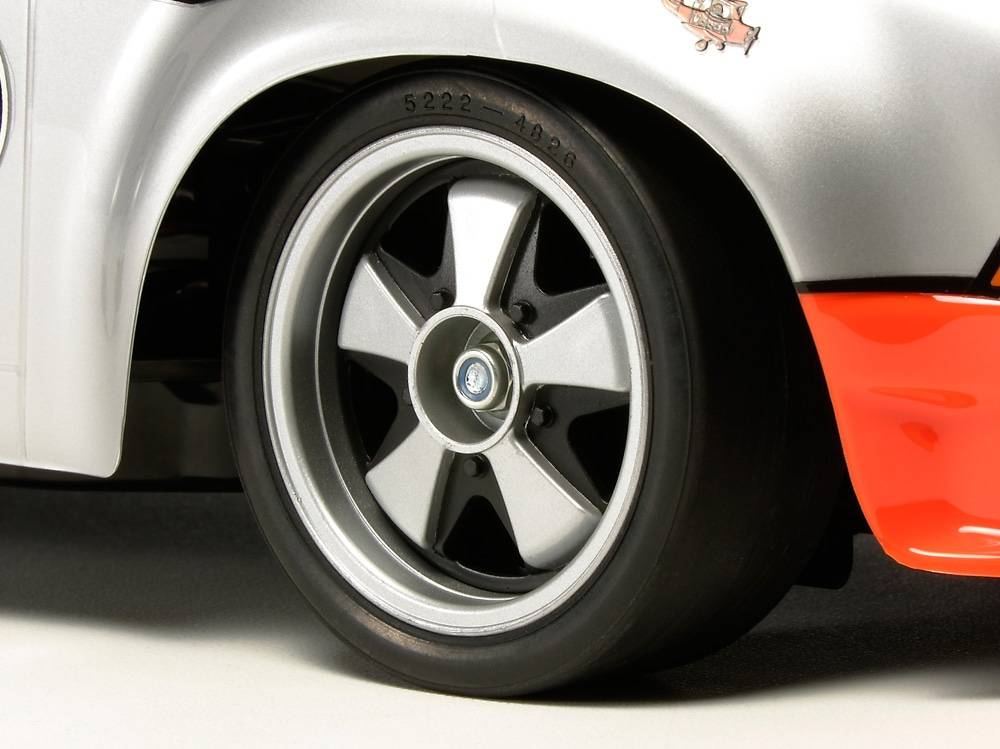

Tires: Slick rubber 2.5" (64mm) diameter, front width 1.02" (26mm),
rear width 1.2" (31mm), with foam inserts
Wheels: Gray plastic 2" (50.8mm) diameter, front width 1" (26mm),
rear width 1.2" (32mm)
Steering: Bellcrank type
Body: Polycarbonate
Bumper: Front foam
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable front only, caster/toe-in refers to the angle of
the front suspension when viewed from the side of the car in
relation to the chassis

INCLUDES: TT-02 Porsche 911 Carrera RSR with Brushed Motor, ESC, Body, Tires
Wheels, Foam Inserts, Decals, and Instruction Manual

REQUIRES: Radio: 2-ch with steering servo
Battery: 7.2V stick pack with standard connector
Battery Charger: For selected battery pack
Polycarbonate safe spray or brush-on paint
Track and maintenance equipment

SPECS: Vehicle-
Specs such as length, width, height and weight not provided by
manufacturer
Wheelbase: 9.9" (251mm) - 10.1" (257mm)
Body-
Length: 18" (457mm)
Width: 8.2" (209mm) at rear wheels, widest point
Height: 4.1" (105mm)

COMMENTS: To upgrade to ball bearings order;
Qty. Size Location Qty Bearing Set
2 5x11mm Spur Gear 1 DTXC1547
2 5x11mm Driveshaft 1 DTXC1547
4 8x12mm Differential 2 DTXC1581
2 5x10mm Front Uprights 1 DTXC1535
2 5x10mm Rear Uprights 1 DTXC1535

jxs 08/09/13
ir/jxs
