Home » Product Info »
TAM58551

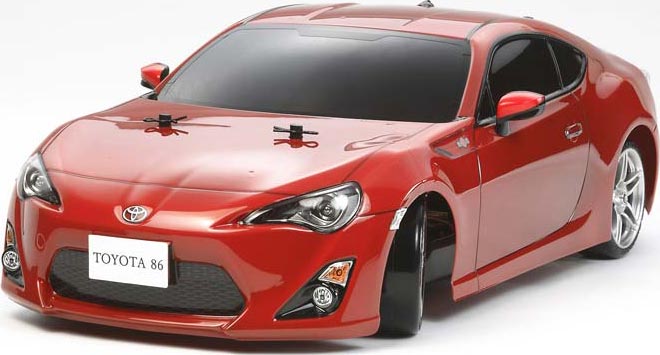

1/10 Toyota 86 Drift Spec TT-01E

Product Info | Replacement Parts | Optional Items
RESOURCES

Replacement Parts (20)
Optional Items (18)
TAMIYA

TAM58551
1/10 Toyota 86 Drift Spec TT-01E
By TAMIYA
$275.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric On-Road Drift Car Kits
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$275.99
Warehouse ?
Stock availability for pick up
0
$275.99
Warehouse ?
0
$275.99
Store - Charlottetown ?
0
$275.99
Store - Edmonton ?
0
$275.99
Store - Mississauga ?
0
$275.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES
                   This is the electric powered 1/10 scale,
Toyota 86 On-Road Drift Spec Car Kit from Tamiya.

FEATURES: Chassis: TT-01D type E with shock tower now molded separately from
the gear case covers and new upper deck with transponder mount
new A parts (Uprights) made of polycarbonate plastic material
new D parts (upper deck, motor cover and more) made of fiberglass-
reinforced nylon material
Drive: Four wheel shaft drive
Electronic Speed Control: TEU-105BK, TAMC5055
Motor: 540 motor with pre-attached leads and blue aluminum heat sink
Ball Bearings: Installed in differentials, bushings in wheel hubs
Shocks: Oil-filled, plastic body CVA Super Mini
Gearbox: Sealed, front and rear
Differentials: Bevel gear, ball bearing equipped
Transmission: Single speed
Body: Polycarbonate, clear
Tires: Super Driftech drift spec resin 1" (26mm) wide, 2.5" (63mm)
diameter
Wheels: Plastic five spoke, gun metal gray in color, 2.0" (52mm)
outer diameter, 0.94" (24mm) wide, +2 offset
Bumper: Front foam
Suspension: Independent double wishbone
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Steering: Bell-crank type with servo saver

INCLUDES: Tamiya Toyota 86 On-Road Drift Spec Car kit, 540 motor, ESC, clear
body, tires, foam bumper, spoke wheels, 19 tooth pinion gear, 61
tooth spur gear, decals and instructions

REQUIRES: Radio: 2-channel with one servo
Radio Batteries: 8 AA size (for transmitter)
Battery: 6-cell stick pack with standard connector
Charger: AC/DC timed or peak for 6-cell battery
Misc. Items: Building and track equipment

SPECS: VEHICLE-
Length: 17.4" (444mm)
Width: 7.4" (187mm)
Height: 5.2" (132mm)
Weight: Approx. 3.1lbs (1400g)
Wheelbase: 10" (251mm)

BODY-
Length: 16.9" (430mm)
Width: 7.5" (190mm)
Height: 4.2" (108mm)

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty Bearing Set
12 5 x11mm front & rear diff gears, hubs 6 DTXC1547
4 8 X12mm front & rear diff gears 2 DTXC1597

jxs 01/30/13
ir/jxs
4950344585519 4950344585519
TAMC8551
