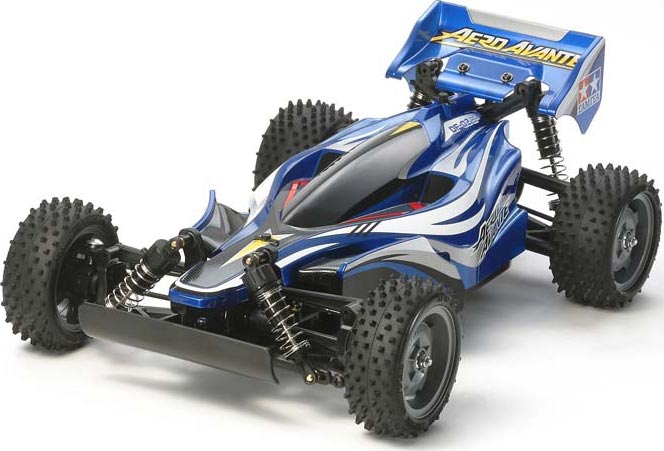

   This is the 1/10 scale electric powered, radio controlled, 4 wheel drive
Tamiya Aero Avante Off-Road Buggy kit.
_
FEATURES: Chassis: ABS plastic DF-02 bathtub style
Drive: Four wheel shaft drive
Motor: 540 size
Electronic Speed Control: Tamiya TEU-105BK with reverse
Shocks: Four oil-filled plastic bodied with 5mm ball connectors
Gearboxes: Front and rear sealed, ball bearing equipped
Differentials: Planetary metal gears
Transmission: Single-speed
Body: Polycarbonate buggy, clear and untrimmed
Tires: Spike, 3.4" (86mm) outer diameter, 2.2" (56mm) inner diameter
Rear Width, 1.5" (38mm), Front Width, 1.2" (30mm)
Wheels: One piece, gray in color 2.1" (54mm) diameter
Rear Width, 1.1" (29mm), Front Width, 0.94" (24mm)
Bumpers: Plastic, front and rear
Suspension: Front and rear double wishbone four wheel independent
Camber: Non adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable steering tie rods, caster/toe-in refers to the
angle of the front suspension when viewed from the side of the car
in relation to the chassis
Steering: Bell-crank type with servo saver

INCLUDES: Tamiya 1/10 scale Aero Avante Buggy with oil-filled shocks, 540
motor, clear buggy body, tires, wheels, 19 tooth pinion gear,
decal sheet, ESC, 70 tooth spur gear and instructions
_
REQUIRES: Radio: 2-Channel with 1 standard size steering servo
Radio Batteries: (8) AA size
Battery: 6-cell stick with Tamiya type connector
Charger: AC/DC timed or peak for 6-cell battery
Misc. Items: Building and track equipment

SPECS: Length: 15.7" (400mm)
Width: 9.8" (249mm)
Height: 5.7" (145mm)
Weight: 2.6 lbs (1195g) approx.
BODY-
Length: 13" (330mm)
Width: 7.25 (184mm) behind front wheels (widest point)
1.3" (33mm) ahead of front wheels (thinnest point)
Height: 3" (76mm)

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x11mm Rear Diff 1 DTXC1547
1 8x12mm Front Diff 1 DTXC1581
2 8x12mm Rear Diff 1 DTXC1581
2 5x11mm Drive Shaft 1 DTXC1547
2 5x11mm Front Axles 1 DTXC1547
2 5x11mm Rear Axles 1 DTXC1547

To paint body to match photo on box use Tamiya PS-16 Polycarb spray
Metallic Blue (TAMR8616)
