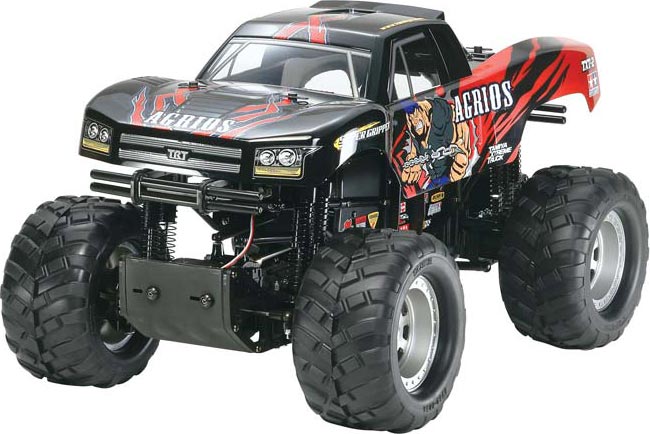

          This is the Radio Controlled, Electric Powered, 1/10 scale
Agrios 4x4 Monster Truck Kit.

FEATURES: Chassis: TXT-2, resin covered aluminum shaft side frames fitted with
black aluminum panels
Drive: Four wheel shaft
Motors: Two 540 brushed with 19T pinions
Suspension: Four link rigid
Differentials: Bevel gear
Wheels: One-piece plastic with silver colored finish
Tires: 3.2" (82mm) wide, 5.9" (151mm) diameter with foam inserts
Body: Clear untrimmed 0.047" (1.2mm) thick polycarbonate
Shocks: Eight plastic body oil-filled

INCLUDES: Agrios 4x4 Monster Truck Kit, two 540 brushed motors, clear body,
tires, foam inserts, wheels, decals and instruction manual

REQUIRES: Radio: 2-channel with high torque steering servo
ESC: Tamiya TEU-106BK Twin Motor ESC
Battery: 7.2V NiMH stick pack with standard connector, at least
2500mAh to power the twin motors
Battery Charger: Compatible with selected battery
Building and track equipment

SPECS: Vehicle;
Length: 20.08" (510mm)
Width: 13.54" (344mm)
Height: 11.10" (282mm)
Body;
Length: 19.5" (497mm)
Width: 8.5" (216mm)
Height: 4.5" (115mm)

COMMENTS: To paint body to match photos on box, order the following Tamiya
Colors;
PS-15 Metal Red, TAMR8615
PS-5 Black, TAMR8605

For Replacement or to Upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
4 5x11mm Gearbox 2 DTXC1547
1 6x11mm Gearbox 1 HPIC2599
4 5x11mm Drive Gear 1 DTXC1547
2 5x8mm Drive Gear 1 DTXC1523
2 6x12mm Drive Shaft 1 DTXC1569
4 6x12mm Rear Uprights 1 DTXC1569
4 6x12mm Front Uprights 1 DTXC1569
