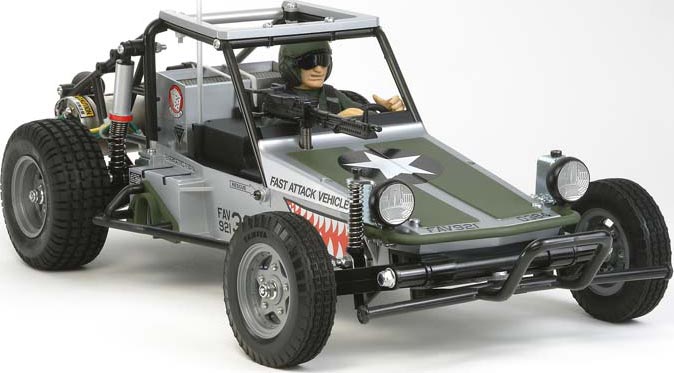

          This is the electric powered, radio controlled 1/10 scale
Tamiya Fast Attack Off Road Vehicle Kit with Shark Mouth Decals.
This version includes a WWII era Air Force Star and Shark Mouth Decals.

FEATURES: Chassis: Bathtub style ABS resin plastic construction
Drive: Rear wheel
Motor: Johnson/Mabuchi 540-J size, brushed
Pinion Gear: 15 tooth
Electronic Speed Control: Tamiya TEU-104BK with reverse
Body: Resin molded in tan
Gearbox: Enclosed
Differential: Bevel gear type
Suspension: Front and rear trailing arm with front coil springs and
rear shocks
Decals: WW II era Air Force star and shark mouth decals
Wheels: Three piece front and rear
Tires: Treaded rubber, off-road
Caster: Non-adjustable, caster/toe-in refers to the angle of the
front suspension when viewed from the side of the car in relation
to the chassis
Camber: Non-adjustable, camber refers to the angle of the tops of
the tires from vertical when viewed from front or behind vehicle

INCLUDES: Fast Attack Off Road Vehicle Kit, 540 Motor, ESC, 15T Pinion Gear,
Helmeted Driver Figure, Decal Sheet, Tires, Wheels and Instructions

REQUIRES: Radio: Two-channel with standard servo for steering
AA Batteries: Eight for transmitter
Battery: 7.2V 6-cell stick pack with standard connector
Battery Charger: Peak type recommended
Paint, tools and track equipment

SPECS: Length: 16.9" (430mm)
Width: 8.7" (220mm)
Height: 5.9" (150mm)
Weight: 2.64lbs (1200g)

COMMENTS: To upgrade to ball bearings, use;
Qty. Size Location Qty. Bearing Set
1 5x11mm Spur Gear 1 DTXC1547
1 5x8mm Gearbox 1 DTXC1523
1 5x11mm Spur Gear 1 DTXC1547
2 5x11mm Rear Axles 1 DTXC1547
4 5x11mm Front Hubs 2 DTXC1547
2 5x11mm Rear Hubs 1 DTXC1547
