TAM58537

1/10 Desert Fielder Kit

Product Info | Replacement Parts
TAMIYA

TAM58537
1/10 Desert Fielder Kit
By TAMIYA
Discontinued
Click to Enlarge
click to enlarge

More like this... R/C Electric Desert Racer Kits
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$210.79
Warehouse ?
StockStock availability for pick up
0
$210.79
Warehouse ?
0
$210.79
Store - Charlottetown ?
0
$210.79
Store - Edmonton ?
0
$210.79
Store - Mississauga ?
0
$210.79
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Small Metric 4-Way Wrench
$4.99

3mm Grub Screw 44002
$5.99

Heat Resist Dbl Side Tape
$7.99

Body Pin Set
$4.99
TG10 Front Wheel Axle
$12.99

Diff Bevel Gear Set 49/84
$7.99

Pinion Gear Set 16/17T
$9.99

540 Johnson Motor
$28.99
click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES

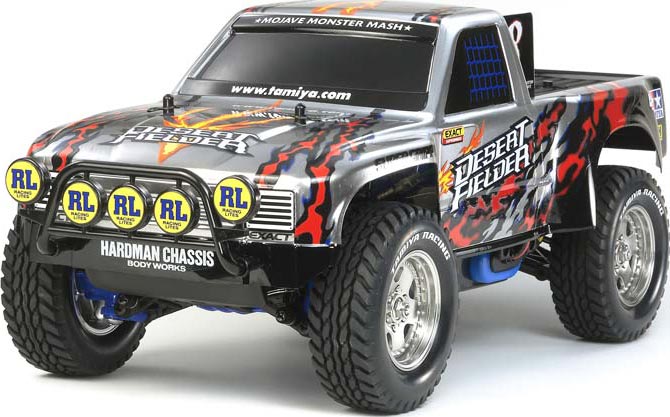

           This is the Radio Controlled, Electric Powered 1/10 Scale
Desert Fielder 4x4 Racing Truck Kit from Tamiya.

FEATURES: Chassis: ABS plastic bathtub style
Drive: Four wheel shaft drive
Motor: 540 size brushed
Electronic Speed Control: Tamiya TEU-104BK with reverse
Suspension: Independent double wishbone with upper I and lower H arms
Gearboxes: Sealed, front gearbox has diff gear and rear gearbox has
ball differential
Body: Clear molded polycarbonate
Shocks: Oil-filled
Tires: Block pattern off-road racing, 1.2" (31mm) wide, 3.5" (89mm)
diameter
Wheels: Two sets, five spoke brushed chrome finish, and polished
chrome finish 1.02" (26mm) wide, 1.9" (48mm) diameter
Spur Gear: 74 tooth plastic
Pinion Gear: 17 tooth steel
Steering: Bell crank type
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster/Toe-In: Adjustable front only, caster/toe-in refers to the
angle of the front suspension when viewed from the side of the car
in relation to the chassis

INCLUDES: Desert Fielder 4x4 Racing Truck Kit with 540 Brushed Motor, ESC,
Clear Body, Shock Oil, Tires, set of Brushed Chrome and Polished
Chrome Wheels, Decals, and Instruction Manual

REQUIRES: Radio: 2-channel with high torque steering servo
Battery: NiMH or NiCd 7.2V stick pack with Kyosho type connector
Battery Charger: For selected battery
Paint, tools and field equipment

SPECS: Vehicle;
Length: 16.9" (430mm)
Width: 7.5" (190mm)
Height: 6.5" (166mm)
Body;
Length: 16.3" (414mm)
Width: 7" (177mm) at rear wheels (widest point)
Height: 4.2" (106mm)

COMMENTS: To upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x11mm Rear Gearbox 1 DTXC1547
1 5x8mm Spur Gear 1 DTXC1523
1 5x11mm Spur Gear 1 DTXC1547
2 5x8mm Idler Gear 1 DTXC1523
4 5x11mm Rear Axles 2 DTXC1547
2 5x11mm Front Gearbox 1 DTXC1547
1 5x8mm Counter Gear 1 DTXC1523
1 5x11mm Counter Gear 1 DTXC1547
4 5x11mm Front Uprights 2 DTXC1547
