TAM58534

1/10 F104 Version II Chassis Kit

Product Info | Replacement Parts | Optional Items
TAMIYA

TAM58534
1/10 F104 Version II Chassis Kit
By TAMIYA
$358.99 CAD
Order Quantity:
No Picture Available

More like this... R/C Electric On-Road F1 Kits
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$358.99
Warehouse ?
StockStock availability for pick up
0
$358.99
Warehouse ?
0
$358.99
Store - Charlottetown ?
0
$358.99
Store - Edmonton ?
0
$358.99
Store - Mississauga ?
0
$358.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Small Metric 4-Way Wrench
$4.99

3mm Grub Screw 44002
$5.99

Body Pin Set
$4.99

Tire Front Soft F104
$38.99
F1 Tire Hard Rear
$44.99

F Parts Susp Arm Front F104
$8.99

Heat Resist Dbl Side Tape
$7.99

F104 Metal Plated Wheels For Sponge Tires
$13.99
click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES

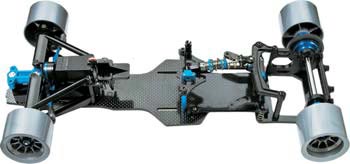

          This is the 1/10 Scale Radio Controlled, Electric Powered,
F104 Version II Pro Chassis Kit from Tamiya.

FEATURES: Chassis: Carbon fiber 0.12" (3mm) thick, (2mm) carbon fiber upper
deck, 0.12" (3mm) thick carbon fiber lower deck, lower brace,
and body mount plate
Drive: 2WD direct, solid axle
Differential: Ball pressure plate type
Suspension: Front, independent kingpin coil spring, Rear, pivot ball
link, aluminum upper suspension mount
Spur Gear: 04 module 93T/104T
Pinion Gear: 23T
Wheels: Front 1.2" (30mm) wide, 1.7" (44mm) diameter
Rear 1.4" (35mm) wide, 1.7" (44mm) diameter
Shock: Oil filled, adjustable angle
Steering: Direct servo mechanism
Caster: Non-adjustable, caster/toe-in refers to the angle of the
front suspension when viewed from the side of the car in relation
to the chassis
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle

INCLUDES: F104 Version II Pro Chassis Kit, Wheels, Decals, Spur Gear, Pinion
Gear, and Instruction Manual

REQUIRES: Radio: 2-channel with standard size high speed steering servo
Motor: 540 size
Battery: 6-cell 7.2V NiMH stick pack
Battery Charger: For selected battery
Tires: Foam
Tire glue and building & field equipment

SPECS: Finished size not provided by manufacturer
Wheelbase: Adjustable
Ride Height: Adjustable
Track Width: Fixed

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 6x10mm Rear Shaft 1 DTXC1561
2 8x12mm Differential 1 DTXC1581
1 5x11mm Differential 1 DTXC1547

jxs 08/01/12
ir/jxs
4950344585342 4950344585342
TAMC8534
