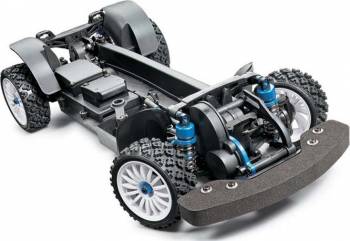

         This is the Electric Powered, Radio Controlled, 1/10 scale
XV-01 Pro Chassis Kit from Tamiya.
Common all-terrain platform which can be used for rally cars, on-road cars
on-road cars and pickup trucks.

FEATURES: Chassis: Molded plastic with front and rear wheel well liners for
protection against mud
Drive: Four wheel reinforced belt drive
Differentials: Bevel gear
Steering: Long tie-rod system to reduce bump steer, high torque servo
Suspension: Double wishbone, reversible rear suspension for off-road
driving and toe angle setting changes
Ball Bearings: Full set
Shocks: TRF plastic body, oil filled
Battery Access: Hatch on underside of chassis
Tires: All terrain rubber 1.02" (26mm) wide, 2.6" (65.4mm) diameter
with foam inserts
Wheels: 16 spoke white plastic, 1" (25.4mm) wide, 1.9" (48mm)
diameter, 12mm hex
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable, front and rear caster/toe-in refers to the angle
of the suspension when viewed from the side of the car in relation
to the chassis
Bumper: Front, urethane foam
Spur Gear: 68 tooth plastic
Pinion Gear: 22 tooth steel

INCLUDES: XV-01 Pro Chassis Kit with Shocks, Shock Oil, Tires, Foam Inserts,
Wheels, Decals, Spur Gear, Pinion Gear and Instruction Manual

REQUIRES: Radio: 2-channel
Motor: 540 size
ESC: To match selected motor
Battery: 7.2V 6-cell stick pack with Standard connector
Building and track equipment

SPECS: Length: 15.1" (384mm)
Width: 7.3" (185mm)
Wheelbase: 10.1" (257mm)

COMMENTS: For replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 10x15mm Fr Diff 1 DTXC1595
2 10x15mm Rear Diff 1 DTXC1595
2 4x8mm Idler Gear Shaft 1 DTXC1511
1 4x8mm Counter Gear 1 DTXC1511
1 5x10mm Counter Gear 1 DTXC1535
2 4x8mm Middle Shaft 1 DTXC1511
4 5x8mm Steering 2 DTXC1523
2 5x10mm Front Arms 1 DTXC1535
2 5x10mm Rear Arms 1 DTXC1535
